🔧 Sierra 1500 - Mass Air Flow Sensor Replacement

The MAF sensor reads incoming air so the engine computer can control fuel delivery. On your Sierra, the sensor is mounted in the intake tract, and replacement is usually quick once the air intake duct is loosened.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Let the engine cool before working near the intake and engine cover.
• Do not touch the MAF sensor wire or sensing element with your fingers.
• Keep dirt and debris out of the open intake tube.
• Battery disconnect is not required, but you can disconnect the negative battery cable if you want extra safety.
• Use only MAF-safe electronics cleaner if cleaning the connector area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch ratchet
• Short extension
• Flat-blade trim tool
• Torx T20 screwdriver
• Needle-nose pliers
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1
• MAF sensor seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Let the engine cool fully.
• If disconnecting the battery, remove the negative cable first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

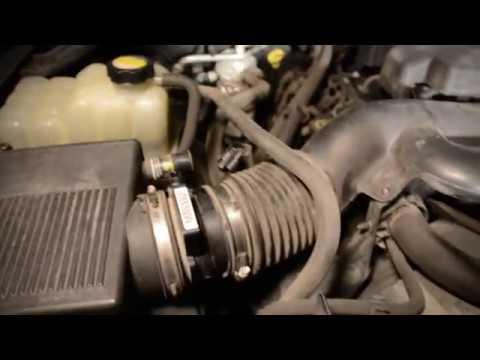

Step 1: Open the hood and locate the MAF sensor

• Find the air filter box and the intake tube that runs to the throttle body.
• The MAF sensor is mounted in the intake tract near the air box.

Step 2: Remove the intake tube as needed

• Use the 8mm socket, 1/4-inch ratchet, and short extension to loosen the intake hose clamps.
• If your air intake has a retaining clip or bracket, release it with a flat-blade trim tool.
• Lift the intake duct enough to reach the sensor connector and mounting screws.

Step 3: Disconnect the electrical connector

• Press the connector lock tab and unplug the MAF connector.
• If the connector is tight, use needle-nose pliers carefully on the release tab only.

Step 4: Remove the old MAF sensor

• Use the Torx T20 screwdriver to remove the sensor screws.
• Lift the sensor straight out so you do not damage the seal.
• Do not pry on the sensing element.

Step 5: Install the new MAF sensor

• Compare the new part to the old one before installation.
• Install the new seal if included.
• Set the sensor in place and start the screws by hand.
• Tighten the screws with the Torx T20 screwdriver to 3-4 Nm (27-35 in-lbs).

Step 6: Reconnect the intake and electrical connector

• Plug the connector back into the sensor until it clicks.
• Reinstall the intake tube and tighten the clamps with the 8mm socket.
• Torque to 5-6 Nm (44-53 in-lbs) on the hose clamps.

Step 7: Final check

• Make sure all clamps are tight and the intake tube is fully seated.
• Close the hood and start the engine.
• Check for a smooth idle and no check engine light.

---

✅ After Repair

• Let the engine idle for 1-2 minutes.
• Take a short road test and check for hesitation, rough idle, or warning lights.
• If the check engine light stays on, scan for codes and clear them after verifying the repair.
• Drive gently for the first few miles.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $120-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
