🔧 Fusion - Mass Air Flow Sensor Replacement

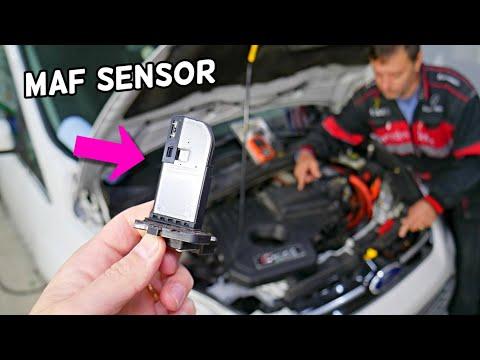

The mass air flow sensor measures the amount of air entering your Fusion’s engine so the computer can calculate the correct fuel mixture. Replacing it is a simple under-hood repair, but the sensor is delicate, so handle it carefully and avoid touching the sensing element.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the air intake tube.
• ⚠️ Turn the ignition fully off and keep the key/fob away from the vehicle.
• ⚠️ Disconnect the negative battery cable to help prevent sensor or PCM electrical faults.
• ⚠️ Do not touch the inside wire/film of the MAF sensor; it is very sensitive and can be damaged by skin oils.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch drive ratchet
• T20 Torx screwdriver
• Small flathead screwdriver
• Clean shop towel
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1
• MAF sensor O-ring or seal - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Fusion on level ground and set the parking brake.
• 🔋 Open the hood and disconnect the negative battery cable using an 8mm socket. Negative means the black cable marked “-”.
• 🧼 Keep the new sensor in its packaging until you are ready to install it.
• 📍 On your Fusion, the MAF sensor is mounted in the air intake tube near the air filter box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF Sensor

• Open the hood and find the air filter box on the driver-side/front area of the engine bay.
• Follow the large black plastic intake tube from the air filter box toward the engine.
• The MAF sensor is the small electrical sensor mounted into that intake tube with a wiring connector attached.
• Take a photo first.

Step 2: Disconnect the Battery

• Use an 8mm socket and 1/4-inch drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• No torque is needed for removal.

Step 3: Unplug the MAF Sensor Connector

• Put on safety glasses and nitrile gloves.
• Press the release tab on the MAF sensor electrical connector by hand.
• If the tab is stuck, gently use a small flathead screwdriver to help release it.
• Pull the connector straight back from the sensor. Do not pull on the wires.
• A connector is the plastic plug that carries the electrical signal to the sensor.

Step 4: Remove the Old MAF Sensor

• Use a T20 Torx screwdriver to remove the MAF sensor retaining screws.
• A Torx screwdriver has a star-shaped tip that fits Ford’s sensor screws.
• Place the screws on a clean shop towel so they do not get lost.
• Gently pull the MAF sensor straight out of the intake tube.
• If it feels stuck, wiggle it lightly by hand while pulling straight outward.

Step 5: Inspect the Sensor Opening

• Use a clean shop towel to wipe dirt from around the outside of the sensor opening.
• Do not push dirt into the intake tube.
• Check that the old O-ring or seal came out with the old sensor.
• If the old seal is stuck in the intake tube, remove it carefully by hand.

Step 6: Install the New MAF Sensor

• Confirm the new MAF sensor O-ring or seal is installed on the new sensor.
• Slide the new mass air flow sensor straight into the intake tube by hand.
• Make sure it sits flat and fully seated before installing screws.
• Use a T20 Torx screwdriver to install the retaining screws.
• Tighten the screws snugly by hand. Do not overtighten them because the intake housing is plastic.
• Torque to 2 Nm (18 in-lbs)

Step 7: Reconnect the Electrical Connector

• Push the wiring connector straight onto the new MAF sensor by hand.
• Listen or feel for the connector tab to click into place.
• Gently tug the connector body, not the wires, to confirm it is locked.

Step 8: Reconnect the Battery

• Place the negative battery cable back onto the negative battery post.
• Use an 8mm socket and 1/4-inch drive ratchet to tighten the clamp.
• Torque to 5 Nm (44 in-lbs)
• Make sure the cable does not rotate by hand after tightening.

Step 9: Start the Engine

• Start your Fusion and let it idle for 2-3 minutes.
• The idle may fluctuate briefly while the engine computer relearns airflow readings.
• Check that the air intake tube is secure and that the MAF connector is fully seated.
• Do not rev the engine immediately.

---

✅ After Repair

• ✅ Confirm the engine idles smoothly after a few minutes.
• ✅ If a check engine light was on, it may turn off after several drive cycles if the MAF fault is fixed.
• ✅ If you have a scan tool, clear stored MAF-related codes after installation.
• ✅ Take a short 10-15 minute drive with gentle acceleration so the PCM can relearn normal airflow readings.
• ✅ Recheck the sensor connector and intake tube after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $120-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
