🔧 Fuel Pump - Replacement

The fuel pump on your Rogue is inside the fuel tank assembly. This job means relieving fuel pressure, accessing the pump module, and replacing the pump assembly or module with care to prevent leaks and vapor issues.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are flammable.
• No smoking, sparks, hot lights, or open flames near the vehicle.
• Relieve fuel pressure before opening any fuel line.
• Disconnect the negative battery cable before touching the fuel system.
• Keep a fire extinguisher rated for fuel fires nearby.
• Use eye protection and gloves. Fuel can splash unexpectedly.
• Do not run the tank low and do not use power tools near the open tank.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Fuel line disconnect tool (specialty)
• Fuel pump lock ring tool (specialty)
• Trim panel removal tool
• Flat-blade screwdriver
• Torque wrench
• Drain pan
• Shop rags
• Safety glasses
• Nitrile gloves
• Battery terminal wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal - Qty: 1
• Fuel line retainer clips - Qty: 1 set
• Fuel tank access cover seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Keep the fuel tank as low as practical before starting.
• Disconnect the negative battery cable with a 10mm socket.
• Cycle the ignition OFF and remove the key/fob from the vehicle.
• Have rags ready to catch small fuel spills.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Use the fuel pump relay or fuel pump fuse to disable the system, then start the engine and let it run until it stalls.
• Crank for a few more seconds to release leftover pressure.
• Small spills happen even after pressure relief.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the terminal.
• Torque on reassembly: tighten the battery terminal snugly, approximately 5 Nm (44 in-lbs).

Step 3: Access the fuel pump module

• Use a trim panel removal tool to lift the rear seat cushion if equipped with under-seat access.
• If there is an access cover, remove the cover screws with a 10mm socket or flat-blade screwdriver as equipped.
• Clean the area around the pump opening before removing anything.

Step 4: Disconnect the electrical and fuel connections

• Use your fingers and a flat-blade screwdriver only if needed to release the connector locks.
• Use a fuel line disconnect tool (specialty) to remove the fuel supply line from the pump module.
• Expect a small amount of fuel to drip. Keep rags under the connection.

Step 5: Remove the pump module lock ring

• Use a fuel pump lock ring tool (specialty) to loosen the retaining ring.
• Lift the ring off carefully and keep dirt out of the tank opening.
• Torque on reassembly: tighten the lock ring to factory specification for the module style installed.

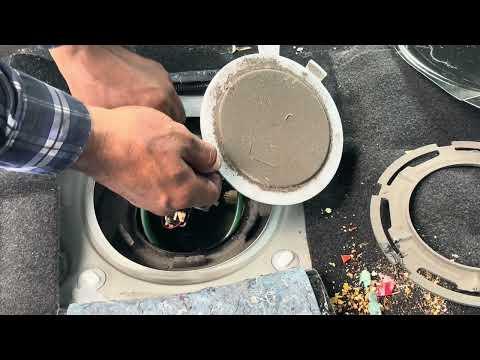

Step 6: Remove the fuel pump module

• Lift the module straight up and out slowly so the float arm does not bend.
• Drain fuel from the module into a safe container if needed.
• Remove the old seal and clean the sealing surface on the tank.

Step 7: Install the new seal and module

• Install the new fuel pump module seal in the tank opening.
• Lower the new module into position without pinching the seal.
• Make sure the module sits fully seated and aligned correctly.

Step 8: Install and torque the lock ring

• Use the fuel pump lock ring tool (specialty) to tighten the ring evenly.
• Torque to factory specification for the lock ring.
• Even pressure helps the seal seat correctly.

Step 9: Reconnect lines and wiring

• Reconnect the fuel line until it clicks fully into place.
• Reconnect the electrical connector until the lock engages.
• Inspect the line for damage before reconnecting.

Step 10: Reassemble and test

• Reinstall the access cover and rear seat parts using the 10mm socket and trim tool.
• Reconnect the negative battery cable with the 10mm socket.
• Key ON for 5 seconds, then OFF. Repeat 2-3 times to prime the system.

---

✅ After Repair

• Start the engine and let it idle.
• Check closely for fuel leaks at the pump, line, and access cover.
• Listen for abnormal pump noise.
• Take a short road test and recheck for fuel smell or warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
