🔧 Wrangler - Fuel Pump Module Replacement

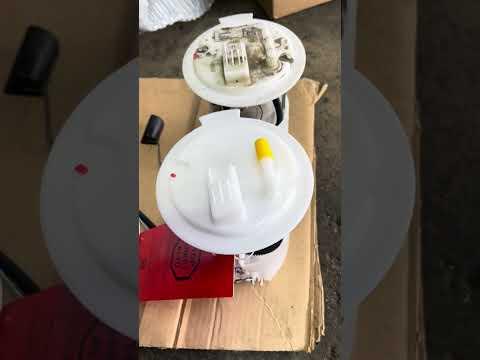

The fuel pump on your Wrangler is part of a module mounted inside the fuel tank (it also includes the fuel level sender). Replacement requires safely lowering the fuel tank, swapping the module and seal, then priming the system and checking for leaks.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: Standard JK in-tank pump module; verify torque specs if your hardware differs.

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a well-ventilated area; keep a fire extinguisher nearby.
• No smoking, sparks, or hot work lights near the tank or lines.
• Let the exhaust cool fully before starting.
• Disconnect the negative battery cable before opening the fuel system.
• Support the fuel tank with a jack before removing the skid plate bolts.
• Relieve fuel pressure before disconnecting any fuel line.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• 10mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench 10-200 ft-lbs
• Flat blade screwdriver
• Fuel line disconnect tool set 5/16" and 3/8" (specialty)
• Brass punch
• Dead-blow hammer
• Drain pan
• Shop rags
• Hand siphon pump (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel pump module lock ring - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the front wheels using wheel chocks.
• Reduce fuel level as low as possible; a lighter tank is much safer to lower.
• Disconnect the negative battery cable using a 10mm socket.
• Relieve fuel pressure: remove the fuel pump relay/fuse, start the engine, and let it stall; crank for 2-3 seconds more.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the Wrangler

• Use a floor jack (rated 3-ton minimum) to lift the rear safely.
• Set the frame onto jack stands (rated 3-ton minimum) and shake-test for stability.

Step 2: Support the fuel tank

• Place a transmission jack (specialty) under the fuel tank/skid plate.
• Raise it until it just contacts and supports the tank. Don’t lift the Jeep.

Step 3: Remove the fuel tank skid plate bolts

• Use a 15mm socket, 3/8" drive ratchet, and 3/8" drive extensions to remove the skid plate fasteners.
• Keep one bolt started loosely until you’re ready to lower, so the tank doesn’t shift suddenly.

Step 4: Lower the tank enough to access the connections

• Slowly lower the tank a few inches using the transmission jack (specialty).
• Stop as soon as you can reach the hoses and electrical connector on top/front of the tank.

Step 5: Disconnect electrical connector

• Press the lock tab and unplug the pump module connector by hand.
• If the tab is stubborn, gently assist with a flat blade screwdriver (don’t break it).

Step 6: Disconnect EVAP and fuel lines

• Place a drain pan and shop rags under the connection area.
• Use the fuel line disconnect tool set 5/16" and 3/8" (specialty) to release the quick-connect fitting(s).
• Twist the line slightly as you pull to help it release. Expect a small fuel spill.

Step 7: Lower and remove the fuel tank

• Finish removing remaining skid plate bolts using a 15mm socket.
• Lower the tank fully with the transmission jack (specialty) and slide it out from under the Jeep.

Step 8: Clean the pump module area

• Use shop rags to wipe dirt from the top of the tank around the module.
• Keeping dirt out is critical; dirt can ruin the new pump or clog injectors.

Step 9: Remove the fuel pump lock ring

• Use a brass punch and dead-blow hammer to tap the lock ring counterclockwise until it releases.
• A brass punch is softer metal that helps reduce spark risk compared to steel.

Step 10: Remove the fuel pump module

• Lift the module straight up slowly and angle it as needed to clear the float arm.
• Let fuel drain from the module into the tank before fully removing it.

Step 11: Replace the tank seal (O-ring)

• Remove the old seal by hand and wipe the sealing surface with shop rags.
• Install the new seal evenly in its groove. Don’t pinch or twist it.

Step 12: Install the new fuel pump module

• Carefully lower the new module into the tank, guiding the float arm in without forcing it.
• Align the module indexing marks with the tank marks.

Step 13: Install and tighten the lock ring

• Install the lock ring and tap it clockwise using the brass punch and dead-blow hammer until fully seated.
• Torque to 80 Nm (59 ft-lbs) if using a lock-ring tool and torque method.

Step 14: Reinstall the fuel tank

• Raise the tank into position using the transmission jack (specialty).
• Reconnect fuel line(s) and EVAP line(s) until you feel/hear a solid click.
• Reconnect the electrical connector until it locks.

Step 15: Reinstall skid plate and tighten fasteners

• Start all bolts by hand first to avoid cross-threading.
• Tighten using a 15mm socket and then final tighten with a torque wrench 10-200 ft-lbs.
• Torque to 55 Nm (41 ft-lbs) for skid plate fasteners.

Step 16: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• 🔍 Prime the fuel system: turn key to ON for 3 seconds, OFF for 5 seconds; repeat 3-4 times (do not crank).
• Start the engine and let it idle while you check under the Jeep for fuel leaks.
• Recheck for leaks after a short 5-10 minute test drive.
• If the check engine light comes on, inspect connectors/lines first; then scan for codes.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
