🔧 Forester - Fuel Cap Replacement

Replacing the fuel cap on your Forester is a very simple repair. The fuel cap seals the fuel tank system, and a worn or loose cap can cause fuel smell, vapor leaks, or a check engine light related to the EVAP system.

Difficulty Level: Beginner | Estimated Time: 5-10 minutes

---

⚠️ Safety & Precautions

• 🔥 Do not smoke or work near open flames while the fuel door is open.
• 🧯 Avoid using power tools near the fuel filler area.
• 🌬️ Work in a well-ventilated area because fuel vapors can be present.
• 🚗 Make sure your Forester is parked, turned off, and the parking brake is set.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel filler cap - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Forester on level ground and set the parking brake.
• 🔑 Turn the ignition off and keep the key away from the start button area.
• ⛽ If the check engine light is on because of the old fuel cap, it may take several drive cycles to clear after replacement.
• 📌 A drive cycle means the vehicle is driven and parked normally enough times for the engine computer to recheck the fuel vapor system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Fuel Door

• Use your hand to press the rear edge of the fuel door inward, then release it so it pops open.
• Put on safety glasses and nitrile gloves before touching the fuel cap area.
• Work slowly near fuel vapors.

Step 2: Remove the Old Fuel Cap

• Use your hand to turn the old fuel filler cap counterclockwise until it comes loose.
• Let the cap hang by its tether if it is still attached.
• The tether is the small plastic strap that keeps the cap connected to the fuel door area.

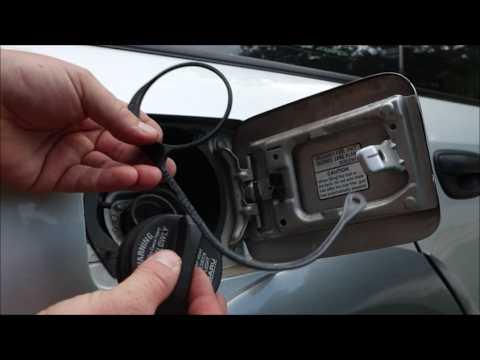

Step 3: Detach the Cap Tether

• Use your hand to unclip the old cap tether from the fuel door or filler area.
• Do not pull hard on the fuel door. The fuel door hinge can bend if forced.
• If the tether clip feels stuck, wiggle it gently by hand until it releases.

Step 4: Install the New Fuel Cap Tether

• Use your hand to attach the new fuel cap tether to the same mounting point where the old one was attached.
• Make sure the tether is not twisted or pinched.
• A straight tether lasts longer.

Step 5: Install the New Fuel Cap

• Use your hand to place the new fuel filler cap onto the fuel filler neck.
• Turn the cap clockwise until it clicks.
• Subaru-style fuel caps should be tightened until you hear at least one clear click.
• No torque spec is used for this cap; tighten by hand only.

Step 6: Close the Fuel Door

• Use your hand to close the fuel door until it sits flush with the body.
• Check that the cap tether is fully inside and not caught in the fuel door.

---

✅ After Repair

• ✅ Start your Forester and confirm there is no fuel smell around the fuel door.
• 🔍 If the check engine light was on, drive normally for a few days. The EVAP system may need several trips to retest itself.
• 🧰 If a scan tool is available, you may clear EVAP-related codes after installing the new cap.
• ⚠️ If the check engine light returns, the issue may be elsewhere in the EVAP system, such as a purge valve, vent valve, or vapor leak.

---

💰 DIY vs Shop Cost

Shop Cost: $40-$90 parts + labor

DIY Cost: $15-$35 parts only

You Save: $25-$55 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.3 hours.

---
