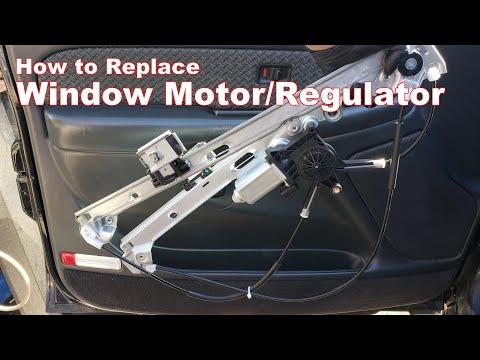

🔧 Front Window Regulator - Replacement

The front door trim panel, water shield, glass, and regulator assembly need to come out so you can swap the failed regulator. On your Sierra, the regulator is part of the power window lift mechanism inside the front door, and careful handling of the glass is the biggest part of the job.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours per front door

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door has airbag and power components.
• Support the window glass before removing the regulator. The glass can drop suddenly and break.
• Wear safety glasses and gloves. Door edges and glass clips are sharp.
• If equipped with side airbag wiring in the door, do not turn the key on with connectors unplugged.
• Work with the door fully open and on level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• Door panel trim tool
• Ratchet
• Extension bar
• Flat plastic trim tool
• Needle-nose pliers
• Torx T30 screwdriver
• Small pick tool
• Painter's tape
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1 per door
• Window regulator motor - Qty: 1 if motor is separate and being replaced
• Door panel clip set - Qty: 1 set
• Plastic vapor barrier adhesive - Qty: 1
• Window glass clip(s) - Qty: 1 set if damaged

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Lower the window glass slightly if the regulator still works enough to do so. That helps access the glass clips.
• Disconnect the negative battery cable and wait a few minutes before unplugging door connectors.
• If the window is stuck in the up position, tape the glass securely to the door frame before removing the regulator.
• Keep the glass supported at all times.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door panel

• Use the 7mm socket to remove the screws around the door pull and lower trim area.
• Use the door panel trim tool to pop the retaining clips around the perimeter of the panel.
• Lift the panel straight up to unhook it from the top window ledge.
• Disconnect the switch connector and any courtesy light connector before setting the panel aside.

Step 2: Remove the moisture barrier

• Use the flat plastic trim tool to carefully peel back the vapor barrier without tearing it.
• Keep the adhesive clean so you can reuse the barrier during reassembly.
• Do not rip the vapor barrier.

Step 3: Secure the glass

• If the glass is still movable, use the window switch briefly with the battery still connected to position the glass where the regulator bolts or clips are accessible, then disconnect the battery again.
• Use painter's tape to secure the glass to the door frame from the outside.
• If the glass is already down, support it by hand while removing the clips.

Step 4: Disconnect the glass from the regulator

• Use the 10mm socket or Torx T30 screwdriver to remove the fasteners holding the glass to the regulator carrier, depending on which style is installed.
• Carefully lift the glass upward and secure it in the fully up position with tape.
• Make sure the glass cannot slide down while you work.

Step 5: Remove the regulator and motor assembly

• Use the 10mm socket and ratchet with an extension bar to remove the regulator mounting bolts.
• Unplug the motor connector and any attached wiring clips.
• Work the regulator out through the largest door access opening. You may need to angle it carefully around the inner door structure.
• Move slowly to avoid scratching the glass.

Step 6: Install the new regulator

• Feed the new regulator into the door cavity and align it with the mounting holes.
• Use the 10mm socket to install the mounting bolts finger-tight first.
• Reconnect the motor connector and any clips.
• Torque to 8-10 Nm (71-89 in-lbs) for the regulator mounting fasteners unless your replacement kit specifies otherwise.

Step 7: Reattach the glass

• Lower the taped glass carefully into the regulator channel or align it with the carrier clips.
• Use the 10mm socket or Torx T30 screwdriver to secure the glass retainers.
• Remove the tape and slowly test that the glass sits squarely in the tracks.
• Torque to 8-10 Nm (71-89 in-lbs) for the glass fasteners if applicable.

Step 8: Test the window movement

• Reconnect the battery negative cable.
• Use the window switch to run the glass all the way down and all the way up.
• Watch for binding, popping, or crooked movement.
• If the glass binds, stop and realign the regulator before continuing.

Step 9: Reinstall the door panel

• Press the vapor barrier back into place.
• Reconnect the switch and light connectors.
• Hook the panel on the top window ledge first, then press the clips into place.
• Use the 7mm socket to reinstall the screws.
• Torque to 2-3 Nm (18-27 in-lbs) for the trim screws.

---

✅ After Repair

• Cycle the window several times to make sure it runs smoothly.
• Confirm the switch functions from both the driver and passenger controls if equipped.
• Check the door panel for rattles and make sure all clips are seated.
• Inspect the glass seal at the top of the door for proper alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per front door (parts + labor)

DIY Cost: $90-$220 per front door (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
