🔧 Ranger - Front Door Lock Actuator Replacement

The front door lock actuator is the small electric motor assembly inside the door latch that locks and unlocks the door when you use the key fob or door switch. On your Ranger, the actuator is serviced as part of the front door latch assembly, so the door panel and inner access parts need to come off to reach it.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ Keep the window fully raised while working so it does not block access inside the door.
• ⚠️ Door panels use plastic clips that can break if pulled at the wrong angle. Work slowly.
• ⚠️ The door latch has sharp stamped-metal edges nearby. Wear gloves.
• ⚠️ Do not close the door until you confirm the latch and outside handle work correctly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 8mm socket
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 socket
• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• Plastic trim removal tool set
• Panel clip removal pliers
• Pick tool
• Needle-nose pliers
• Painter’s tape
• Torque wrench, 20-100 in-lb range
• Torque wrench, 5-50 ft-lb range
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch and lock actuator assembly - Qty: 1
• Front door trim panel clips - Qty: 6-10
• Door water shield butyl sealant - Qty: 1 roll

---

📋 Before You Begin

• Park your Ranger on level ground and set the parking brake.
• Move the window fully up before turning the vehicle off.
• Open the door you are repairing and leave it open during the job.
• Use the lock switch and key fob once before disassembly so you can compare operation after repair.
• Disconnect the negative battery cable with a 10mm socket.
• Put small screws in labeled cups or bags. Door screws can look similar but be different lengths.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the Door Trim

• Use painter’s tape around the door pull trim, switch panel, and handle bezel edges.
• This helps prevent scratches while using trim tools.
• Use safety glasses and mechanic gloves before prying panels.
• Plastic trim marks easily.

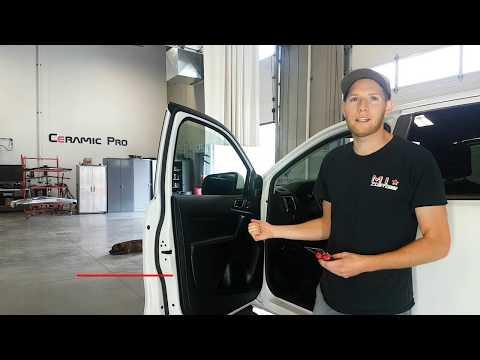

Step 2: Remove the Door Switch Panel

• Use a plastic trim removal tool set to gently pry up the power window and lock switch panel.
• Lift the panel slowly by hand once loose.
• Press the connector tab and unplug the electrical connector by hand.
• A connector tab is the small locking clip that keeps the plug from falling out.

Step 3: Remove Hidden Door Panel Screws

• Use a 7mm socket with a 1/4-inch drive ratchet to remove screws hidden behind the switch panel area.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove any screws behind small trim covers near the inside handle.
• Use a plastic trim removal tool set to pop off any small screw covers first.
• Keep screws grouped by location.

Step 4: Remove the Door Pull and Lower Panel Screws

• Use an 8mm socket or 7mm socket with a 1/4-inch drive ratchet to remove the door pull screws.
• Use a 7mm socket to remove lower door panel screws along the bottom edge if equipped.
• Do not force the panel if it still feels bolted on. Look for another covered screw.

Step 5: Release the Door Panel Clips

• Slide a plastic trim removal tool set between the door panel and metal door shell at the lower rear corner.
• Twist gently to pop the first clip free.
• Use panel clip removal pliers to release the remaining clips around the sides and bottom.
• Panel clips are plastic push fasteners that snap the trim panel to the metal door.

Step 6: Lift Off the Door Panel

• Lift the door panel straight upward by hand to unhook it from the window ledge.
• Support the panel with one hand while disconnecting cables and plugs.
• Use a pick tool to help release the inside handle cable retainer if needed.
• Disconnect any remaining electrical connectors by hand.

Step 7: Peel Back the Water Shield

• Use a plastic trim removal tool set to gently separate the water shield from the black butyl sealant.
• The water shield is the plastic moisture barrier behind the door panel.
• Peel it back only as much as needed to access the rear latch area.
• Do not tear it. Water leaks and wind noise can happen if it is not resealed.

Step 8: Disconnect the Latch Rods and Cables

• Look inside the rear edge of the door at the latch assembly.
• Use a pick tool to rotate plastic rod retainers open.
• Use needle-nose pliers to slide the rods out of their clips.
• Take a photo before removal so each rod goes back in the same place.
• Photos prevent mix-ups.

Step 9: Unplug the Door Lock Actuator Connector

• Reach through the access opening and locate the latch electrical connector.
• Press the connector lock by hand and unplug it.
• Use a pick tool gently if the connector lock is stiff.
• Do not pull on the wires.

Step 10: Remove the Latch Mounting Screws

• At the rear edge of the door, locate the three latch screws around the door latch opening.
• Use a Torx T30 socket with a 3/8-inch drive ratchet to remove the latch screws.
• Support the latch with your other hand inside the door as the last screw comes out.
• Factory threadlocker can make these screws tight. Keep the Torx bit fully seated.

Step 11: Remove the Latch and Actuator Assembly

• Work the front door latch and lock actuator assembly out through the door access opening by hand.
• Move slowly around the window track and wiring harness.
• Compare the old and new latch assemblies before installing.
• Make sure the connector shape, latch position, and rod/cable attachment points match.

Step 12: Install the New Latch Assembly

• Guide the new latch assembly into the door by hand.
• Align it with the rear door edge mounting holes.
• Start all three latch screws by hand first.
• Use a Torx T30 socket and torque wrench, 20-100 in-lb range to tighten the latch screws to Torque to 10 Nm (89 in-lbs).

Step 13: Reconnect Rods, Cables, and Connector

• Use needle-nose pliers to place each latch rod back into its correct hole.
• Use a pick tool to rotate the plastic retainers closed until they snap.
• Reconnect the electrical connector by hand until it clicks.
• Make sure rods move freely without rubbing the door shell.

Step 14: Test Before Reinstalling the Panel

• Reconnect the negative battery cable temporarily using a 10mm socket.
• Use the key fob and door lock switch to test lock and unlock operation.
• Use a screwdriver handle to gently click the latch closed while the door is open.
• Pull the inside and outside handles to confirm the latch releases.
• Use the 10mm socket to disconnect the negative battery cable again before final reassembly.
• Do not shut the door until the latch release is confirmed.

Step 15: Reseal the Water Shield

• Press the water shield back onto the original butyl sealant by hand.
• If the sealant is stretched, dirty, or missing, apply door water shield butyl sealant.
• Use a plastic trim removal tool set to press the edges flat without tearing the shield.
• A poor seal can let rainwater reach the carpet.

Step 16: Reinstall the Door Panel

• Reconnect the inside handle cable by hand.
• Reconnect all electrical connectors by hand.
• Hang the door panel over the upper window ledge.
• Line up the clips with the holes in the door shell.
• Press around the panel edges by hand to snap the clips in place.
• Replace broken clips with front door trim panel clips.

Step 17: Reinstall Screws and Switch Panel

• Use a 7mm socket and 1/4-inch drive ratchet to reinstall the lower and hidden screws.
• Use an 8mm socket if your door pull screws are 8mm.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to reinstall handle-area screws.
• Use a torque wrench, 20-100 in-lb range to snug small door trim screws to Torque to 2-3 Nm (18-27 in-lbs).
• Plug in the switch panel by hand and press it down until it snaps into place.

Step 18: Reconnect Battery for Final Test

• Reconnect the negative battery cable with a 10mm socket.
• Use a torque wrench, 5-50 ft-lb range to tighten the battery terminal to Torque to 6 Nm (53 in-lbs).
• Remove the painter’s tape.
• Test the lock switch, key fob, inside handle, outside handle, and manual lock lever.

---

✅ After Repair

• Confirm the repaired front door locks and unlocks from the key fob.
• Confirm the repaired front door locks and unlocks from the interior switch.
• Open and close the door several times to verify smooth latch operation.
• Check that the door ajar warning turns off when the door is closed.
• Verify the window switch and mirror switch still work if they were disconnected.
• If one-touch window operation needs reset, hold the window switch down until fully open, then hold it up until fully closed and continue holding for 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
