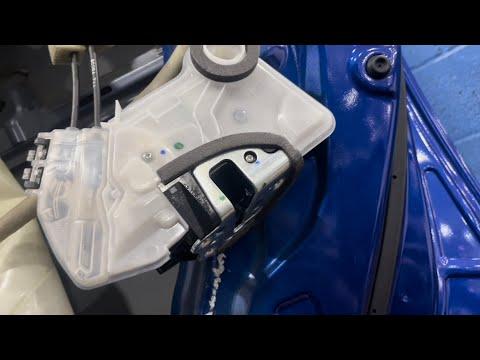

🔧 Door Lock Actuator - Front Door Replacement

The front door lock actuator is built into the door latch assembly. When it fails, the door may not lock, unlock, or respond to the key fob or inside switch. This job requires removing the interior door panel and swapping the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door has wiring for the side airbag, window switch, and lock system.
• Wait at least 3 minutes after disconnecting the battery before unplugging airbag-related connectors.
• Use care around the side curtain airbag area inside the door trim.
• Do not pry aggressively on plastic clips. The door panel can crack easily.
• Keep the window glass fully up during the repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Phillips screwdriver
• Plastic trim removal tool
• Small flat-blade screwdriver
• Ratchet
• Extension
• Torque wrench
• Needle-nose pliers
• Panel clip tool
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator / latch assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door handle bezel clip - Qty: 1 if damaged
• Vapor barrier adhesive tape - Qty: 1 roll if needed

---

📋 Before You Begin

• Park on level ground and keep the window fully raised.
• Turn the ignition off and remove the key or fob from the vehicle.
• Disconnect the negative battery terminal with a 10mm socket.
• Wait at least 3 minutes before unplugging any airbag-related connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior trim pieces

• Use a plastic trim removal tool to pry off the small trim cover behind the inside door handle.
• Use a Phillips screwdriver to remove the screw behind that cover.
• Use a plastic trim removal tool to remove the switch panel from the armrest.
• Disconnect the switch connector by pressing the tab and pulling gently.
• Remove any remaining visible screws in the door panel with a Phillips screwdriver.

Step 2: Remove the door panel

• Use a panel clip tool or plastic trim removal tool to release the door panel clips around the edges.
• Lift the panel straight up to unhook it from the window ledge.
• Disconnect the courtesy light, speaker, and any remaining harnesses.
• Set the panel aside on a soft surface.

Step 3: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier away from the door shell.
• Use a small flat-blade screwdriver only if needed to lift the edge of the adhesive.
• Keep the barrier clean so it can be reused.

Step 4: Disconnect the actuator and latch linkages

• Use needle-nose pliers to release the rod clips and linkage retainers.
• Disconnect the electrical connector from the latch/actuator assembly.
• Note the position of each rod so reassembly is easy.

Step 5: Remove the old actuator/latch assembly

• Use a 10mm socket, ratchet, and extension to remove the latch mounting bolts on the door edge.
• Remove the exterior handle linkage if it blocks access.
• Slide the latch/actuator assembly out through the access opening in the door.
• Take a photo before removing the rods.

Step 6: Install the new actuator/latch assembly

• Position the new latch/actuator assembly inside the door.
• Reconnect all rods and clips exactly as removed.
• Reconnect the electrical connector until it clicks.
• Install the mounting bolts with a 10mm socket.
• Torque the door latch bolts to 9 Nm (80 in-lbs).

Step 7: Test the latch before reassembly

• Reconnect the battery temporarily if needed to test operation.
• Use the key fob, inside lock switch, and door handle to check lock and unlock function.
• Make sure the door opens and closes correctly before reinstalling the panel.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Use vapor barrier adhesive tape if the old adhesive no longer sticks.
• Reconnect all electrical connectors to the door panel.
• Hook the top of the panel over the window ledge, then press in the clips.
• Reinstall the screws with a Phillips screwdriver.
• Reinstall the trim covers.

Step 9: Reconnect battery and final test

• Reconnect the negative battery cable with a 10mm socket.
• Test the lock actuator with the key fob, door switch, and inside handle.
• Check that the window switch, speaker, and courtesy light still work.

---

✅ After Repair

• Lock and unlock the door at least 10 times to confirm consistent operation.
• Make sure the door closes fully and the latch holds securely.
• Check for any rattles from loose clips or missed screws.
• If the actuator still does not work, scan for door module or wiring faults.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
