🔧 F-150 - Front Door Lock Actuator Replacement

The front door lock actuator is the small electric motor/latch unit inside the door that locks and unlocks the door when you use the key fob, switch, or keypad. On your F-150, the actuator is part of the front door latch assembly, so the latch/actuator assembly is replaced as one unit.

This job requires removing the inner door panel, peeling back the water shield carefully, disconnecting the rods/cables, and replacing the latch assembly inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging the door latch electrical connector.
• ⚠️ The front door contains sharp stamped metal edges. Wear gloves and work slowly.
• ⚠️ Do not tear the plastic water shield. It keeps rainwater away from the cabin side of the door.
• ⚠️ Keep the window fully raised while working so your hands have more room inside the door.
• ⚠️ If your F-150 has memory mirrors or extra door electronics, disconnect connectors gently and never pull by the wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 8mm socket
• Ratchet handle
• Short extension 3-inch
• Torx T27 screwdriver
• Torx T30 screwdriver
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool set
• Torque wrench rated to 100 in-lbs
• Painter’s tape 1-inch
• Work light
• Safety glasses
• Cut-resistant gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch and lock actuator assembly - Qty: 1
• Door trim panel retaining clips - Qty: 6-10
• Butyl water shield sealant strip - Qty: 1

---

📋 Before You Begin

• Park your F-150 on level ground and set the parking brake.
• Roll the window fully up before starting.
• Unlock the door and leave it open during the repair.
• Use painter’s tape 1-inch along the painted edge of the door near the latch area to help prevent scratches.
• Disconnect the negative battery cable using a 10mm socket.
• Place screws and clips in order as you remove them. A door panel has several hidden fasteners, which are screws or clips that hold parts together.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Door Handle Trim Covers

• Use a plastic trim removal tool set to gently pry off the small trim cover behind the inside door pull handle.
• Use a plastic trim removal tool set to remove the cover inside the armrest pull pocket.
• Use a small flat-blade screwdriver only if needed, and wrap the tip with tape to avoid scratches.
• Work from the edges slowly.

Step 2: Remove the Door Panel Screws

• Use a 7mm socket with a ratchet handle to remove the small screws along the lower door panel, if equipped.
• Use an 8mm socket with a ratchet handle to remove the screws in the pull handle/armrest area.
• Use a 10mm socket with a short extension 3-inch to remove the larger hidden bolt behind the trim cover, if equipped.
• Set the fasteners aside in order.

Step 3: Release the Door Panel Clips

• Slide a plastic trim removal tool set between the door panel and the metal door shell.
• Pry outward gently around the bottom and sides to release the retaining clips.
• A retaining clip is a plastic push fastener that snaps the panel to the door.
• Once the clips are loose, lift the panel straight upward to unhook it from the window ledge.

Step 4: Disconnect Door Panel Wiring and Cables

• Support the door panel with one hand so it does not hang by the wires.
• Use a small flat-blade screwdriver or pick tool set to press the locking tabs on the electrical connectors.
• Disconnect the window switch, lock switch, mirror switch, courtesy light, and speaker connectors as equipped.
• Use needle-nose pliers to release the interior door handle cable from the handle lever if it is attached to the panel.
• Place the door panel on a clean blanket or cardboard.

Step 5: Remove or Loosen the Water Shield

• Use a plastic trim removal tool set to slowly peel the plastic water shield away from the butyl sealant near the rear half of the door.
• Butyl sealant is sticky black rubber that seals the plastic sheet to the metal door.
• Do not cut the water shield unless absolutely necessary.
• Use painter’s tape 1-inch to hold the shield out of your work area.

Step 6: Disconnect the Latch Electrical Connector

• Use a work light to look inside the rear edge of the door.
• Locate the electrical connector on the front door latch and actuator assembly.
• Use a small flat-blade screwdriver or pick tool set to unlock the connector tab.
• Pull the connector straight off by the plastic body, not by the wires.

Step 7: Disconnect the Lock Rods or Cables

• Use a work light to identify the inside handle cable, lock cable, and outside handle rod/cable connected to the latch.
• Use needle-nose pliers and a pick tool set to rotate any plastic retainer clips away from the rods.
• Lift the rods/cables out of the latch levers carefully.
• Take a photo before removal so you can match the routing during reassembly.
• Photos prevent mix-ups.

Step 8: Remove the Front Door Latch Screws

• Move to the rear edge of the front door where the latch catches the striker.
• Use a Torx T27 screwdriver or Torx T30 screwdriver to remove the three latch mounting screws, depending on screw head size.
• Hold the latch inside the door with your other hand while removing the last screw.
• Do not drop the latch into the bottom of the door.

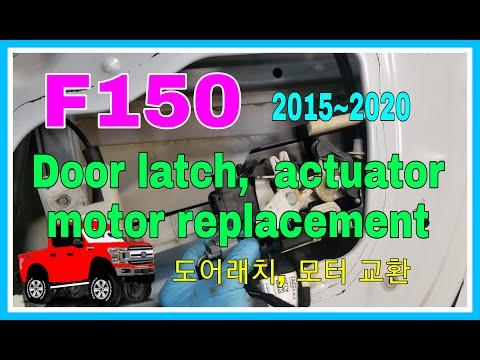

Step 9: Remove the Latch and Actuator Assembly

• Guide the front door latch and lock actuator assembly out through the access opening in the door.
• Use a plastic trim removal tool set to move the water shield gently if it is in the way.
• Compare the old and new latch assemblies before installing.
• Make sure connector shape, latch position, and cable attachment points match.

Step 10: Install the New Latch and Actuator Assembly

• Place the new front door latch and lock actuator assembly into the door through the access opening.
• Align it with the holes at the rear edge of the door.
• Start the three latch screws by hand first.
• Use a Torx T27 screwdriver or Torx T30 screwdriver to snug the screws evenly.
• Use a torque wrench rated to 100 in-lbs to tighten the latch screws to Torque to 9 Nm (80 in-lbs).

Step 11: Reconnect Rods, Cables, and Connector

• Use needle-nose pliers to install the rods/cables into the same latch levers shown in your photo.
• Snap each plastic retainer fully closed by hand.
• Plug the latch electrical connector in until it clicks.
• Use a work light to confirm no rod, cable, or wire is trapped.

Step 12: Test Before Reinstalling the Door Panel

• Reconnect the negative battery cable using a 10mm socket.
• Keep the door open and use a screwdriver shaft to rotate the latch into the “closed” position.
• Use the key fob, inside lock switch, and outside handle to test lock/unlock and release operation.
• Use the inside handle to confirm the latch releases correctly.
• After testing, use the handle to return the latch to the open position before closing the door.
• Do not slam the door during testing.

Step 13: Reseal the Water Shield

• Disconnect the negative battery cable again using a 10mm socket before reconnecting door panel wiring.
• Press the water shield back onto the original butyl sealant by hand.
• If the sealant no longer sticks, apply butyl water shield sealant strip along the loose edge.
• Use a plastic trim removal tool set to tuck the shield flat against the door.

Step 14: Reinstall the Door Panel

• Reconnect the window switch, lock switch, mirror switch, courtesy light, and speaker connectors by hand.
• Reconnect the interior handle cable using needle-nose pliers if removed.
• Hang the top of the door panel over the window ledge.
• Line up the retaining clips with the holes in the metal door.
• Press around the edges by hand until the clips snap in.

Step 15: Reinstall Screws and Trim Covers

• Use an 8mm socket with a ratchet handle to reinstall the armrest/pull handle screws.
• Use a 10mm socket with a short extension 3-inch to reinstall the larger hidden bolt if equipped.
• Use a 7mm socket with a ratchet handle to reinstall lower panel screws if equipped.
• Use a torque wrench rated to 100 in-lbs to tighten small door panel screws snugly to about Torque to 2-3 Nm (18-27 in-lbs).
• Snap the trim covers back into place by hand.

Step 16: Final Battery Reconnect

• Reconnect the negative battery cable using a 10mm socket.
• Tighten the terminal until it is snug. Do not overtighten it.

---

✅ After Repair

• Test the door lock using the key fob, keypad, inside switch, and manual lock knob.
• Open and close the door several times from inside and outside.
• Confirm the window, mirror, speaker, courtesy light, memory buttons, and lock switch all work.
• Check the door panel edges to make sure all clips are seated.
• If the door does not lock/unlock correctly, remove the panel again and inspect rod/cable routing before forcing anything.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
