🔧 Tacoma - Front Door Lock Actuator Replacement

This repair replaces the front door lock actuator inside the door. On your Tacoma, the actuator is part of the latch assembly, which is the mechanism that latches, locks, and unlocks the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring.
• ⚠️ Wait at least 90 seconds after battery disconnect before working on electrical connectors.
• ⚠️ Keep the window fully raised during the repair.
• ⚠️ Wear gloves because the inside of the door has sharp metal edges.
• ⚠️ Test the latch with the door open before closing the door fully.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• 6-inch socket extension
• Phillips #2 screwdriver
• Torx T30 socket
• Trim removal tool set
• Small flathead screwdriver
• Needle-nose pliers
• Pick tool set
• Painter’s tape
• Shop towels
• Torque wrench rated 5-30 Nm
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: As needed
• Butyl sealant strip - Qty: 1 roll

---

📋 Before You Begin

• 🅿️ Park your Tacoma on level ground and set the parking brake.
• 🪟 Raise the front window fully.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• ⏱️ Wait at least 90 seconds before unplugging door connectors.
• 🧰 A trim removal tool is a plastic pry tool that helps remove panels without scratching them.
• 🧰 Butyl sealant is sticky black sealing tape used to reseal the plastic moisture barrier inside the door.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the Door

• Use painter’s tape along the painted door edge near the panel.
• Use shop towels on the sill area to prevent scratches.
• Put on safety glasses and work gloves.
• Take photos as you go.

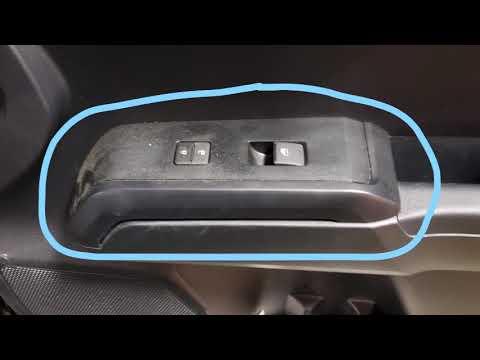

Step 2: Remove the Switch Panel

• Use the trim removal tool set to gently pry up the front door power window switch panel.
• Use a small flathead screwdriver to press the connector lock tab.
• Unplug the switch connector by pulling on the connector body, not the wires.

Step 3: Remove the Door Panel Screws

• Use a small flathead screwdriver to open the small cover behind the inside door handle.
• Use a Phillips #2 screwdriver to remove the screw behind the inside door handle.
• Use a small flathead screwdriver to open the cover in the armrest pull cup.
• Use a Phillips #2 screwdriver to remove the screw in the armrest pull cup.

Step 4: Remove the Door Trim Panel

• Use the trim removal tool set at the lower rear corner of the door panel.
• Pry outward gently until the first clip releases.
• Continue around the lower and side edges until all clips release.
• Lift the panel straight upward to unhook it from the window ledge.
• Do not pull the panel away quickly because cables are still attached.

Step 5: Disconnect the Inside Handle Cables

• Use needle-nose pliers to rotate the plastic cable retainers out of the handle bracket.
• Lift the cable ends out of the handle levers by hand.
• Set the door panel on a clean shop towel.

Step 6: Peel Back the Moisture Barrier

• Use the trim removal tool set to slowly separate the plastic moisture barrier from the butyl sealant.
• Peel back only enough to reach the rear latch area inside the door.
• Use shop towels to control the sticky sealant.
• Do not tear the barrier because it keeps water out of the cabin.

Step 7: Unplug the Actuator Connector

• Find the latch/actuator assembly at the rear edge of the door.
• Use a small flathead screwdriver to press the connector lock tab.
• Pull the connector straight out from the actuator.

Step 8: Disconnect the Rods and Cables

• Use the pick tool set to open the plastic rod retaining clips.
• Use needle-nose pliers to lift the metal rods out of the clips.
• If a cable is attached to the latch, use needle-nose pliers to rotate the cable housing out of its bracket.
• Mark the rod positions with painter’s tape if needed.
• Do not bend the rods.

Step 9: Remove the Latch/Actuator Assembly

• Open the door wide.
• Look at the rear edge of the door where the latch grabs the striker.
• Use a Torx T30 socket with a ratchet handle to remove the three latch mounting screws.
• Support the latch with your hand as the last screw comes out.
• Guide the latch/actuator assembly out through the door access opening.

Step 10: Compare and Transfer Small Parts

• Place the old and new actuator/latch assemblies side by side.
• Use a Phillips #2 screwdriver, Torx T30 socket, pick tool set, or needle-nose pliers to transfer any brackets, clips, or levers not included on the new part.
• Make sure each clip snaps fully into place.

Step 11: Install the New Actuator/Latch Assembly

• Use your hand to guide the new actuator/latch assembly into the door.
• Align it with the latch opening at the rear edge of the door.
• Start the three latch screws by hand.
• Use a Torx T30 socket and torque wrench to tighten the latch screws to Torque to 5.5 Nm (49 in-lbs).

Step 12: Reconnect Rods, Cables, and Wiring

• Use needle-nose pliers to place each rod back into its original plastic clip.
• Snap each plastic clip closed by hand.
• Reconnect any latch cable by seating the cable end first, then rotating the cable housing into the bracket.
• Plug in the actuator electrical connector until it clicks.

Step 13: Test Before Closing the Door

• Keep the door open.
• Use a Phillips #2 screwdriver to gently rotate the latch claw closed.
• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Use the key fob and inside lock switch to test lock and unlock operation.
• Pull the inside and outside handles to confirm the latch releases.
• Use the 10mm socket to disconnect the negative battery cable again before reassembly.

Step 14: Reseal the Moisture Barrier

• Press the moisture barrier back into the original butyl sealant by hand.
• Add fresh butyl sealant strip anywhere the seal is loose or damaged.
• Use shop towels to press the seal flat around the access opening.

Step 15: Reinstall the Door Panel

• Reconnect the inside handle cables by hand.
• Plug in any door panel connectors until they click.
• Hang the door panel on the upper window ledge.
• Align the panel clips with the door holes.
• Press around the edges by hand until all clips snap in.

Step 16: Reinstall Screws and Covers

• Use a Phillips #2 screwdriver to reinstall the screw behind the inside door handle.
• Use a Phillips #2 screwdriver to reinstall the screw in the armrest pull cup.
• Snap both screw covers back into place by hand.
• Reconnect the power window switch connector.
• Press the switch panel down until it clicks into place.

Step 17: Reconnect the Battery

• Use a 10mm socket and ratchet handle to reconnect the negative battery cable.
• Use a torque wrench if available and tighten the terminal nut to Torque to 5.4 Nm (48 in-lbs).

---

✅ After Repair

• ✅ Test lock and unlock using the key fob, inside switch, manual lock knob, and key cylinder if equipped.
• ✅ Test the inside and outside door handles several times.
• ✅ Confirm the door closes smoothly and opens normally.
• ✅ Test the power window switch.
• ✅ If the auto window function needs reset, fully lower the window, then fully raise it and hold the switch up for 2 seconds.
• ✅ Listen for rattles. A rattle usually means a clip, rod, or cable is loose.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per door

DIY Cost: $80-$250 per door

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
