Assumption: Your Colorado uses the common clip/screw airbox with an 8mm hose clamp on the intake tube; hardware can vary slightly.

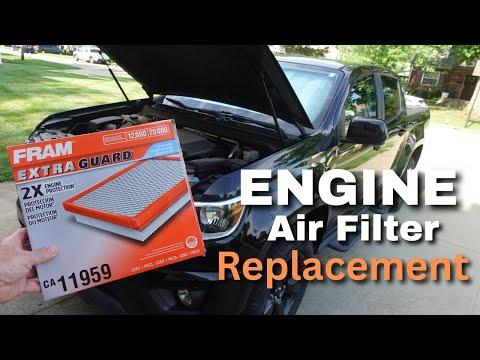

🔧 Colorado - Engine Air Filter Replacement

Replacing the engine air filter keeps dirt out of the engine and helps it breathe properly. This is a quick under-hood job: open the airbox, swap the filter, and re-seal everything so no unfiltered air can sneak in.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Keep fingers, tools, and clothing away from the cooling fan and belts.
• ⚠️ Do not run the engine with the airbox open; dirt can be sucked in.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 8mm socket
• 1/4" drive ratchet
• 6" socket extension
• Flat-blade screwdriver
• Flashlight
• Clean shop towels
• Shop vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and shift to neutral; set the parking brake.
• Open the hood and let the engine bay cool down if it was running.
• Have a shop towel ready so nothing falls into the intake tube.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the air filter housing (airbox)

• Use a flashlight and find the large black plastic box with an intake tube running from it toward the engine.
• The “airbox” is the filter’s container; it must seal tight so only filtered air enters.

Step 2: Loosen the intake tube clamp (if it blocks the lid)

• Use an 8mm socket with a 1/4" drive ratchet (or a flat-blade screwdriver) to loosen the hose clamp at the airbox outlet.
• Loosen it enough to let the tube wiggle; you usually don’t need to remove the clamp.

Step 3: Unlatch/unscrew the airbox lid

• Release the metal/plastic latches by hand, or remove any lid screws using an 8mm socket, 1/4" drive ratchet, and 6" socket extension.
• Lift the lid straight up just enough to access the filter.
• Tip: Don’t yank—plastic tabs can crack.

Step 4: Remove the old air filter

• Pull the filter straight out.
• Use a shop towel to cover the open intake area while you work, so nothing drops in.

Step 5: Clean the airbox

• Use a shop vacuum to gently vacuum out leaves/sand inside the lower airbox.
• Wipe the sealing surface with clean shop towels so the new filter can seal.
• Do not vacuum past the intake tube opening.

Step 6: Install the new air filter (correct direction + seal)

• Place the new filter into the airbox the same way the old one came out.
• Make sure the rubber edge (seal) sits flat all the way around—no pinches or corners folded.

Step 7: Reassemble the airbox and intake tube

• Lower the lid back into place and make sure it sits evenly.
• Re-latch the clips by hand, or reinstall screws using an 8mm socket and 1/4" drive ratchet to Torque to 3 Nm (27 in-lbs).
• Re-seat the intake tube and tighten the clamp using an 8mm socket or flat-blade screwdriver to Torque to 4 Nm (35 in-lbs).
• Tip: Tighten “snug,” not “gorilla tight.”

---

✅ After Repair

• Start the engine and let it idle for 20–30 seconds.
• Listen for a hissing/whistling sound (often means an airbox lid or clamp isn’t sealed).
• Do a quick visual check that the lid is fully latched and the intake tube clamp is tight.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$105 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.5 hours.

---
