🔧 Fusion - Engine Air Filter Replacement

Replacing the engine air filter helps your Fusion breathe properly and can improve drivability, fuel economy, and engine performance. This is a beginner-friendly job: you’ll open the air filter box, swap the filter, and make sure the box seals correctly.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Park on a level surface, shift to Park, and set the parking brake.
• ⚠️ Turn the vehicle fully off and keep the key/fob away from the cabin so the engine cannot start unexpectedly.
• ⚠️ Do not disconnect high-voltage hybrid components. This repair does not require touching the hybrid battery system.
• ⚠️ Avoid dropping dirt or debris into the open air intake tube.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch drive ratchet
• Flathead screwdriver
• Shop vacuum
• Clean microfiber towel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Fusion on level ground and open the hood.
• 🔌 Make sure the ignition is completely off. The instrument cluster should be dark.
• 🧤 Put on nitrile gloves and safety glasses.
• 📦 Compare the new engine air filter to the old one before installing it. The shape and sealing edge should match.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the air filter box

• Open the hood and stand at the front of your Fusion.
• Find the black plastic air filter box on the driver-side/front area of the engine bay, connected to a large black intake tube.
• The intake tube is the wide plastic hose that carries filtered air toward the engine.

Step 2: Loosen the air box fasteners

• Use an 8mm socket and 1/4-inch drive ratchet to loosen the air filter housing screws.
• These screws are usually retained in the cover, meaning they stay attached and do not fully come out.
• If a clip or tab is present, use a flathead screwdriver gently to release it.
• Do not force plastic clips.

Step 3: Lift the air box cover

• Use your hands to carefully lift the air filter box cover upward just enough to access the filter.
• Do not pull hard on the attached intake tube or wiring nearby.
• If the cover feels stuck, recheck the screws with the 8mm socket.

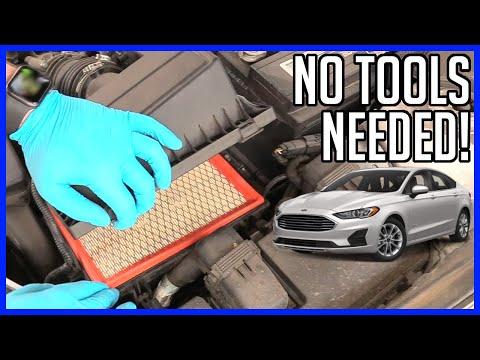

Step 4: Remove the old engine air filter

• Use your hands to lift the old air filter straight out of the lower air box.
• Notice how the rubber sealing edge sits in the box. The new filter must sit the same way.
• Do not shake dirt into the open air box.

Step 5: Clean the air box

• Use a shop vacuum to remove leaves, sand, or loose debris from the lower air box.
• Use a clean microfiber towel to wipe the sealing surface where the filter sits.
• Do not push dirt into the intake opening.
• A clean seal prevents unfiltered air leaks.

Step 6: Install the new engine air filter

• Use your hands to place the new engine air filter into the lower air box.
• Make sure the rubber edge is fully seated all the way around.
• The filter should sit flat without bending or pinching.

Step 7: Reinstall the air box cover

• Use your hands to lower the air box cover onto the new filter.
• Make sure no part of the filter seal is sticking out between the cover and lower box.
• Align all tabs before tightening the screws.

Step 8: Tighten the air box screws

• Use the 8mm socket and 1/4-inch drive ratchet to snug the air box screws evenly.
• Tighten only until the cover is seated. These are small plastic housing screws and should not be overtightened.
• Torque to snug only, approximately 2-3 Nm (18-27 in-lbs)
• Stop when the cover stops moving.

Step 9: Final visual check

• Use your hands to gently wiggle the air box cover and intake tube.
• Confirm the cover is closed evenly on all sides.
• Confirm no tools, towels, or packaging are left in the engine bay.

---

✅ After Repair

• ✅ Start your Fusion and let it idle for about 30 seconds.
• 👂 Listen for a loud hissing noise near the air box. A hiss can mean the cover is not sealed correctly.
• 🔍 If the engine runs rough or the check engine light comes on, turn the vehicle off and recheck the air box cover and intake tube connection.
• 🗓️ Replace the engine air filter again at the maintenance interval, or sooner if driving in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
