🔧 1500 - Engine Air Filter Replacement

Replacing the engine air filter helps your 1500 breathe clean air, which supports good fuel economy, throttle response, and engine protection. This is a simple beginner-friendly job on the 5.7L V8 and does not require disconnecting the battery.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine off and cool so you do not touch hot engine parts.
• ⚠️ Keep loose clothing, jewelry, and hands away from the engine fan area.
• ⚠️ Do not start the engine while the air filter or air box cover is removed.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Shop vacuum with crevice nozzle
• Clean microfiber towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine air filter - Qty: 1

---

📋 Before You Begin

• Park your 1500 on level ground and shift the transmission into Park.
• Set the parking brake.
• Turn the ignition fully off and remove the key fob from the cabin area.
• Open the hood and make sure it is securely supported.
• The engine air filter sits inside the black plastic air box on the passenger side of the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood

• Use your hand to pull the hood release inside the cabin.
• Use your fingers to release the safety latch at the front of the hood.
• Raise the hood fully and confirm it is safely supported.

Step 2: Find the Air Filter Housing

• Use your eyes to locate the black plastic air box on the passenger side of the engine bay.
• The large intake tube runs from the air box toward the engine throttle body.
• Tip: Follow the big black tube.

Step 3: Release the Air Box Cover Clips

• Use your fingers to unclip the metal spring clips holding the air box cover closed.
• A spring clip is a small metal latch that snaps the plastic cover tight without screws.
• Flip each clip away from the cover until it is fully released.

Step 4: Lift the Air Box Cover

• Use both hands to gently lift the air box cover upward.
• Do not pull hard on the intake tube or wiring nearby.
• You only need enough room to slide the old filter out.

Step 5: Remove the Old Air Filter

• Use your hands to lift the old engine air filter straight out of the lower air box.
• Pay attention to how the filter sits in the box so the new one goes in the same way.
• Check the old filter for dirt, leaves, oil, or rodent debris.

Step 6: Clean the Lower Air Box

• Use a shop vacuum with crevice nozzle to remove loose dirt, leaves, and debris from the bottom of the air box.
• Use a clean microfiber towel to wipe the sealing surface where the filter sits.
• Do not let debris fall into the intake tube.
• Tip: Keep the intake opening clean.

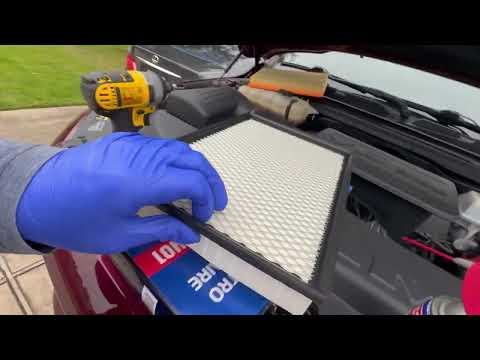

Step 7: Install the New Engine Air Filter

• Use your hands to place the new engine air filter into the lower air box.
• Make sure the rubber edge sits flat all the way around.
• The filter must not be folded, tilted, or pinched.

Step 8: Refit the Air Box Cover

• Use both hands to lower the air box cover back into place.
• Make sure the cover aligns evenly with the lower air box.
• Check that no part of the filter seal is sticking out.

Step 9: Lock the Air Box Clips

• Use your fingers to snap each metal spring clip back onto the air box cover.
• Each clip should feel firm and secure when locked.
• No torque spec applies because this air box uses clips, not bolts.

Step 10: Final Visual Check

• Use your eyes and hands to confirm the air box cover is fully seated.
• Make sure the intake tube is still connected and not pulled loose.
• Remove all tools and towels from the engine bay before closing the hood.

---

✅ After Repair

• Start your 1500 and let it idle for 30-60 seconds.
• Listen for any loud hissing or whistling from the air box area.
• If you hear a leak, turn the engine off and recheck that the cover and filter are seated correctly.
• No scan tool reset or infotainment reset is required.
• Replace the engine air filter at the factory maintenance interval, or sooner in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 USD equivalent (parts + labor)

DIY Cost: $20-$45 USD equivalent (parts only)

You Save: $40-$75 USD equivalent by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
