🔧 F-150 - Cabin Air Filter Replacement

Your F-150 uses a cabin air filter behind the glove box area. Replacing it helps improve airflow from the vents and keeps dust, pollen, and debris out of the HVAC system.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF before working around the glove box.
• ⚠️ Do not force the glove box stops or filter door; the plastic tabs can break.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Small flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park your F-150 on level ground.
• Shift to Park and set the parking brake.
• Turn the ignition OFF.
• Remove anything stored in the glove box so it does not fall out.
• A cabin air filter traps dust and pollen before air enters the cabin vents.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and Empty the Glove Box

• Use your hands to open the glove box fully.
• Remove all items from the glove box.
• Use a flashlight to look at both sides of the glove box opening.

Step 2: Release the Glove Box Stops

• Use your hands to gently squeeze both sides of the glove box inward.
• The glove box stops are the small plastic bumpers that keep the glove box from dropping too far.
• While squeezing inward, let the glove box rotate downward slowly.
• If a side is tight, use a small flathead screwdriver carefully to help guide the stop past the dash opening.
• Go slow to avoid cracking plastic.

Step 3: Locate the Cabin Filter Access Door

• Use a flashlight to look behind the lowered glove box.
• Find the rectangular cabin filter access door on the HVAC housing.
• The HVAC housing is the black plastic box that routes air for heat and A/C.

Step 4: Remove the Filter Door

• Use your fingers to press the retaining tabs on the cabin filter door.
• If the tabs are stiff, use a small flathead screwdriver gently to release them.
• Pull the access door straight off and set it aside.

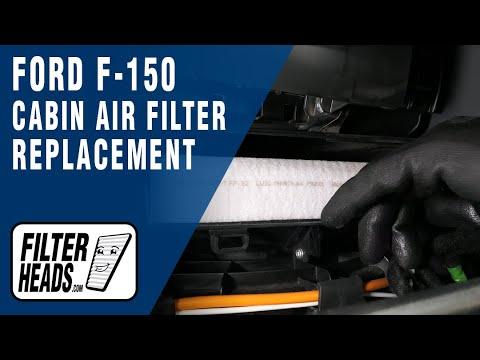

Step 5: Remove the Old Cabin Air Filter

• Use your fingers to slide the old cabin air filter straight out.
• Watch the airflow arrow on the old filter before removing it fully.
• If debris falls out, use gloved hands to remove leaves or dust from the opening.
• Do not use compressed air inside the HVAC box; it can spread dust into the cabin.

Step 6: Install the New Cabin Air Filter

• Use your hands to slide the new cabin air filter into the slot.
• Install it with the airflow arrow pointing the same direction as the original filter.
• Make sure the filter sits flat and does not fold or bunch up.
• A bent filter may whistle.

Step 7: Reinstall the Filter Door

• Use your hands to position the cabin filter access door over the opening.
• Press the door until the retaining tabs click into place.
• Lightly tug the door by hand to confirm it is secure.

Step 8: Raise and Secure the Glove Box

• Use your hands to lift the glove box back into position.
• Squeeze the glove box sides inward slightly so the stops pass the dash opening.
• Release the glove box once the stops are above the opening.
• Open and close the glove box once to make sure it moves normally.

---

✅ After Repair

• Start your F-150 and turn the blower fan on low, then high.
• Check that airflow comes from the vents normally.
• Listen for rattles or whistling from behind the glove box.
• If airflow is weak or noisy, turn the ignition OFF and recheck that the filter is seated flat.
• Replace the cabin air filter about every 15,000-20,000 miles, or sooner in dusty areas.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 parts + labor

DIY Cost: $15-$35 parts only

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
