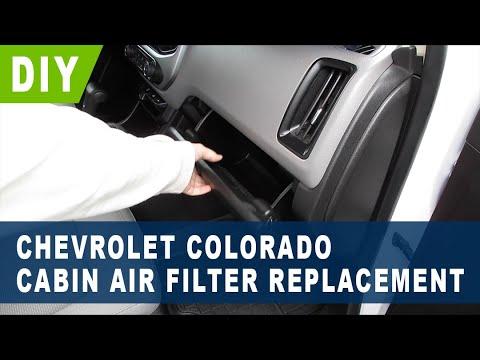

🔧 Colorado - Cabin Air Filter Replacement

Replacing the cabin air filter in your Colorado is a simple interior job done behind the glove box. A fresh cabin filter helps improve airflow from the vents and keeps dust, pollen, and debris out of the HVAC system.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off before working around the glove box area.
• ⚠️ Do not force the glove box downward; the plastic stops can crack if bent too far.
• ⚠️ The cabin filter may contain dust and pollen, so wear gloves and avoid shaking the old filter inside the cabin.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• 📋 Park your Colorado on level ground and turn the ignition off.
• 📋 Open the passenger door fully so you have room to work.
• 📋 Remove items from the glove box so nothing spills out when it drops down.
• 📋 A trim removal tool is a small plastic pry tool that helps move clips without scratching interior panels.
• 📋 No infotainment menu steps, scan tool commands, or calibration procedures are needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Empty and Open the Glove Box

• Open the glove box fully by hand.
• Remove all contents from the glove box.
• Use a flashlight to look along both side walls of the glove box opening.
• Keep screws and clips organized.

Step 2: Release the Glove Box Stops

• The glove box stops are molded plastic tabs that keep the glove box from dropping too far.
• Use both hands to gently squeeze the sides of the glove box inward.
• If the side tabs are stiff, use a trim removal tool to help guide one side inward while supporting the glove box with your other hand.
• Lower the glove box slowly until it hangs down and exposes the cabin filter access door behind it.
• No fastener torque is used in this step.

Step 3: Open the Cabin Filter Access Door

• Use a flashlight to locate the rectangular cabin air filter cover behind the glove box opening.
• Release the locking tabs on the filter cover by hand.
• If needed, use a trim removal tool gently on the tab area only.
• Remove the filter access door and set it aside.
• No fastener torque is used in this step.

Step 4: Remove the Old Cabin Air Filter

• Put on nitrile gloves and safety glasses.
• Slide the old cabin air filter straight out by hand.
• Note the airflow arrow direction printed on the old filter before removing it fully.
• Keep the filter level so dust and leaves do not fall into the blower housing.
• The blower housing is the plastic HVAC box that holds the fan and directs air through the vents.
• Do not vacuum deep inside ducts.

Step 5: Install the New Cabin Air Filter

• Compare the new cabin air filter to the old one to make sure the size and shape match.
• Check the airflow arrow on the new filter.
• Install the new filter in the same direction as the old filter, following the airflow arrow marking.
• Slide the filter in gently by hand until it is fully seated.
• Do not bend, crush, or force the filter into the slot.

Step 6: Reinstall the Filter Access Door

• Position the cabin filter access door over the opening by hand.
• Press the cover into place until the locking tabs click securely.
• Use a flashlight to confirm the cover is seated evenly all the way around.
• No fastener torque is used in this step.

Step 7: Raise and Secure the Glove Box

• Lift the glove box back toward its normal position by hand.
• Gently squeeze the glove box sides inward again so the stops clear the dash opening.
• Release the sides once the stops are back above the dash opening.
• Open and close the glove box once to make sure it moves normally.
• Use the flashlight to check that nothing is pinched behind the glove box.

---

✅ After Repair

• ✅ Start your Colorado and turn the HVAC fan on low, then high.
• ✅ Check that air flows normally from the vents.
• ✅ Listen for rattling or ticking noises, which may mean leaves or debris are near the blower fan.
• ✅ Make sure the glove box opens, closes, and latches correctly.
• ✅ Replace the cabin air filter about every 12,000-15,000 miles, or sooner in dusty areas.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 parts + labor

DIY Cost: $15-$35 parts only

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
