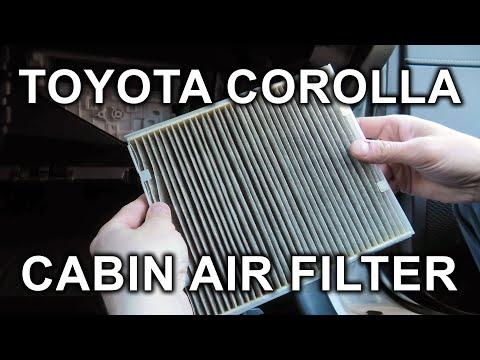

🔧 Corolla - Cabin Air Filter Replacement

Replacing the cabin air filter on your Corolla is a simple beginner-friendly job. The filter sits behind the glove box and cleans the air coming through the heater and A/C vents.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off before starting.
• ⚠️ Do not force the glove box stops; the plastic tabs can crack if bent too far.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park your Corolla on level ground.
• Shift to Park and set the parking brake.
• Turn the ignition off.
• Empty the glove box so items do not fall out.
• A cabin air filter has an airflow arrow. This arrow must point the same direction as the original filter when installed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and Empty the Glove Box

• Use your hands to open the glove box fully.
• Remove all papers, manuals, and loose items from inside.
• Use a flashlight if the area is hard to see.

Step 2: Release the Glove Box Damper

• Look on the right side of the glove box for the small damper arm.
• A damper arm is a small plastic link that slows the glove box as it opens.
• Use your hands to gently slide the damper arm off its small pin.
• Do not pry hard.

Step 3: Lower the Glove Box

• Use both hands to press inward on the left and right sides of the glove box.
• This releases the glove box stops from the dashboard opening.
• Let the glove box swing down slowly.
• Support it with one hand.

Step 4: Remove the Cabin Filter Cover

• Behind the glove box, locate the rectangular cabin filter cover.
• Use your fingers to squeeze the cover tabs.
• Pull the cover straight off and set it aside.

Step 5: Remove the Old Cabin Air Filter

• Use your fingers to slide the old filter straight out.
• Look at the airflow arrow direction before removing it completely.
• If the old filter has leaves or dust, keep it level so debris does not spill into the blower housing.
• The blower housing is the plastic air box that holds the fan and filter.

Step 6: Install the New Cabin Air Filter

• Use your hands to slide the new cabin air filter into the slot.
• Match the airflow arrow direction to the original filter orientation.
• Make sure the filter sits flat and does not fold or bunch up.
• A bent filter can whistle.

Step 7: Reinstall the Filter Cover

• Use your hands to align the cabin filter cover with the opening.
• Push the cover on until the tabs click into place.
• Gently tug the cover to confirm it is locked.

Step 8: Reinstall the Glove Box

• Use both hands to lift the glove box back toward the dashboard.
• Press the sides inward slightly so the stops pass back into position.
• Reconnect the right-side damper arm by sliding it back onto its pin.
• Open and close the glove box once to make sure it moves smoothly.

---

✅ After Repair

• Start your Corolla and turn the fan on low, then high.
• Check that air flows normally from the vents.
• Listen for rattles or whistling, which can mean the filter or cover is not seated correctly.
• Replace the cabin air filter about every 12 months or 12,000-15,000 miles, sooner in dusty areas.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 (parts + labor)

DIY Cost: $15-$35 (parts only)

You Save: $45-$85 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
