🔧 Sierra 1500 - Cabin Air Filter Replacement

The cabin air filter sits behind the lower glove box and removes dust, pollen, and debris from air entering the climate-control system. Replacement requires lowering the glove box, opening the filter cover, and installing the new filter in the correct airflow direction.

Difficulty Level: Beginner | Estimated Time: 10-20 minutes

---

⚠️ Safety & Precautions

• ⚠️ Switch off the ignition and climate-control system before starting.
• 🧤 Wear gloves because the old filter may contain dust, pollen, and mold.
• 🔋 Battery disconnection is not required for this repair.
• 📦 Do not place heavy objects on the lowered glove box.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Small plastic trim-removal tool
• LED flashlight
• Nitrile work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

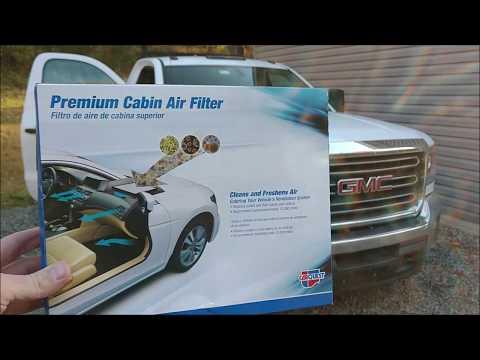

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Sierra 1500 on level ground and shift into Park.
• 🔑 Switch the ignition off and remove everything from the lower glove box.
• 🌬️ Turn the blower off so loose debris is not pulled into the HVAC housing.
• 💡 Position an LED flashlight so you can see behind the glove box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Put on nitrile work gloves and safety glasses.
• Open the lower glove box by hand and remove all stored items.
• Use the LED flashlight to locate the glove-box damper on the right side. The damper is the small arm that makes the glove box open slowly.

Step 2: Disconnect the glove-box damper

• Support the glove box with one hand.
• Use the small plastic trim-removal tool to gently release the damper arm from its mounting pin.
• Do not pull hard or twist the damper arm.
• Keep light pressure on the glove box.

Step 3: Lower the glove box

• Press both glove-box side walls inward by hand so the molded stops clear the dashboard opening.
• Carefully rotate the glove box downward until the cabin-filter housing is visible.
• Leave the lower glove-box hinges attached.

Step 4: Remove the filter access cover

• Use the LED flashlight to identify the rectangular cabin-filter cover behind the glove box.
• Release the cover retaining tabs by hand. Use the small plastic trim-removal tool only if a tab is difficult to press.
• Pull the cover straight away from the housing.
• No fasteners are removed, so there is no torque specification.

Step 5: Remove the old cabin air filter

• Note the airflow-arrow direction printed on the old filter before moving it.
• Pull the old filter straight out by hand, keeping it level to avoid spilling debris.
• Use the LED flashlight to inspect the empty housing.
• Remove loose leaves by hand while wearing nitrile work gloves. Do not push debris deeper into the blower housing.

Step 6: Install the new cabin air filter

• Check the airflow arrow printed on the new cabin air filter.
• Insert the filter by hand with the airflow arrow pointing downward.
• Slide it fully into the housing without crushing or folding the filter media.
• Never force the filter into place.

Step 7: Reinstall the access cover

• Align the filter cover with the housing by hand.
• Press the cover evenly until every retaining tab clicks into place.
• Use the LED flashlight to confirm the cover sits flush and has no visible gaps.
• No bolts are used, so no torque specification applies.

Step 8: Reinstall the glove box

• Raise the glove box by hand while pressing both side walls inward.
• Move the molded stops past the dashboard opening, then release the side walls.
• Reconnect the damper arm to its mounting pin by hand. Use the small plastic trim-removal tool to guide it if needed.
• Open and close the glove box slowly to confirm smooth movement.

---

✅ After Repair

• ✅ Start your Sierra 1500 and operate the blower at each speed.
• 👂 Listen for rattling, fluttering, or scraping behind the glove box.
• 🌬️ Confirm air flows normally from the vents without a musty odor.
• 🔍 If airflow is restricted, switch the blower off and verify the filter is not folded or installed backward.
• 🗓️ Inspect the filter about every 12 months or 15,000 miles, and sooner in dusty conditions.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$120 USD (parts + labor)

DIY Cost: $15-$40 USD (parts only)

You Save: $45-$80 USD by doing it yourself!

Local pricing in Sonīpat may vary. This repair takes a shop approximately 0.2-0.4 hours.

---
