🔧 Explorer - Cabin Air Filter Replacement

This is an easy first DIY job. The filter sits behind the passenger-side glove box, and everything releases by hand. Ford specifies the Motorcraft FP-68 filter, priced at $22.37 in the parts list. fordservicecontent.com

Difficulty Level: Beginner | Estimated Time: 15-25 minutes

---

⚠️ Safety & Precautions

• ⚠️ Park your Explorer, shift into Park, and switch off the engine.
• 🧤 Wear gloves because the old filter may hold dust and pollen.
• 💨 Switch off the climate-control fan before opening the filter housing.
• 🔋 Battery disconnection is not required.
• 🧱 Don’t force the glove-box stops or filter-cover tabs. They’re plastic.

---

🔧 Required Tools

You'll need the following tools for this repair:

• LED flashlight
• Vacuum cleaner with crevice attachment
• Nitrile mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Motorcraft particulate cabin air filter - Qty: 1

The cabin-filter aisle is open in the parts sidebar. The Motorcraft filter is the factory-style choice, while less expensive particulate and premium filtration options are also available.

---

📋 Before You Begin

• 🚙 Park on level ground and set the parking brake.
• 📦 Empty the glove box completely because it will swing downward.
• 🌬️ Turn off the fan, air conditioning, heat, and recirculation.
• 📱 No infotainment service mode or scan tool is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and empty the glove box

• Open the passenger-side glove box fully by hand.
• Remove everything inside so nothing falls behind the dashboard.
• Use the LED flashlight to inspect both sides of the glove box.

Step 2: Release the glove-box damper

• Find the small plastic damper arm on the right side. The damper is the little arm that slows the glove box as it opens.
• Support the glove box with one hand.
• Depress the damper tabs and gently pull the arm away from the glove box by hand.
• Easy pressure wins. Plastic remembers rough treatment.

Step 3: Lower the glove box

• Press inward on the left and right glove-box walls to move their stop tabs past the dashboard opening.
• Slowly lower the glove box toward the passenger floor.
• If the walls won’t flex easily, press near each stop instead of squeezing the front edge.
• Ford’s procedure calls for releasing both side tabs and fully lowering the glove compartment. fordservicecontent.com

Step 4: Open the filter housing

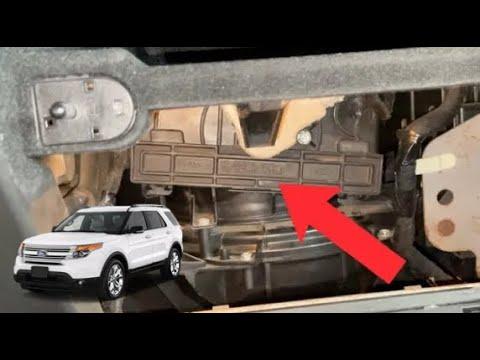

• Use the LED flashlight to locate the wide rectangular filter door behind the glove box.
• Release the plastic clips on both sides by hand.
• Swing or pull the filter door away without twisting it.

Step 5: Remove the old filter

• Note the direction of the airflow arrow printed on the old filter before moving it.
• Pull the filter straight toward you. Compress it slightly only if needed to clear the opening.
• Keep the dirty side facing upward so debris doesn’t spill into the blower housing.

Step 6: Clean the housing

• Use the vacuum cleaner with crevice attachment to remove loose leaves and dust near the opening.
• Don’t push the attachment deep into the HVAC housing.
• Never run the blower while the filter is removed.

Step 7: Install the new filter

• Match the new filter’s airflow arrow to the direction noted on the old filter.
• Slide the filter completely into the housing by hand.
• Keep the pleats straight and make sure the filter’s edges aren’t folded.
• If it binds, pull it back slightly and straighten it. Don’t cram it home.

Step 8: Reinstall the filter door

• Align the filter door with the housing.
• Engage its locating edge first, then press both sides until the clips click.
• Use the LED flashlight to verify the door sits flat with no visible gap.

Step 9: Reinstall the glove box

• Raise the glove box and press its side walls inward by hand.
• Move both stop tabs back through the dashboard opening.
• Reconnect the right-side damper arm and confirm it snaps securely into place.
• Open and close the glove box once. It should lower slowly rather than dropping freely.

---

✅ After Repair

• ✅ Start your Explorer and run the fan at low, medium, and high speed.
• 👂 Listen for fluttering or rubbing. Either sound means the filter or cover isn’t seated correctly.
• 💨 Confirm airflow from the vents is steady and the glove box closes normally.
• 🗑️ Seal the dirty filter in a bag before disposal.
• 🔄 No warning-light reset, programming, or HVAC calibration is required.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$130 (parts + labor)

DIY Cost: $7-$27 (parts only)

You Save: $43-$123 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
