🔧 Focus - Battery Replacement

Replacing the battery on your Focus is a beginner-friendly job, but it must be done carefully because the battery terminals are close together and the vehicle electronics can be sensitive to voltage loss.

Your Focus uses a battery monitoring system, so after replacement the battery monitor should be reset so the charging system knows a new battery is installed.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Wear safety glasses and gloves because car batteries contain acid and can release flammable gas.
• ⚠️ Always remove the negative cable first and reconnect it last to reduce the chance of sparks.
• ⚠️ Do not let tools touch both battery posts at the same time.
• ⚠️ Keep the ignition off and the key away from the vehicle during replacement.
• ⚠️ Battery disconnect is required for this repair.
• ⚠️ The battery is heavy; lift it straight up with both hands to avoid dropping it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8-inch ratchet
• 3/8-inch extension 6-inch
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Digital multimeter
• Battery memory saver 12V OBD-II (optional)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V AGM or flooded lead-acid battery matching factory size and rating - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park your Focus on level ground, set the parking brake, and switch the ignition fully off.
• Open the hood and let the car sit for about 5 minutes so modules can go to sleep.
• A battery memory saver is a small 12V device that plugs into the OBD-II port to help preserve radio presets and learned settings while the battery is disconnected.
• If using a memory saver, plug the battery memory saver 12V OBD-II into the OBD-II port under the driver-side dash before disconnecting the battery.
• If not using a memory saver, you may need to reset the clock, one-touch windows, and some learned idle settings afterward.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

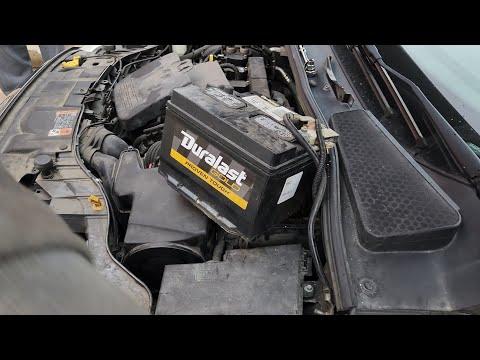

Step 1: Locate the Battery

• Open the hood and support it securely.
• The battery is in the engine compartment, near the driver-side rear area of the bay.
• Use safety glasses and nitrile gloves before touching the battery.
• Take a photo before disconnecting anything.

Step 2: Remove the Battery Cover

• Lift off or unclip the plastic battery cover by hand.
• If the cover has small fasteners, use a 10mm socket and 3/8-inch ratchet to remove them.
• Set the cover aside where it will not be stepped on.

Step 3: Disconnect the Negative Cable First

• The negative terminal is marked with a minus sign: -.
• Use a 10mm socket and 3/8-inch ratchet to loosen the negative terminal clamp nut.
• Twist the cable end gently and lift it off the battery post.
• If it is stuck, use a battery terminal puller (specialty). A terminal puller removes the clamp without bending or breaking it.
• Move the negative cable away from the battery so it cannot spring back and touch the post.

Step 4: Disconnect the Positive Cable

• The positive terminal is marked with a plus sign: + and usually has a red cover.
• Lift the red protective cover by hand.
• Use a 10mm socket and 3/8-inch ratchet to loosen the positive terminal clamp nut.
• Lift the positive cable off the battery post.
• Move the positive cable aside so it cannot touch metal parts.

Step 5: Remove the Battery Hold-Down

• The hold-down is the bracket that keeps the battery from moving while driving.
• Use a 13mm socket, 3/8-inch extension 6-inch, and 3/8-inch ratchet to remove the hold-down bolt at the base of the battery.
• Remove the hold-down bracket and keep it with the bolt.
• Do not lose the hold-down bolt.

Step 6: Remove the Old Battery

• Grip the battery firmly with both hands or use the battery handle if equipped.
• Lift the battery straight up and out of the tray.
• Keep the battery level to avoid acid leakage.
• Place it on the ground in an upright position.

Step 7: Clean the Battery Tray and Terminals

• Inspect the battery tray for dirt, corrosion, or loose hardware.
• Use a battery terminal cleaning brush to clean the inside of each cable clamp.
• If there is heavy white or green crust, clean until the metal looks bright.
• Do not pour water near electrical connectors.

Step 8: Install the New Battery

• Place the new battery into the tray in the same direction as the old one.
• Make sure the positive and negative posts are on the correct sides.
• Reinstall the battery hold-down bracket.
• Use a 13mm socket, 3/8-inch extension 6-inch, and 3/8-inch ratchet to tighten the hold-down bolt.
• Torque to 8 Nm (71 in-lbs)

Step 9: Connect the Positive Cable First

• Install one battery terminal anti-corrosion washer on the positive post if supplied.
• Push the positive cable clamp fully down onto the positive battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the positive terminal clamp nut.
• Torque to 5 Nm (44 in-lbs)
• Close the red protective cover over the positive terminal.

Step 10: Connect the Negative Cable Last

• Install one battery terminal anti-corrosion washer on the negative post if supplied.
• Push the negative cable clamp fully down onto the negative battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the negative terminal clamp nut.
• Torque to 5 Nm (44 in-lbs)
• Spray both terminals lightly with battery terminal protectant spray.

Step 11: Reinstall the Battery Cover

• Reinstall the battery cover by hand.
• If fasteners were removed, use a 10mm socket and 3/8-inch ratchet to reinstall them snugly.
• Do not overtighten plastic cover fasteners.

Step 12: Reset the Battery Monitoring System

• Your Focus uses a battery monitoring system that tracks battery age and charge behavior.
• Use this dash-button reset sequence after the new battery is installed:
• Switch the ignition to ON without starting the engine.
• Within 10 seconds, flash the high beams 5 times using the turn-signal stalk.
• Then press and release the brake pedal 3 times.
• Watch the battery warning light; it should flash to confirm the reset.
• If it does not flash, repeat the sequence once more.

Step 13: Check Charging Voltage

• Use a digital multimeter set to DC volts.
• Place the red meter lead on the positive battery post and the black meter lead on the negative battery post.
• With the engine off, a healthy new battery should usually read about 12.4-12.8 volts.
• Start the engine and check voltage again.
• With the engine running, charging voltage should typically be about 13.5-14.8 volts.

---

✅ After Repair

• ✅ Start your Focus and confirm it cranks strongly.
• ✅ Check that the battery is secure and does not move by hand.
• ✅ Confirm both terminal clamps are fully seated and tight.
• ✅ Reset the clock and radio presets if needed.
• ✅ Relearn one-touch windows if needed by fully closing each window and holding the switch up for 2-3 seconds.
• ✅ Drive normally for 10-15 minutes so the idle and charging strategy can stabilize.
• ✅ Recycle the old battery at a parts store or recycling center; do not throw it in household trash.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
