🔧 Highlander - Battery Replacement

Replacing the 12-volt battery on your Highlander is a beginner-friendly job. The battery supplies power for starting, lights, computers, and accessories; if it is weak or dead, replacement restores reliable starting.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Wear safety glasses and gloves. Car batteries contain acid and can spark if tools touch the wrong places.
• ⚠️ Always remove the negative cable first and install it last. This reduces the chance of an accidental short circuit.
• ⚠️ Do not let a wrench touch both battery terminals or the positive terminal and metal body at the same time.
• ⚠️ Keep the key off and away from the vehicle while working.
• ⚠️ Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 3/8-inch ratchet
• 6-inch extension
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Memory saver 12V OBD-II (specialty)
• Battery carrier strap
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V starting battery - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Battery anti-corrosion washers - Qty: 2

---

📋 Before You Begin

• Park your Highlander on level ground, shift to Park, and set the parking brake.
• Turn the ignition off and remove the key from the vehicle.
• Open the hood and support it securely.
• If using a memory saver, plug the memory saver 12V OBD-II into the OBD-II port under the driver side dash before disconnecting the battery. A memory saver keeps radio presets and computer memory alive while the battery is disconnected.
• Make sure the replacement battery matches the correct size, terminal layout, and cold cranking amp rating for your Highlander.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

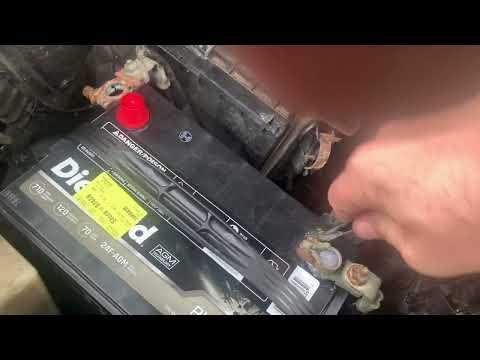

Step 1: Locate the Battery

• Open the hood and look at the front passenger-side area of the engine bay.
• Put on safety glasses and nitrile gloves.
• Identify the negative terminal marked “-” and the positive terminal marked “+”.
• Take a photo first.

Step 2: Disconnect the Negative Cable

• Use a 10mm wrench to loosen the nut on the negative battery terminal clamp.
• Twist the clamp gently and lift it off the negative post.
• If it is stuck, use a battery terminal puller. A terminal puller safely lifts the clamp without damaging the battery post.
• Move the negative cable away from the battery so it cannot spring back and touch the post.

Step 3: Disconnect the Positive Cable

• Flip open the red positive terminal cover by hand.
• Use a 10mm wrench to loosen the nut on the positive battery terminal clamp.
• Lift the positive clamp off the battery post.
• Position the cable away from the battery.

Step 4: Remove the Battery Hold-Down

• Use a 10mm socket, 3/8-inch ratchet, and 6-inch extension to loosen and remove the battery hold-down nuts.
• Remove the hold-down bracket and J-hooks. J-hooks are the long hooked rods that secure the battery to the tray.
• Keep the bracket, nuts, and hooks together so they do not get lost.

Step 5: Remove the Old Battery

• Attach a battery carrier strap if the battery does not have a built-in handle.
• Lift the battery straight up and out of the tray using both hands.
• Set it upright on the ground. Do not tip it over.
• Batteries are heavier than they look.

Step 6: Clean the Battery Tray and Cable Ends

• Use a battery terminal cleaning brush to clean the inside of both cable clamps.
• Use the same battery terminal cleaning brush to clean any corrosion from the battery tray area.
• If you see heavy white or blue-green powder, avoid breathing the dust and keep it off your skin.

Step 7: Install the New Battery

• Lower the new 12V starting battery into the tray with the positive and negative posts in the same positions as the old battery.
• Install the hold-down bracket and J-hooks by hand first.
• Use a 10mm socket, 3/8-inch ratchet, and 6-inch extension to tighten the hold-down nuts evenly.
• Torque to 5 Nm (44 in-lbs).
• Do not overtighten. The battery case can crack.

Step 8: Connect the Positive Cable

• Install one battery anti-corrosion washer on the positive battery post.
• Push the positive cable clamp fully down onto the positive post.
• Use a 10mm wrench to tighten the terminal nut.
• Torque to 5 Nm (44 in-lbs).
• Close the red positive terminal cover.

Step 9: Connect the Negative Cable

• Install one battery anti-corrosion washer on the negative battery post.
• Push the negative cable clamp fully down onto the negative post.
• Use a 10mm wrench to tighten the terminal nut.
• Torque to 5 Nm (44 in-lbs).
• Remove the memory saver 12V OBD-II if one was used.

Step 10: Protect the Terminals

• Use battery terminal protectant spray on both installed battery terminals.
• Apply a light coating only. Do not soak nearby wiring.

---

✅ After Repair

• Start your Highlander and make sure it cranks normally.
• Check that the battery warning light turns off after the engine starts.
• Confirm the terminals do not move by gently wiggling each cable by hand.
• Reset the clock, radio presets, and auto window functions if needed.
• If the driver window auto-up/down does not work, fully lower the window, then fully raise it and hold the switch up for 2 seconds.
• Recycle the old battery at an auto parts store or battery recycler.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
