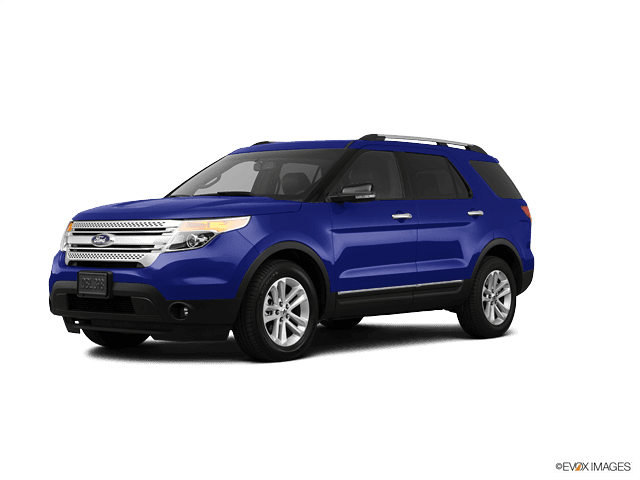

🔧 Explorer - 12-Volt Battery Replacement

The battery is located under the hood on the driver’s side. Replacement involves disconnecting the negative terminal first, removing the hold-down clamp, installing the new battery, and resetting the Battery Monitoring System.

Difficulty Level: Beginner | Estimated Time: 30-45 minutes

---

⚠️ Safety & Precautions

• 🧤 Wear safety glasses and acid-resistant gloves because batteries contain corrosive acid.
• ⚡ Switch off the ignition, lights, climate control, and all accessories before disconnecting the battery.
• 🔧 Always disconnect the negative terminal first and reconnect it last.
• 🚫 Never place a tool across both battery terminals.
• 🔥 Keep sparks, cigarettes, and open flames away from the battery.
• 🔋 Do not use a memory saver; it can keep disconnected cables electrically live.
• ⚠️ The battery is heavy. Lift it vertically with both hands or use a battery carrier.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 1/4-inch drive ratchet
• 1/4-inch drive 6-inch extension
• Torque wrench rated 2-20 Nm
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Battery carrier strap rated 25 kg minimum
• 12-volt digital multimeter
• Safety glasses
• Acid-resistant gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• BCI Group 65 12-volt battery - Qty: 1
• Battery terminal protectant - Qty: 1

Use a Group 65 battery with the correct terminal orientation and at least the cold-cranking-amp rating printed on the original battery label. Cold-cranking amps measure the battery’s ability to start a cold engine.

---

📋 Before You Begin

• 🅿️ Park your Explorer on level ground, select Park, engage the parking brake, and open the hood.
• 🔑 Remove the key from the vehicle and keep the doors unlocked.
• ⏱️ Wait at least two minutes after switching off the ignition so the electrical modules can shut down.
• 🪟 Lower the driver’s window before disconnecting power to avoid being locked out.
• 📻 Record any preferred radio stations and settings that you may want to restore.
• 🔋 Verify that the replacement battery matches the original battery’s physical size, terminal layout, and minimum rating.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Check the Replacement Battery

• Use the 12-volt digital multimeter across the new battery terminals. A fully charged battery should normally read approximately 12.6 volts.
• Confirm that the positive and negative posts match the original battery’s orientation.
• Install only a fully charged replacement battery.

Step 2: Disconnect the Negative Terminal

• Identify the negative terminal by its minus symbol and black cable.
• Use the 10mm socket and 1/4-inch drive ratchet to loosen the negative terminal clamp nut.
• Lift the clamp straight off. Use the battery terminal puller if it is stuck; this tool removes the clamp without damaging the battery post.
• Move the cable aside where it cannot spring back onto the battery.
• Do not completely remove the clamp nut from the terminal.

Step 3: Disconnect the Positive Terminal

• Open the red positive-terminal cover.
• Use the 10mm socket and 1/4-inch drive ratchet to loosen the positive terminal clamp nut.
• Lift the positive clamp from the post. Use the battery terminal puller if necessary.
• Move the cable away without allowing it to touch metal bodywork.

Step 4: Remove the Battery Hold-Down

• Locate the retaining clamp at the base of the battery.
• Use the 8mm socket, 6-inch extension, and 1/4-inch drive ratchet to remove the hold-down bolt and clamp.
• Place the bolt and clamp somewhere safe.

Step 5: Remove the Old Battery

• Fit the battery carrier strap securely around the battery.
• Lift the battery vertically from its tray. Keep it upright to prevent acid leakage.
• Inspect the tray and cable ends for corrosion, swelling, or damage.
• Use the battery terminal cleaning brush to remove light corrosion from the inside of both cable clamps.
• A battery may weigh more than 18 kg.

Step 6: Install the New Battery

• Use the battery carrier strap to lower the new battery squarely into the tray.
• Make sure the positive and negative posts are in the same positions as the old battery.
• Check that the battery sits flat and does not trap any wiring underneath it.

Step 7: Reinstall the Hold-Down Clamp

• Position the hold-down clamp against the base of the battery.
• Start the bolt by hand to prevent cross-threading.
• Use the 8mm socket, 6-inch extension, and torque wrench to tighten the hold-down bolt to 9 Nm (80 in-lbs).
• Gently push the battery by hand. It must not slide or rock.

Step 8: Connect the Positive Terminal

• Push the positive cable clamp fully down onto the positive battery post.
• Use the 10mm socket and torque wrench to tighten the clamp nut to 6 Nm (53 in-lbs).
• Close the red protective cover.
• Do not overtighten the clamp because the battery post can be damaged.

Step 9: Connect the Negative Terminal

• Push the negative cable clamp fully down onto the negative battery post.
• Use the 10mm socket and torque wrench to tighten the clamp nut to 6 Nm (53 in-lbs).
• Apply a light coating of battery terminal protectant around the outside of both installed clamps.

Step 10: Reset the Battery Monitoring System

• Sit in the driver’s seat and close all doors.
• Switch the ignition to ON without starting the engine.
• Within 10 seconds, use the headlamp stalk to flash the high beams five times.
• Press and release the brake pedal three times.
• Watch for the battery warning indicator to flash several times, confirming the reset.
• If no confirmation appears, repeat the sequence carefully. The Battery Monitoring System tracks battery condition and charging strategy.

---

✅ After Repair

• ✅ Start the engine and confirm that it cranks normally.
• 🔍 Check that the charging-system warning light turns off after the engine starts.
• 🔋 Use the 12-volt digital multimeter across the battery terminals. Charging voltage will vary with Ford’s smart-charging strategy and operating conditions.
• 🧰 Confirm that both terminal clamps are secure and the battery cannot move.
• 🪟 Reset the one-touch windows if needed: fully close each affected window, then hold its switch upward for two additional seconds.
• 🚗 Allow the engine to idle briefly, then drive normally. Idle and transmission behavior may temporarily change while learned settings are restored.
• ♻️ Return the old lead-acid battery to a battery retailer or authorized recycling center.

---

💰 DIY vs Shop Cost

Shop Cost: ₹11,000-₹18,000 (parts + labor)

DIY Cost: ₹8,500-₹14,000 (parts only)

You Save: ₹2,500-₹4,000 by doing it yourself!

Local labor and battery prices vary. This repair takes a shop approximately 0.3-0.5 hours.

---
