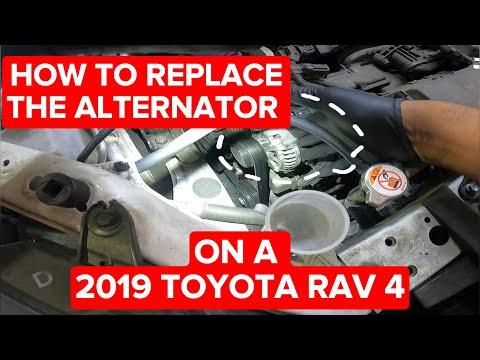

🔧 RAV4 - Alternator Replacement

Replacing the alternator on your RAV4 involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the alternator assembly. The alternator keeps the battery charged and powers the electrical system while the engine is running.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting to prevent electrical shorts.
• ⚠️ Let the engine cool fully before working near the belt, pulleys, and exhaust-side components.
• ⚠️ Keep fingers, tools, and clothing away from the serpentine belt path.
• ⚠️ Do not pry against aluminum engine parts; they can crack.
• ⚠️ If your RAV4 has active warning lights after repair, a scan tool may be needed to clear stored low-voltage codes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench rated 10-100 ft-lbs
• Digital multimeter
• Fender cover
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator assembly - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolt hardware - Qty: 1 set, if damaged or corroded
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• 🚗 Park your RAV4 on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool for at least 30 minutes.
• 🔋 Use a 10mm socket to disconnect the negative battery cable. A negative cable is the black cable marked with a minus symbol.
• 🧠 If you use a radio preset or clock setting, note it before disconnecting the battery.
• 📸 Take a photo of the serpentine belt routing before removing it. This helps you reinstall the belt correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood and Protect the Paint

• Use a fender cover over the front fender area to protect the paint while you lean in.
• Put on safety glasses and mechanic gloves.
• Use a 10mm socket to disconnect the negative battery cable from the battery terminal.
• Move the cable aside so it cannot spring back and touch the terminal.
• Never skip the battery disconnect.

Step 2: Remove the Upper Engine Cover if Equipped

• Grip the plastic engine cover with both hands and pull upward evenly.
• If any clips resist, use a trim clip removal tool carefully around the rubber mounting points.
• Set the cover aside in a safe place.

Step 3: Remove Intake Ducting for Access

• Use a 10mm socket to loosen the intake duct clamp near the air filter box.
• Use a flat-blade screwdriver to gently release any plastic hose clips attached to the duct.
• Lift the duct out of the way to create working space near the alternator.
• Plastic clips get brittle with age.

Step 4: Record the Serpentine Belt Routing

• Use your phone to take a clear photo of the belt path around every pulley.
• The serpentine belt is the long ribbed belt that drives the alternator and other accessories.
• Make sure the photo clearly shows the alternator pulley and tensioner pulley.

Step 5: Release the Serpentine Belt Tension

• Place a 17mm socket with a 1/2-inch drive breaker bar or serpentine belt tool on the belt tensioner.
• The belt tensioner is a spring-loaded pulley arm that keeps the belt tight.
• Rotate the tensioner slowly to relieve belt tension.
• Slide the belt off the alternator pulley by hand while holding the tensioner released.
• Slowly let the tensioner return to its resting position.
• Do not let the tensioner snap back.

Step 6: Remove the Alternator Electrical Connections

• Use a flat-blade screwdriver to gently unlock the alternator electrical connector tab.
• Pull the connector straight off by the plastic body, not by the wires.
• Lift the rubber boot from the alternator output terminal.
• Use a 10mm socket to remove the nut from the output wire terminal.
• Move the wire aside and protect it from touching metal.
• Torque the output terminal nut during installation to 9 Nm (80 in-lbs).

Step 7: Remove the Alternator Mounting Bolts

• Use a 12mm socket or 14mm socket, depending on bolt position, to loosen the alternator mounting bolts.
• Use a 3/8-inch drive extension if access is tight.
• Support the alternator with one hand while removing the final bolt.
• Lift the alternator out carefully from the engine bay.
• The alternator is heavier than it looks, so keep a firm grip.

Step 8: Compare the Old and New Alternator

• Place both alternators side by side on a clean surface.
• Check that the mounting ears, pulley, electrical connector, and output terminal match.
• Spin the new alternator pulley by hand to confirm it turns smoothly.
• Do not install the part if the connector or pulley style is different.

Step 9: Install the New Alternator

• Lower the new alternator into place by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 12mm socket or 14mm socket to snug the mounting bolts evenly.
• Use a torque wrench to tighten the alternator mounting bolts to 43 Nm (32 ft-lbs).
• Hand-start bolts before using tools.

Step 10: Reconnect the Alternator Wiring

• Place the alternator output wire onto the output terminal.
• Use a 10mm socket and torque wrench to tighten the terminal nut to 9 Nm (80 in-lbs).
• Push the rubber protective boot fully over the terminal.
• Push the electrical connector into the alternator until it clicks.
• Gently tug the connector to confirm it is locked.

Step 11: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your photo as a guide.
• Use the 17mm socket with the breaker bar or serpentine belt tool to rotate the tensioner again.
• Slide the belt over the alternator pulley last.
• Slowly release the tensioner.
• Check that the belt ribs sit fully in every grooved pulley.
• If the belt is off by one rib, remove and reinstall it before starting the engine.

Step 12: Reinstall Intake Ducting and Engine Cover

• Reinstall the intake duct by hand.
• Use a 10mm socket to tighten the intake duct clamp snugly.
• Reconnect any hose clips using your fingers or a flat-blade screwdriver.
• Push the engine cover straight down onto its mounting points if removed.

Step 13: Reconnect the Battery

• Place the negative battery cable back on the battery terminal.
• Use a 10mm socket to tighten the terminal clamp until it cannot twist by hand.
• Do not overtighten the terminal clamp because the battery post can be damaged.
• Apply battery terminal protector spray if available.

Step 14: Test Charging Voltage

• Start the engine and let it idle.
• Use a digital multimeter set to DC volts.
• Touch the red meter lead to the positive battery terminal and the black lead to the negative battery terminal.
• A healthy charging system should usually show about 13.5-14.8 volts with the engine running.
• Turn on headlights and blower fan, then confirm the voltage stays stable.

---

✅ After Repair

• ✅ Listen for belt squeal, grinding, or chirping after startup.
• ✅ Check that the battery warning light turns off.
• ✅ Confirm all electrical accessories work normally.
• ✅ Recheck the serpentine belt alignment after the engine runs for one minute.
• ✅ If warning lights remain, scan for low-voltage codes and clear them after confirming charging voltage is correct.
• ✅ Take a short test drive, then recheck for loose wiring or abnormal noises.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
