🔧 Fit - Alternator Replacement

Replacing the alternator on your Fit involves removing the drive belt, disconnecting the alternator wiring, unbolting the alternator, and installing the new unit. The alternator charges the battery and powers the vehicle’s electrical system while the engine is running.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting. The alternator has a direct battery power cable.
• ⚠️ Let the engine cool completely before working near the belt, radiator fan, and exhaust-side components.
• ⚠️ Keep fingers, tools, and clothing away from the drive belt path.
• ⚠️ Support the vehicle only with jack stands if you raise it. Never rely on a floor jack alone.
• ⚠️ Your Fit does not require alternator coding or battery registration after alternator replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm box-end wrench
• 3/8-inch ratchet
• 3/8-inch extension
• Breaker bar 3/8-inch
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench 3/8-inch
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park your Fit on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery cable using a 10mm socket.
• If raising the vehicle, use a floor jack rated 2-ton minimum and support it with jack stands rated 2-ton minimum.
• A serpentine belt is the long rubber belt that turns the alternator, A/C compressor, and other pulleys.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch extension to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot touch the battery again.
• Always remove negative first.

Step 2: Raise the Front of the Vehicle

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 2-ton minimum at the front center jacking point.
• Place jack stands rated 2-ton minimum under the front side support points.
• Gently lower the vehicle onto the jack stands and shake the vehicle lightly to confirm it is stable.

Step 3: Remove the Lower Splash Shield Access Fasteners

• Use a trim clip removal tool to remove the plastic clips from the lower splash shield area near the passenger side.
• Use a 10mm socket and 3/8-inch ratchet to remove any 10mm splash shield bolts needed for access.
• Move the splash shield down enough to access the belt and lower alternator area.
• A splash shield is the plastic panel under the engine that blocks water and road debris.

Step 4: Note the Belt Routing

• Look at how the serpentine belt wraps around the pulleys before removing it.
• Use your phone to take a clear picture of the belt routing.
• This helps you install the new serpentine drive belt correctly later.
• A quick photo prevents confusion.

Step 5: Release Belt Tension

• Place a 17mm box-end wrench or breaker bar 3/8-inch on the drive belt tensioner.
• Rotate the tensioner to release belt tension.
• A tensioner is a spring-loaded pulley arm that keeps the belt tight.
• While holding the tensioner released, slide the belt off the alternator pulley.
• Slowly let the tensioner return to its resting position.

Step 6: Remove the Serpentine Belt

• Pull the belt off the remaining pulleys by hand.
• Compare the old belt with the new serpentine drive belt to confirm the length and rib count match.
• Do not reuse a cracked, glazed, or oil-soaked belt.

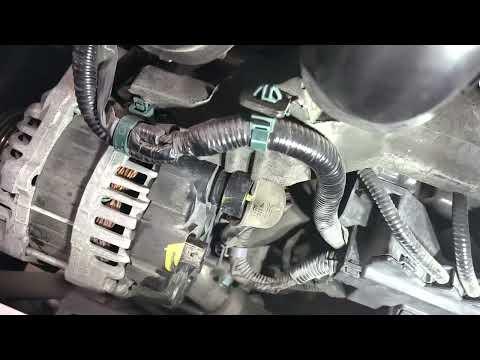

Step 7: Disconnect the Alternator Electrical Connectors

• Locate the alternator on the front/passenger side of the engine.
• Use a flathead screwdriver gently if needed to release the locking tab on the alternator electrical plug.
• Pull the electrical plug straight out by the connector body, not by the wires.
• Lift the rubber protective boot from the alternator power cable terminal.
• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch extension to remove the alternator power cable nut.
• Move the cable aside where it cannot touch metal.

Step 8: Remove the Alternator Mounting Bolts

• Use a 12mm socket, 14mm socket, 3/8-inch ratchet, and 3/8-inch extension to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the final bolt.
• If a bolt is tight, use a breaker bar 3/8-inch for controlled extra leverage.
• Keep the bolts organized so they go back in the same locations.

Step 9: Remove the Old Alternator

• Work the alternator out of its bracket by hand.
• If it is stuck in the bracket, gently rock it side to side.
• Do not pry against the aluminum engine bracket with heavy force.
• Remove the alternator through the best available opening from the top or lower passenger-side access area.

Step 10: Install the New Alternator

• Place the new alternator into the mounting bracket.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 12mm socket, 14mm socket, 3/8-inch ratchet, and torque wrench 3/8-inch to tighten the alternator mounting bolts.
• Torque to 44 Nm (33 ft-lbs)

Step 11: Reconnect the Alternator Wiring

• Install the alternator power cable onto the alternator terminal.
• Use a 10mm socket and torque wrench 3/8-inch to tighten the power cable nut.
• Torque to 9 Nm (80 in-lbs)
• Push the rubber protective boot fully over the terminal.
• Plug in the alternator electrical connector until it clicks.

Step 12: Install the New Serpentine Belt

• Route the new serpentine drive belt around the pulleys using your photo as a guide.
• Leave the alternator pulley for last if that gives the easiest access.
• Use a 17mm box-end wrench or breaker bar 3/8-inch to rotate the tensioner and create slack.
• Slide the belt onto the final pulley.
• Slowly release the tensioner.
• Check that the belt ribs are seated correctly in every pulley groove.
• Misaligned belts can shred quickly.

Step 13: Reinstall the Splash Shield

• Lift the lower splash shield back into position.
• Use a trim clip removal tool to reinstall the plastic clips.
• Use a 10mm socket and 3/8-inch ratchet to reinstall any splash shield bolts.
• Snug the 10mm bolts by hand; do not overtighten plastic panel hardware.

Step 14: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to raise the vehicle slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower the vehicle slowly to the ground.
• Remove the wheel chocks.

Step 15: Reconnect the Battery

• Place the negative battery cable back onto the negative battery post.
• Use a 10mm socket, 3/8-inch ratchet, and torque wrench 3/8-inch to tighten the terminal nut.
• Torque to 5 Nm (44 in-lbs)
• Make sure the clamp does not twist by hand.

---

✅ After Repair

• Start your Fit and listen for belt squeal, rubbing, or grinding noises.
• Confirm the battery warning light turns off after the engine starts.
• Let the engine idle for 2-3 minutes and recheck that the belt is tracking straight on all pulleys.
• Turn on headlights, blower motor, and rear defroster. The engine should continue running smoothly.
• Reset the clock and radio presets if needed.
• Recycle or return the old alternator if it has a core charge.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
