🔧 Alternator - Replacement

Replacing the alternator on your Tacoma means removing the serpentine belt, disconnecting the alternator wiring, unbolting the old alternator, and installing the new one. The alternator charges the battery while the engine runs, so a weak or failed one can cause battery warning lights, dim lights, stalling, or a no-start condition.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring to prevent sparks or short circuits.
• ⚠️ Let the engine cool fully before working near the belt, pulleys, and exhaust-side engine bay components.
• ⚠️ Keep fingers, sleeves, and tools away from the serpentine belt path.
• ⚠️ The serpentine belt is spring-loaded by the belt tensioner. A tensioner is a spring-loaded arm that keeps the belt tight.
• ⚠️ Do not pry against the aluminum alternator case or engine brackets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 6-inch socket extension
• Torque wrench 10-100 ft-lb
• Flathead screwdriver
• Trim clip removal tool
• Digital multimeter
• Battery terminal brush
• Mechanic gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Tacoma on level ground, shift to Park, and set the parking brake.
• 🔑 Turn the ignition off and remove the key from the vehicle.
• 🧊 Let the engine cool for at least 30 minutes if it was recently driven.

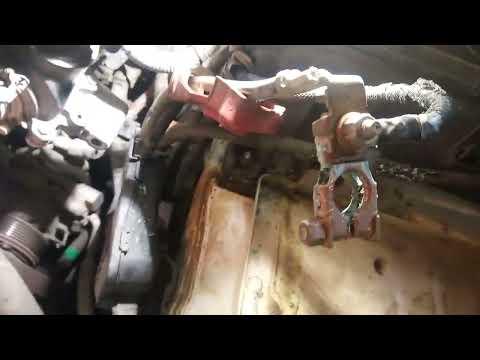

• 🔋 Open the hood and disconnect the negative battery cable using a 10mm socket. Move the cable aside so it cannot touch the battery post.
• 📸 Take a photo of the serpentine belt routing before removal. This helps if the under-hood belt diagram is hard to read.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover or Intake Duct if Needed

• Use a 10mm socket or trim clip removal tool to remove any intake duct fasteners blocking access to the alternator area.
• Use a flathead screwdriver to loosen any hose clamp if the air duct needs to be moved.
• Set the duct and clips aside in order.
• Take photos before removing parts.

Step 2: Relieve Serpentine Belt Tension

• Locate the belt tensioner on the front of the engine.
• Place a 19mm socket and 1/2-inch drive breaker bar on the tensioner pulley bolt.
• Rotate the tensioner clockwise to loosen the belt tension.
• Slide the belt off the alternator pulley while holding the tensioner back.
• Slowly release the tensioner. Do not let it snap back.
• If replacing the belt, remove it fully from the remaining pulleys.

Step 3: Disconnect the Alternator Electrical Connectors

• Use a flathead screwdriver gently if needed to release the small alternator plug lock tab.
• Pull the electrical connector straight out by the connector body, not by the wires.
• Open the rubber protective cover on the alternator battery cable terminal.
• Use a 10mm socket to remove the nut from the alternator output terminal.
• Lift the battery cable off the stud and move it aside.
• Torque on installation: alternator output terminal nut to 9 Nm (80 in-lbs)

Step 4: Remove the Alternator Mounting Bolts

• Use a 12mm socket, 14mm socket, 3/8-inch drive ratchet, and 6-inch socket extension to remove the alternator mounting bolts.
• Support the alternator with one hand while removing the final bolt.
• Wiggle the alternator gently out of its bracket.
• If it is stuck, rock it by hand. Do not hammer the housing.
• Aluminum brackets can crack easily.

Step 5: Compare the New Alternator

• Place the old and new alternators side by side.
• Confirm the pulley style, mounting ears, electrical plug shape, and battery cable stud location match.
• Spin the new pulley by hand. It should turn smoothly with no grinding.

Step 6: Install the New Alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading. Cross-threading means the bolt is going in crooked and damaging the threads.
• Use a 12mm socket or 14mm socket to snug the bolts evenly.
• Use a torque wrench 10-100 ft-lb to tighten the alternator mounting bolts.
• Torque to 43 Nm (32 ft-lbs)

Step 7: Reconnect the Alternator Wiring

• Push the small electrical connector into the alternator until it clicks.
• Place the battery cable eyelet onto the alternator output stud.
• Install the terminal nut using a 10mm socket.
• Use a torque wrench 10-100 ft-lb carefully at low setting if compatible.
• Torque to 9 Nm (80 in-lbs)
• Close the rubber protective cover fully over the terminal.

Step 8: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your photo or the under-hood belt routing label.
• Leave the alternator pulley for last.
• Use a 19mm socket and 1/2-inch drive breaker bar to rotate the tensioner clockwise.
• Slip the belt over the alternator pulley.
• Slowly release the tensioner.
• Check that the belt ribs sit squarely in every grooved pulley.
• One rib off can shred the belt.

Step 9: Reinstall Intake Duct or Covers

• Reinstall any removed intake duct parts using a 10mm socket.
• Tighten hose clamps using a flathead screwdriver.
• Reinstall clips using your hands or a trim clip removal tool to guide them into place.

Step 10: Reconnect the Battery

• Clean the battery terminal with a battery terminal brush if corrosion is present.
• Reconnect the negative battery cable.
• Use a 10mm socket to tighten the battery terminal clamp.
• Torque to 5 Nm (44 in-lbs)
• Apply battery terminal protectant after tightening.

Step 11: Test Charging Voltage

• Set a digital multimeter to DC volts.
• Touch the red meter lead to the positive battery post and the black meter lead to the negative battery post.
• With the engine off, a healthy battery should usually read about 12.4-12.7 volts.
• Start the engine and check voltage again.
• With the engine running, the charging voltage should usually be about 13.5-14.8 volts.
• Turn on headlights and blower fan, then confirm voltage stays stable above about 13.2 volts.

---

✅ After Repair

• ✅ Confirm the battery warning light turns off after startup.
• 👂 Listen for belt squeal, chirping, or grinding from the alternator area.
• 👀 With the engine running, visually check that the belt tracks straight on all pulleys.
• 🔋 Recheck charging voltage with a digital multimeter after a short drive.
• 🧠 Some idle behavior may feel slightly different after battery disconnect. Your Tacoma should relearn idle as you drive.
• 🪟 Reset auto window function if needed by fully closing the window and holding the switch up for a few seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
