🔧 Canyon - Alternator Replacement

Replace the alternator by disconnecting both batteries, releasing the accessory belt, removing the electrical connections, and unbolting the unit. This is a tight but manageable repair if you label connections and take a belt-routing photo first.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: These instructions cover the stock 2.8L Duramax accessory-drive layout. Compare the replacement alternator’s pulley, connector, mounting ears, and amperage rating before installation.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative terminals from both batteries. The second battery may be under the hood or connected through the diesel dual-battery system.
• ⚠️ Never let a tool bridge a battery terminal to metal. That can cause severe arcing or burns.
• ⚠️ Let the engine cool completely before working near the belt drive and cooling system.
• ⚠️ Keep fingers clear of the spring-loaded belt tensioner. Move it slowly and deliberately.
• ⚠️ Never start the engine until every tool is removed and the belt is correctly seated.
• ⚠️ Wear eye protection when working beneath the hood.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• Metric socket set from 8mm to 18mm
• 3/8-inch drive ratchet
• 3/8-inch drive breaker bar
• 3-inch socket extension
• 6-inch socket extension
• Metric combination wrench set from 8mm to 18mm
• Serpentine belt tool (specialty)
• Trim-clip removal tool (specialty)
• Small flat-blade screwdriver
• Torque wrench rated 5-100 Nm
• Digital multimeter (specialty)
• Battery-terminal cleaning brush
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Vehicle-specific alternator assembly - Qty: 1
• Accessory drive belt - Qty: 1 if cracked, glazed, contaminated, or stretched
• Alternator terminal protective boot - Qty: 1 if damaged
• Alternator mounting bolts - Qty: As needed if corroded or damaged

The belt aisle is open beside this guide. Replacing an aged belt now saves repeating most of the access work later. Cheap insurance beats doing the same knuckle-scraping job twice.

---

📋 Before You Begin

• Park your Canyon on level ground, shift into Park, apply the parking brake, and remove the key.
• Open the hood and wait at least five minutes before disconnecting the batteries.
• Photograph the accessory-belt routing. Confirm the underhood routing diagram is present and readable.
• Record any radio presets you want to retain. No infotainment service mode is required for alternator replacement.
• Check the replacement alternator against the old unit before removing anything beyond the belt.
• Keep each battery cable positioned where it cannot spring back onto its terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect Both Batteries

• Use a 10mm socket to loosen the negative terminal on the primary battery.
• Lift the cable from the terminal and isolate it so it cannot reconnect accidentally.
• Use the 10mm socket to disconnect the negative terminal from the second battery.
• Wait at least two minutes before touching the alternator wiring.
• Negative cables come off first.

Step 2: Remove the Upper Access Components

• Use a trim-clip removal tool to release any push clips securing the upper air duct or radiator cover that blocks access.
• Use the appropriate socket from the metric socket set to remove any air-intake fasteners obstructing the alternator.
• Move the ducting aside without pulling on attached wiring or hoses.
• Do not open the air-conditioning system or disconnect refrigerant lines.

Step 3: Record the Belt Routing

• Compare your photograph with the underhood routing diagram.
• Trace the belt around every pulley and note which pulleys contact the ribbed and smooth sides.
• Inspect the belt for cracks, missing ribs, shiny glazing, frayed edges, or oil contamination.

Step 4: Release the Accessory Belt

• Fit the serpentine belt tool or appropriate socket and 3/8-inch drive breaker bar onto the tensioner.
• Rotate the tensioner only far enough to remove belt tension. Do not force it against its stop.
• Slip the belt off the alternator pulley while controlling the tensioner with the tool.
• Slowly return the tensioner to its resting position.
• Leave the belt routed around the lower pulleys if it will be reused.

Step 5: Disconnect the Alternator Wiring

• Release the small regulator-connector lock with a small flat-blade screwdriver. Pull on the connector body, not the wires.
• Fold back the protective boot covering the large output terminal.
• Use the correctly fitting socket, commonly a 13mm socket, to remove the output-cable retaining nut.
• Lift the output cable from the stud and protect it from dirt or contact with metal.
• Inspect the cable eyelet and boot for heat damage, looseness, or green corrosion.

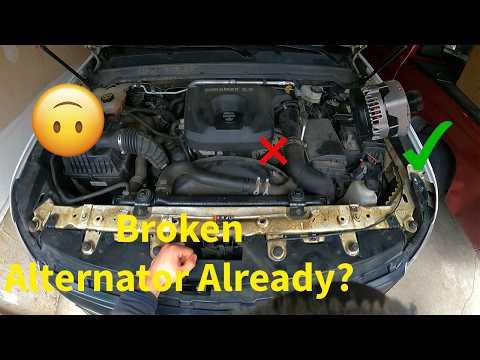

Step 6: Remove the Alternator

• Support the alternator with one hand. It’s heavier than it looks.
• Use the correctly fitting socket from the metric socket set, extensions, and 3/8-inch drive ratchet to remove the alternator mounting bolts.
• Note each bolt’s position and length as it comes out.
• Rock the alternator gently to free its mounting ears. Do not pry against plastic housings, wiring, or aluminum sealing surfaces.
• Lift the alternator out through the available upper opening. Reposition loose intake ducting as needed.

Step 7: Compare the Old and New Alternators

• Place both alternators side by side.
• Confirm the mounting ears, pulley diameter, rib count, electrical connector, output stud, and rear-housing clearance match.
• Spin the new pulley by hand. It should turn smoothly without scraping or looseness.
• Do not install the alternator if the connector or pulley differs.

Step 8: Install the Replacement Alternator

• Lower the alternator into position without trapping wiring behind it.
• Start every mounting bolt by hand for several turns. This prevents cross-threading the aluminum bracket.
• Use the appropriate socket and torque wrench to tighten the alternator mounting bolts evenly.
• Torque to 50 Nm (37 ft-lbs) unless the replacement alternator instructions specify a revised value.

Step 9: Reconnect the Alternator Wiring

• Install the output cable squarely onto the alternator stud.
• Use the appropriate socket and torque wrench to tighten the output-terminal nut to 15 Nm (11 ft-lbs).
• Do not overtighten the stud. It can twist inside the alternator and ruin a brand-new unit.
• Cover the terminal completely with its protective boot.
• Push the regulator connector into place until its lock clicks.

Step 10: Reinstall the Accessory Belt

• Route the belt according to your photograph and the underhood diagram.
• Make sure every rib is centered in every grooved pulley.
• Use the serpentine belt tool to rotate the tensioner and slip the belt over the alternator pulley.
• Release the tensioner slowly.
• Inspect every pulley again. A belt sitting one rib off can shred within minutes.

Step 11: Reinstall the Access Components

• Return the intake ducting and upper covers to their original positions.
• Use the appropriate socket from the metric socket set to tighten removed fasteners securely.
• Use the trim-clip removal tool by hand to reinstall reusable clips without crushing them.
• Verify no tools, loose fasteners, or rags remain near the belt drive.

Step 12: Reconnect Both Batteries

• Clean dirty battery posts and terminals with the battery-terminal cleaning brush.
• Reconnect both negative battery cables only after all alternator connections and covers are secure.
• Use the 10mm socket and torque wrench to tighten each terminal clamp to 5 Nm (44 in-lbs).
• Confirm the clamps cannot rotate by hand. Do not overtighten them.

---

✅ After Repair

• Start the engine and watch the belt from a safe distance. It should run centrally and smoothly.
• Stop the engine immediately if the belt walks sideways, squeals heavily, or strikes another component.
• Use a digital multimeter across the primary battery terminals. With the engine running, system voltage will commonly rise above resting battery voltage and usually stabilize around 13.5-14.8 volts, depending on battery condition and commanded charging strategy.
• Turn on the headlights and cabin blower. Confirm the battery warning lamp remains off and the lights do not pulse.
• Scan for charging-system faults if the warning lamp remains illuminated. A discharged or failing battery can overload a new alternator.
• Reset the clock and restore any lost radio preferences.
• Recheck the mounting area and belt alignment after a short road test.

---

💰 DIY vs Shop Cost

Shop Cost: ₹45,000-₹85,000 equivalent, depending on alternator source and local availability

DIY Cost: ₹28,000-₹60,000 equivalent for parts and normal consumables

You Save: Approximately ₹12,000-₹30,000 by doing it yourself!

Labor rates and imported diesel parts vary widely around Sonīpat. This repair takes a shop approximately 1.5-2.5 hours.

---
