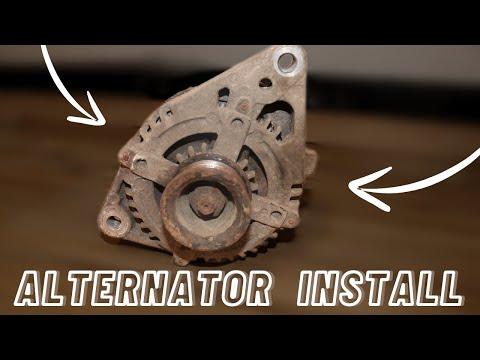

🔧 Tacoma - Alternator Replacement

Replacing the alternator on your Tacoma involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the alternator from the front of the engine. The alternator charges the battery while the engine runs, so a failing one can cause battery warnings, dim lights, or a no-start after driving.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring to prevent short circuits.
• ⚠️ Let the engine cool fully before working near the belt, pulleys, radiator, and exhaust areas.
• ⚠️ Keep fingers away from the serpentine belt path. The belt tensioner is spring-loaded and can snap back.
• ⚠️ Do not pry against plastic engine parts or wiring connectors.
• ⚠️ If using a memory saver, connect it before battery disconnect; otherwise, radio presets and some learned settings may reset.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Torque wrench rated 10-100 Nm
• Battery terminal brush
• Digital multimeter
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• Park your Tacoma on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the engine is cool to the touch.
• Take a photo of the serpentine belt routing before removal. This helps you reinstall it correctly.
• Disconnect the negative battery cable using a 10mm socket. The negative terminal is marked with a minus symbol.
• A serpentine belt is the single long belt that drives engine accessories like the alternator, water pump, and A/C compressor.
• The belt tensioner is a spring-loaded arm that keeps the serpentine belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and tuck it aside so it cannot spring back.
• Use a battery terminal brush to clean corrosion from the battery post if needed.
• Always disconnect negative first.

Step 2: Remove the Engine Cover if Equipped

• Use both hands to lift the plastic engine cover straight upward from its rubber mounts.
• If any clips or small retainers are present, use a trim clip removal tool to release them gently.
• Set the cover aside where it will not get stepped on.

Step 3: Locate the Belt Tensioner

• Stand at the front of your Tacoma and look at the front of the engine.
• Find the spring-loaded belt tensioner pulley in the serpentine belt path.
• Place a 19mm socket with a 1/2-inch drive breaker bar or a serpentine belt tool on the tensioner hex.
• Take a belt-routing photo first.

Step 4: Remove the Serpentine Belt from the Alternator

• Use the 19mm socket and 1/2-inch drive breaker bar to rotate the belt tensioner and release belt tension.
• While holding the tensioner released, slide the belt off the alternator pulley by hand.
• Slowly let the tensioner return to its resting position. Do not let it snap back.
• Remove the belt fully if you are replacing it, or leave it routed around the lower pulleys if reusing it.

Step 5: Disconnect the Alternator Electrical Connector

• Press the locking tab on the alternator plug with your thumb or a flat-blade screwdriver.
• Pull the connector straight out. Do not pull on the wires.
• If the connector is stubborn, use needle-nose pliers gently on the connector body only.

Step 6: Remove the Alternator Output Cable

• Flip open the rubber protective cap on the alternator output terminal.
• Use a 10mm socket or 12mm socket to remove the terminal nut, depending on the replacement alternator terminal style.
• Lift the cable eyelet off the stud and move it aside.
• Reinstall the nut loosely on the old alternator stud so it does not get lost.

Step 7: Remove Any Wire Brackets from the Alternator

• Use a 10mm socket to remove any small wiring bracket bolts attached to the alternator.
• Use a trim clip removal tool to release any plastic harness clips from the alternator bracket.
• Move the wiring aside carefully so it will not be pinched during installation.

Step 8: Remove the Alternator Mounting Bolts

• Support the alternator with one hand so it does not drop when the bolts come out.
• Use a 14mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the upper alternator mounting bolt.
• Use a 14mm socket to remove the lower alternator mounting bolt.
• Wiggle the alternator gently to loosen it from the bracket.

Step 9: Remove the Alternator from the Engine Bay

• Lift the alternator upward and out of the mounting bracket by hand.
• If it is tight in the bracket, gently rock it side to side. Do not pry against the aluminum engine bracket.
• Compare the old and new alternators. Make sure the pulley, electrical plug, mounting ears, and output stud locations match.

Step 10: Install the New Alternator

• Lower the new alternator into the mounting bracket by hand.
• Start both mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8-inch drive ratchet to snug the bolts.
• Use a torque wrench rated 10-100 Nm with a 14mm socket to tighten the alternator mounting bolts to Torque to 43 Nm (32 ft-lbs).

Step 11: Reconnect the Alternator Wiring

• Place the output cable eyelet onto the alternator output stud.
• Use a 10mm socket or 12mm socket to install the terminal nut.
• Use a torque wrench rated 10-100 Nm to tighten the output terminal nut to Torque to 9 Nm (80 in-lbs).
• Snap the rubber protective cap back over the output terminal.
• Push the alternator electrical connector in until it clicks.
• Use a 10mm socket to reinstall any wiring bracket bolts to Torque to 8 Nm (71 in-lbs).

Step 12: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your photo or the under-hood belt diagram.
• Use the 19mm socket and 1/2-inch drive breaker bar or serpentine belt tool to rotate the tensioner again.
• Slide the belt over the alternator pulley last.
• Slowly release the tensioner.
• Check every pulley groove. The belt must sit fully inside each grooved pulley.
• Misrouted belts can damage parts fast.

Step 13: Reinstall the Engine Cover

• Align the plastic engine cover with its rubber mounts.
• Press down by hand until it seats securely.
• If clips were removed, reinstall them using your fingers or a trim clip removal tool.

Step 14: Reconnect the Battery

• Place the negative battery cable back onto the negative battery post.
• Use a 10mm socket to tighten the terminal clamp until snug.
• Do not overtighten the battery terminal. It only needs to be secure and unable to twist by hand.
• Apply battery terminal protector spray if corrosion was present.

Step 15: Check Charging Voltage

• Set a digital multimeter to DC volts.
• Touch the red meter lead to the positive battery terminal and the black lead to the negative battery terminal.
• With the engine off, a healthy battery usually reads about 12.4-12.7 volts.
• Start the engine and check voltage again. A working alternator should typically show about 13.5-14.8 volts at the battery.
• Turn on headlights and the blower fan, then confirm the voltage stays in the charging range.

---

✅ After Repair

• ✅ Listen for belt squeal, grinding, or rubbing noises with the engine running.
• ✅ Look at the belt while the engine idles. It should run straight and smooth on all pulleys.
• ✅ Confirm the battery warning light turns off after startup.
• ✅ Road test your Tacoma for 10-15 minutes, then recheck charging voltage with a digital multimeter.
• ✅ If the battery was weak or repeatedly discharged, fully charge and test it. A bad battery can damage a new alternator.
• ✅ Some idle behavior may feel slightly different after battery disconnect. It usually relearns after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $300-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-1.8 hours.

---
