🔧 Alternator - Replacement

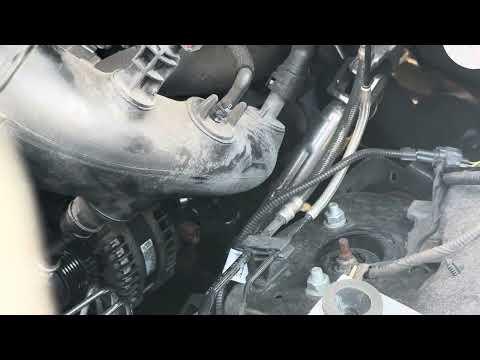

The alternator charges the battery and powers the electrical system while the engine is running. On your F-150, replacement means disconnecting the battery, removing the drive belt, unbolting the alternator, and transferring the electrical connections to the new unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before touching the alternator wiring.
• Keep hands clear of the serpentine belt path and pulley area.
• Let the engine cool fully before starting. The alternator sits near hot components.
• Do not let tools bridge the alternator B+ terminal to ground.
• If the battery is weak or old, replace or test it after alternator work to avoid false charging faults.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Long-handled breaker bar
• Serpentine belt tool (specialty)
• Torque wrench
• Trim clip removal tool
• Flat-blade screwdriver
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical nut cover - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and make sure the engine is cool.
• Save radio and memory settings before disconnecting the battery.
• Disconnect the negative battery cable with a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal.
• Remove the cable and tuck it aside so it cannot spring back to the post.
• Keep the cable away from metal.

Step 2: Remove the engine cover and intake ducting if equipped

• Use your hands and a trim clip removal tool to remove the engine cover and any intake tube or air inlet pieces blocking access to the front of the engine.
• Use an 8mm socket or flat-blade screwdriver for hose clamps if needed.

Step 3: Release belt tension

• Use a serpentine belt tool (specialty) or 15mm socket on the belt tensioner.
• Rotate the tensioner to unload the belt, then slip the belt off the alternator pulley.
• Note the belt routing before removal.

Step 4: Remove the serpentine belt

• Use the 15mm socket and breaker bar to fully release the tensioner.
• Pull the belt off the alternator and slowly lower the tensioner.
• If the belt shows cracks or glazing, replace it now.

Step 5: Unplug the alternator electrical connections

• Use a flat-blade screwdriver to lift any connector lock tab if equipped.
• Unplug the alternator field connector by hand.
• Use a 10mm socket to remove the output cable nut from the B+ terminal.
• Remove the cable and protective boot.

Step 6: Remove the alternator

• Use a 13mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Work the alternator out of the bracket carefully.

Step 7: Install the new alternator

• Set the new alternator into the bracket and start all bolts by hand.
• Use a 13mm socket and torque wrench to tighten the mounting bolts to 37 Nm (27 ft-lbs).
• Reconnect the B+ cable and tighten the nut with a 10mm socket to 10 Nm (89 in-lbs).
• Reconnect the field connector until it clicks in place.

Step 8: Reinstall the belt

• Route the serpentine belt exactly as before.
• Use the serpentine belt tool (specialty) or 15mm socket to rotate the tensioner.
• Slip the belt over the alternator pulley last, then slowly release the tensioner.
• Double-check every groove.

Step 9: Reassemble removed parts

• Reinstall the intake duct, engine cover, and any clips or clamps removed earlier.
• Use the 8mm socket and flat-blade screwdriver as needed.

Step 10: Reconnect the battery and test

• Reconnect the negative battery cable with a 10mm wrench.
• Start the engine and listen for belt noise.
• Check charging voltage at the battery. You want about 13.5-14.8 volts with the engine running.
• Watch for warning lights on the dash.

---

✅ After Repair

• Verify the battery light stays off.
• Check that the belt runs straight and quiet.
• Inspect the alternator area for loose wiring or tools left behind.
• If the battery was deeply discharged, have it tested after driving.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
