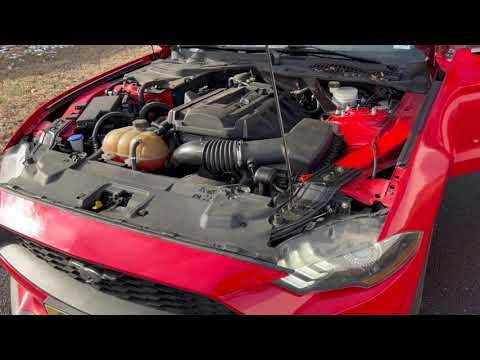

🔧 Alternator - Replacement

This repair replaces the alternator on your Mustang. The alternator charges the battery and powers the electrical system while the engine is running.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

Assumption: Stock 2.3L EcoBoost manual convertible with factory accessory layout.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ The alternator main cable is always battery-hot until the battery is disconnected.
• ⚠️ Let the engine cool fully before working near the turbo, belt, and exhaust-side components.
• ⚠️ Keep fingers away from the serpentine belt path when releasing the belt tensioner.
• ⚠️ Do not pry against plastic intake tubes or electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 3/8-inch extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench rated 5-80 Nm
• Battery terminal brush
• Digital multimeter
• Safety glasses
• Mechanic gloves
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1
• Battery terminal protector - Qty: 1

---

📋 Before You Begin

• Park your Mustang on level ground and set the parking brake.
• Open the hood and let the engine cool completely.
• Save radio presets or settings if needed.
• Disconnect the negative battery cable using a 10mm socket.
• A serpentine belt tool is a long, thin wrench used to move the belt tensioner in tight spaces.
• A digital multimeter is a small electrical tester used here to verify charging voltage after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Use a battery terminal brush to clean corrosion from the terminal if needed.
• Never skip this step.

Step 2: Remove the Engine Appearance Cover

• Lift the engine cover upward by hand to release the rubber grommets.
• Set the cover aside where it will not get stepped on.

Step 3: Remove Intake Ducting for Access

• Use an 8mm socket to loosen the intake tube clamp at the air box.
• Use an 8mm socket to loosen the intake tube clamp at the throttle-body side.
• Use a flat-blade screwdriver to gently release any small hose clips attached to the duct.
• Use a trim clip removal tool to remove any plastic retainers holding the duct in place.
• Lift the intake duct out of the engine bay.
• Take a photo first.

Step 4: Note the Belt Routing

• Use your phone to take a clear photo of the serpentine belt path.
• The serpentine belt is the single long belt that drives the alternator and other accessories.
• Check the belt routing label under the hood if equipped.

Step 5: Release Belt Tension

• Place the serpentine belt tool or 1/2-inch breaker bar onto the belt tensioner.
• The belt tensioner is the spring-loaded pulley arm that keeps the belt tight.
• Rotate the tensioner slowly to remove belt tension.
• Slide the belt off the alternator pulley only.
• Release the tensioner slowly and carefully.
• Do not let it snap back.

Step 6: Disconnect the Alternator Electrical Connector

• Press the locking tab on the alternator electrical connector by hand.
• If the tab is tight, use a flat-blade screwdriver gently to help release it.
• Pull the connector straight off the alternator.
• Do not pull on the wires.

Step 7: Remove the Alternator Main Cable

• Flip open the rubber protective boot on the alternator output terminal.
• Use a 10mm socket or 13mm socket as fitted to remove the alternator main cable nut.
• Move the cable aside carefully.
• Inspect the cable eyelet for heat damage, looseness, or corrosion.
• Torque on installation: 12 Nm (106 in-lbs)

Step 8: Remove the Alternator Mounting Bolts

• Support the alternator with one hand.
• Use a 13mm socket or 15mm socket with a 3/8-inch ratchet and 3/8-inch extension to remove the alternator mounting bolts.
• Keep track of bolt locations if the bolts are different lengths.
• Lift the alternator out of the engine bay.
• Torque on installation: 48 Nm (35 ft-lbs)

Step 9: Compare the Old and New Alternator

• Place both alternators side by side on a clean work surface.
• Confirm the pulley style, mounting ears, electrical connector, and output stud location match.
• Use a 13mm socket only if a protective shipping bracket must be removed from the replacement alternator.

Step 10: Install the New Alternator

• Lower the new alternator into position by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 13mm socket or 15mm socket to snug the bolts evenly.
• Use a torque wrench rated 5-80 Nm to tighten the alternator mounting bolts to 48 Nm (35 ft-lbs).

Step 11: Reconnect the Alternator Wiring

• Place the main cable eyelet back onto the alternator output stud.
• Install the terminal nut using a 10mm socket or 13mm socket.
• Use a torque wrench rated 5-80 Nm to tighten the nut to 12 Nm (106 in-lbs).
• Snap the rubber boot fully over the terminal.
• Push the alternator electrical connector in until it clicks.

Step 12: Reinstall the Serpentine Belt

• Route the belt around the pulleys using your photo as a guide.
• Use the serpentine belt tool or 1/2-inch breaker bar to rotate the tensioner.
• Slide the belt over the alternator pulley last.
• Release the tensioner slowly.
• Look at every pulley and confirm the belt ribs sit fully in the pulley grooves.
• One rib off can shred the belt.

Step 13: Reinstall the Intake Ducting

• Position the intake duct back into place.
• Use an 8mm socket to tighten the intake tube clamps until snug.
• Reconnect any small hoses or retainers using the trim clip removal tool if needed.
• Make sure the duct is fully seated and not rubbing the belt.

Step 14: Reinstall the Engine Cover

• Align the engine cover with its mounting grommets.
• Press downward by hand until it seats firmly.

Step 15: Reconnect the Battery

• Apply battery terminal protector to the clean battery post if desired.
• Install the negative battery cable onto the battery post.
• Use a 10mm socket to tighten the terminal clamp.
• Torque to 5 Nm (44 in-lbs)

---

✅ After Repair

• Start your Mustang and listen for belt squeal, scraping, or clicking.
• Use a digital multimeter at the battery terminals with the engine running.
• Normal charging voltage should usually be about 13.5-14.8 volts.
• Turn on headlights, blower fan, and rear defogger, then confirm voltage stays stable.
• Check that the battery warning light turns off.
• Let the engine idle for 2-3 minutes and recheck the belt alignment.
• If the idle acts strange after battery disconnect, drive normally for a short trip so the powertrain module can relearn idle behavior.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 USD equivalent (parts + labor)

DIY Cost: $250-$550 USD equivalent (parts only)

You Save: $300-$400 USD equivalent by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-1.8 hours.

---
