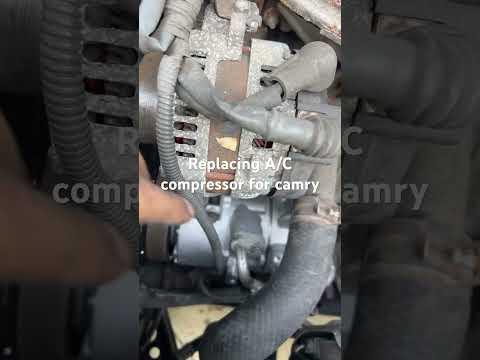

🔧 Camry - A/C Compressor Replacement

Your Camry uses a belt-driven, variable-displacement A/C compressor. Replacement requires removing the drive belt and refrigerant lines, installing the new compressor with fresh O-rings, evacuating the system, and charging it with the exact refrigerant amount printed on the under-hood label.

This job requires certified refrigerant recovery and charging equipment. A practical DIY approach is to have an A/C shop recover the refrigerant, replace the compressor yourself, and return for evacuation, leak testing, and charging.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not loosen an A/C fitting until a shop has completely recovered the refrigerant. Venting refrigerant is dangerous and may be illegal.
• 🧪 Verify the refrigerant type on the under-hood A/C label. Never mix R-1234yf and R-134a equipment or refrigerants.
• 🧤 Liquid refrigerant can cause severe frostbite. Wear gloves and safety glasses whenever servicing the system.
• 🔥 Keep refrigerant away from flames, cigarettes, welding, and very hot surfaces.
• 🔋 Disconnect the negative battery terminal before working near the compressor or drive belt.
• 🚗 Support your Camry with jack stands. Never work beneath a vehicle supported only by a floor jack.
• 🛢️ Keep every refrigerant opening sealed. Moisture or dirt can damage the replacement compressor.
• ⚙️ If the old compressor failed internally and released metal debris, replace the condenser/receiver assembly and expansion valve. Do not install only a compressor into a contaminated system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm six-point socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive breaker bar
• 3/8-inch drive torque wrench rated 5-80 ft-lbs
• Plastic trim-clip removal tool
• Small flat-blade screwdriver
• Serpentine-belt routing diagram marker
• Refrigerant-line sealing caps
• Graduated oil measuring cup marked in milliliters
• R-1234yf refrigerant recovery and recharge station (specialty)
• R-1234yf refrigerant identifier (specialty)
• R-1234yf manifold gauge set (specialty)
• Two-stage vacuum pump rated 5 CFM minimum (specialty)
• Electronic refrigerant scale accurate to 5 grams (specialty)
• Electronic refrigerant leak detector (specialty)
• Dry-nitrogen regulator rated for HVAC service (specialty)
• OEM-capable bidirectional scan tool (specialty)
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Mechanic's gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor for 2.5L gasoline engine - Qty: 1
• Compressor suction-line O-ring - Qty: 1
• Compressor discharge-line O-ring - Qty: 1
• Refrigerant specified on under-hood A/C label - Qty: Exact label-specified charge
• Toyota-specified compressor oil compatible with label refrigerant - Qty: As determined by oil-balancing procedure
• Serpentine drive belt - Qty: 1 if cracked, glazed, contaminated, or stretched
• Condenser/receiver assembly - Qty: 1 if compressor debris is present
• A/C expansion valve - Qty: 1 if compressor debris is present

---

📋 Before You Begin

• 🅿️ Park your Camry on level pavement, select Park, apply the parking brake, and place wheel chocks behind both rear wheels.
• 🏷️ Read the under-hood A/C label and record the refrigerant type and exact charge weight. Charge by weight, not gauge pressure.
• ❄️ Have a qualified A/C shop identify and recover the refrigerant before opening the system.
• 🔍 Determine why the compressor failed. Check for leaks, seized bearings, wiring faults, incorrect pressure-sensor readings, and metal contamination.
• 🧰 Keep the replacement compressor sealed until installation. Do not leave the lines or compressor ports open.
• 🔋 With the ignition off and the key away from the vehicle, disconnect the negative battery terminal using a 10mm socket.
• 🛢️ Read the replacement compressor's oil instructions. Compressor oil must be balanced rather than automatically added.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Wear safety glasses and mechanic's gloves.
• Use an R-1234yf refrigerant identifier to verify that the system is not contaminated.
• Use an R-1234yf recovery station to recover the entire charge through the high- and low-side service ports.
• Confirm that both sides remain at zero pressure before loosening a refrigerant fitting.
• A shop can perform this stage safely.

Step 2: Raise and Support the Vehicle

• Use a floor jack at the front center jacking point.
• Place jack stands beneath the left and right front support points, then lower your Camry securely onto them.
• Gently push the vehicle to verify that it is stable before going underneath.

Step 3: Remove the Lower Engine Covers

• Use a 10mm socket and 3/8-inch drive ratchet to remove the lower-cover screws.
• Use a plastic trim-clip removal tool to release the plastic retainers without breaking them.
• Remove the covers and organize the fasteners by location.

Step 4: Record and Remove the Drive Belt

• Use a serpentine-belt routing diagram marker to draw the belt path or photograph it before removal.
• Fit a 19mm six-point socket and 3/8-inch drive breaker bar onto the automatic belt tensioner. The tensioner is the spring-loaded pulley that maintains belt tension.
• Rotate the tensioner only far enough to release belt tension, then slide the belt from the compressor pulley.
• Slowly return the tensioner to its resting position. Do not let it snap back.
• Remove the belt if it is being replaced; otherwise keep it clean and note its original rotation direction.

Step 5: Disconnect the Compressor Electrical Connector

• Use a small flat-blade screwdriver only if needed to release the connector lock.
• Press the connector tab and pull on the connector housing, not the wires.
• Inspect the terminals for corrosion, heat damage, oil, or looseness.

Step 6: Disconnect the Refrigerant Lines

• Confirm again with the R-1234yf manifold gauge set that both sides are at zero pressure.
• Use a 10mm socket, 3/8-inch drive ratchet, and 6-inch extension to remove the suction- and discharge-line retaining bolts.
• Gently lift each line straight away from the compressor. Do not bend or pry against the aluminum tubes.
• Immediately install refrigerant-line sealing caps on the lines and compressor ports.
• Discard both old O-rings. Never reuse refrigerant seals.

Step 7: Remove the Old Compressor

• Support the compressor with one hand because it is heavier than it appears.
• Use a 12mm or 14mm socket, as fitted to the original mounting bolts, with the 3/8-inch drive ratchet and extension to loosen the compressor bolts evenly.
• Remove the lower bolts last, then lower the compressor through the bottom opening.
• Do not rotate or invert the old compressor until its oil is measured.

Step 8: Inspect for Internal Failure

• Use safety glasses and inspect the old compressor oil and line ports under bright light.
• Look for metallic glitter, gray sludge, black particles, or burned oil.
• If debris is present, stop and replace the condenser/receiver assembly and expansion valve before installing the compressor.
• Do not attempt to flush the replacement compressor. Do not solvent-flush a contaminated parallel-flow condenser.

Step 9: Balance the Compressor Oil

• Use a graduated oil measuring cup to measure the oil drained from the old compressor.
• Check the oil quantity supplied inside the new compressor and follow its manufacturer-specific oil-balancing instructions.
• Use only the Toyota-specified oil compatible with the refrigerant shown on your Camry's under-hood label.
• Do not add a full system oil quantity to a compressor that is already oil-filled. Too much oil reduces cooling and can damage the system.
• Use clean gloves and slowly rotate the new compressor hub by hand several turns after oil balancing.

Step 10: Install the New Compressor

• Keep the compressor ports capped while positioning it in the mounting bracket.
• Start every compressor mounting bolt by hand to avoid damaged threads.
• Use the correct 12mm or 14mm socket and a 3/8-inch drive torque wrench to tighten the mounting bolts evenly.
• Torque the compressor mounting bolts to 25 Nm (18 ft-lbs).

Step 11: Install New Refrigerant-Line O-Rings

• Use mechanic's gloves to remove the port caps immediately before connecting each line.
• Lightly coat the new O-rings with the same clean compressor oil specified for the system.
• Install each O-ring into its proper line groove. Do not twist, stretch, or double-stack the seals.
• Seat each line squarely against the compressor by hand.
• Use a 10mm socket and 3/8-inch drive torque wrench to tighten the line-retaining bolts.
• Torque the refrigerant-line bolts to 9.8 Nm (87 in-lbs).

Step 12: Reconnect the Compressor Wiring

• Push the electrical connector onto the compressor until the lock clicks.
• Pull gently on the connector housing to confirm that it is fully locked.
• Ensure the harness is clipped away from the belt, pulley, and exhaust components.

Step 13: Reinstall the Drive Belt

• Route the drive belt according to the diagram recorded earlier. Make sure every rib sits inside a matching pulley groove.
• Use the 19mm six-point socket and 3/8-inch drive breaker bar to rotate the tensioner.
• Slip the belt over the final smooth pulley, then slowly release the tensioner.
• Inspect every pulley from above and below. A belt offset by one groove must be corrected before starting the engine.

Step 14: Reinstall the Lower Covers

• Position the covers and install the plastic retainers by hand.
• Use a 10mm socket and 3/8-inch drive ratchet to snug the cover screws without overtightening them.
• Use the floor jack to lift your Camry slightly, remove the jack stands, and lower it to the ground.

Step 15: Reconnect the Battery

• Use a 10mm socket and 3/8-inch drive torque wrench to secure the negative battery terminal.
• Torque the negative terminal nut to 5.4 Nm (48 in-lbs).
• Do not start the engine until the A/C system has been evacuated and charged.

Step 16: Leak-Test and Evacuate the System

• Use a dry-nitrogen regulator and electronic refrigerant leak detector to check every opened connection. Never use oxygen or compressed shop air.
• Release the test nitrogen safely after leak testing.
• Connect the R-1234yf manifold gauge set and two-stage vacuum pump.
• Evacuate the system for at least 30 minutes, then isolate the pump and verify that the vacuum holds for at least 10 minutes.
• If vacuum decays, locate and repair the leak before charging.

Step 17: Charge the System by Weight

• Place the approved refrigerant cylinder on an electronic refrigerant scale.
• Use the R-1234yf recovery and recharge station to install the exact charge weight printed on the under-hood A/C label.
• Do not estimate the charge from vent temperature or pressure readings.
• Use an electronic refrigerant leak detector to inspect the compressor fittings and service ports after charging.

Step 18: Check A/C Operation

• Use an OEM-capable bidirectional scan tool to check the air-conditioning control module and engine control module for diagnostic trouble codes.
• Start the engine and set the climate control to maximum cooling, fresh-air mode, and high blower speed.
• Use the scan tool to compare requested compressor operation, refrigerant pressure, and evaporator temperature.
• Observe the belt and compressor pulley from a safe distance. Stop immediately if the belt wanders, squeals, or vibrates.

---

✅ After Repair

• ✅ Confirm that cold air comes from all dashboard vents and that vent temperature remains stable.
• 🔍 Inspect both compressor line connections with an electronic refrigerant leak detector.
• 🛢️ Check beneath the compressor for oil residue, which can indicate a refrigerant leak.
• 🧰 Clear A/C-related fault codes with the OEM-capable bidirectional scan tool, then run another complete scan.
• 🪟 Reinitialize the automatic windows if one-touch operation was lost: fully close each affected window and hold its switch up briefly.
• 🚗 Road-test your Camry with the A/C operating, then recheck the belt alignment and refrigerant connections.
• ⚠️ If cooling is weak, do not add refrigerant blindly. Diagnose charge weight, pressure-sensor data, cooling-fan operation, and expansion-valve performance.

---

💰 DIY vs Shop Cost

Shop Cost: ₹75,000-₹150,000, including imported US-spec parts, refrigerant service, and labor

DIY Cost: ₹35,000-₹80,000 for parts plus professional recovery and recharge

You Save: ₹30,000-₹70,000 by doing the mechanical work yourself!

Labor rates and imported-part availability vary around Panipat. A workshop typically needs 4-6 hours, including evacuation, leak testing, and charging.

---
