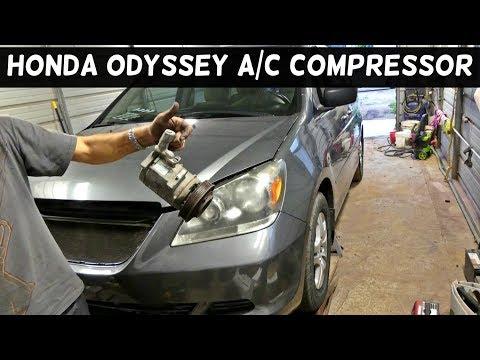

🔧 Odyssey - A/C Compressor Replacement

The A/C compressor is the belt-driven pump that moves refrigerant through the air-conditioning system. On your Odyssey, the refrigerant must be professionally recovered first, then the compressor can be removed from the lower front of the engine, replaced, evacuated, and recharged to the correct Honda-specified charge amount.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ A/C refrigerant can cause frostbite and eye injury. Do not vent refrigerant to the air.
• ⚠️ Refrigerant recovery must be done with approved A/C recovery equipment before opening the system.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.
• ⚠️ Support your Odyssey only with jack stands. Never work under a vehicle held by a jack alone.
• ⚠️ Keep hands away from the serpentine belt path and cooling fans.
• ⚠️ Replace the receiver/drier or condenser/drier desiccant if the system was open for more than a short time, contaminated, or the compressor failed internally.
• ⚠️ If the old compressor seized or sent metal through the system, the condenser, expansion valve, and lines must be inspected/flushed or replaced as needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• A/C refrigerant recovery machine (specialty)
• R-134a manifold gauge set (specialty)
• Vacuum pump 3 CFM minimum (specialty)
• Digital refrigerant scale (specialty)
• Serpentine belt tool 14mm
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• Ratchet wrench 3/8-inch drive
• Breaker bar 1/2-inch drive
• 6-inch extension 3/8-inch drive
• 12-inch extension 3/8-inch drive
• Torque wrench 3/8-inch drive foot-pound
• Torque wrench 1/4-inch drive inch-pound
• Trim clip removal tool
• Plastic trim removal tool set
• Flat-blade screwdriver 1/4-inch
• Needle-nose pliers 6-inch
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Drain pan 8-quart
• Shop towel set
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG 46 refrigerant oil - Qty: As needed to match oil balance
• R-134a refrigerant - Qty: Use under-hood label charge amount
• Serpentine belt - Qty: 1 recommended if worn, cracked, or oil-contaminated
• Receiver/drier or condenser desiccant kit - Qty: 1 if system was contaminated or open too long
• A/C expansion valve - Qty: 1 if compressor failed internally or debris is present

---

📋 Before You Begin

• Park your Odyssey on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Have the refrigerant professionally recovered before removing any A/C lines.
• Check the under-hood A/C label for the exact refrigerant charge amount. Use that label if it differs from any service reference.
• Disconnect the negative battery cable using a 10mm socket.
• A manifold gauge set is a pair of gauges and hoses used to measure A/C pressure and connect a vacuum pump or refrigerant.
• A vacuum pump removes air and moisture from the A/C system before recharge.
• Oil balance means measuring the oil drained from the old compressor and adding the correct amount to the new one.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect an R-134a manifold gauge set to the high-side and low-side service ports.
• Use an A/C refrigerant recovery machine to recover all refrigerant from the system.
• Confirm both gauges read 0 psi before opening any A/C line.
• Never vent refrigerant to atmosphere.

Step 2: Raise and Support the Front

• Use a floor jack rated 3-ton minimum to lift the front of your Odyssey at the front subframe jacking point.
• Place jack stands rated 3-ton minimum under the front side support points.
• Gently lower the vehicle onto the stands and shake the vehicle lightly to confirm it is stable.
• Keep the floor jack rated 3-ton minimum nearby as a backup support, but do not rely on it alone.

Step 3: Remove the Lower Splash Shield

• Use a trim clip removal tool to remove the plastic push clips from the lower engine splash shield.
• Use a 10mm socket and ratchet wrench to remove any 10mm bolts holding the shield.
• Lower the splash shield and set it aside on a shop towel.

Step 4: Remove the Serpentine Belt from the Compressor Pulley

• Locate the automatic belt tensioner at the front of the engine.
• Use a serpentine belt tool 14mm on the tensioner hex to rotate the tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley by hand.
• Slowly release the tensioner with the serpentine belt tool 14mm.
• If replacing the belt, remove it fully and note the belt routing before removal.

Step 5: Disconnect the Compressor Electrical Connector

• From underneath, locate the compressor clutch connector on the compressor body.
• Press the connector lock tab by hand and pull the connector straight off.
• If the tab is stuck, use a flat-blade screwdriver 1/4-inch gently on the release tab.
• Move the harness aside so it cannot get pinched.

Step 6: Remove the A/C Line Manifold from the Compressor

• Place a drain pan 8-quart under the compressor area to catch oil drips.
• Use a 12mm socket, 6-inch extension, and ratchet wrench to remove the A/C line manifold bolt from the compressor.
• Carefully pull the line manifold straight away from the compressor by hand.
• Use needle-nose pliers 6-inch only if an old O-ring sticks to the compressor port.
• Cap or cover the open lines with clean shop towels to keep dirt and moisture out.

Step 7: Remove the Compressor Mounting Bolts

• Support the compressor with one hand from underneath.
• Use a 12mm socket, 12-inch extension, and ratchet wrench to remove the upper compressor mounting bolts.
• Use a 12mm socket, 6-inch extension, and ratchet wrench to remove the lower compressor mounting bolts.
• Keep the bolts organized on a shop towel.

Step 8: Remove the Old Compressor

• Lower the old A/C compressor out through the bottom of the engine bay.
• Use a plastic trim removal tool to gently move splash shield edges or wiring aside if needed.
• Do not pry against aluminum A/C lines.

Step 9: Balance the Compressor Oil

• Hold the old compressor over a drain pan 8-quart and rotate the clutch plate by hand to drain oil from the ports.
• Measure the oil drained from the old compressor using a clean measuring container.
• Drain shipping oil from the new compressor if the compressor instructions require it.
• Add the same amount of PAG 46 refrigerant oil to the new compressor unless the compressor manufacturer provides a different oil-charge instruction.
• Rotate the new compressor clutch plate by hand 10-15 turns to distribute oil.
• Correct oil amount protects the compressor.

Step 10: Install the New Compressor

• Lift the new A/C compressor into position from underneath.
• Start all mounting bolts by hand first.
• Use a 12mm socket, 6-inch extension, and ratchet wrench to snug the lower bolts.
• Use a 12mm socket, 12-inch extension, and ratchet wrench to snug the upper bolts.
• Use a torque wrench 3/8-inch drive and 12mm socket to tighten the compressor mounting bolts.
• Torque to 24 Nm (18 ft-lbs)

Step 11: Install New Compressor O-Rings

• Remove the old manifold O-rings using needle-nose pliers 6-inch or a small flat-blade screwdriver gently.
• Lightly coat the new A/C compressor manifold O-ring set with clean PAG 46 refrigerant oil.
• Install the new O-rings by hand. Make sure they sit flat and are not twisted.

Step 12: Reconnect the A/C Line Manifold

• Remove the shop towels from the open A/C lines.
• Push the line manifold straight into the compressor ports by hand.
• Start the manifold bolt by hand first.
• Use a 12mm socket, 6-inch extension, and ratchet wrench to snug the bolt.
• Use a torque wrench 1/4-inch drive and 12mm socket to tighten the manifold bolt.
• Torque to 9.8 Nm (87 in-lbs)

Step 13: Reconnect the Compressor Connector

• Push the compressor clutch connector onto the compressor by hand until it clicks.
• Use your hand to route the harness away from the belt and pulley.
• Use needle-nose pliers 6-inch to resecure any harness clip if it came loose.

Step 14: Reinstall the Serpentine Belt

• Route the belt over the pulleys using the belt routing label under the hood.
• Use the serpentine belt tool 14mm to rotate the tensioner.
• Slip the belt over the A/C compressor pulley by hand.
• Slowly release the tensioner with the serpentine belt tool 14mm.
• Use a flashlight if needed to confirm the belt ribs are seated correctly on every pulley.

Step 15: Reinstall the Lower Splash Shield

• Raise the splash shield into place by hand.
• Install the plastic push clips using your fingers or a trim clip removal tool.
• Use a 10mm socket and ratchet wrench to install the 10mm bolts.
• Use a torque wrench 1/4-inch drive and 10mm socket to tighten the shield bolts.
• Torque to 5 Nm (44 in-lbs)

Step 16: Lower the Vehicle

• Use the floor jack rated 3-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Odyssey slowly to the ground with the floor jack rated 3-ton minimum.

Step 17: Evacuate the A/C System

• Connect the R-134a manifold gauge set to the high-side and low-side service ports.
• Connect the center hose to the vacuum pump 3 CFM minimum.
• Open both manifold valves and run the vacuum pump for at least 30-45 minutes.
• Close both manifold valves and turn off the vacuum pump.
• Let the system sit for 10-15 minutes and confirm it holds vacuum. If vacuum drops, find and repair the leak before charging.

Step 18: Recharge the A/C System

• Place the R-134a refrigerant cylinder on a digital refrigerant scale.
• Charge the system by weight through the low-side service port using the R-134a manifold gauge set.
• Use the exact charge amount printed on the under-hood A/C label.
• Start the engine only when your manifold gauge instructions call for low-side vapor charging.
• Set the climate control to LO temperature, A/C ON, and blower on high.
• Do not overcharge the system.

Step 19: Final Battery and Leak Check

• Reconnect the negative battery cable using a 10mm socket if it was still disconnected.
• Use a torque wrench 1/4-inch drive and 10mm socket to tighten the battery terminal.
• Torque to 5 Nm (44 in-lbs)
• With the engine running and A/C ON, inspect the compressor manifold joint for oil residue or bubbles using safety glasses and nitrile gloves.
• Listen for abnormal compressor noise.

---

✅ After Repair

• ✅ Confirm the center vents blow cold air after several minutes of operation.
• ✅ Confirm the compressor clutch engages and cycles normally.
• ✅ Check for leaks at the compressor line manifold and service ports.
• ✅ Recheck belt tracking with the engine OFF if you hear squealing or chirping.
• ✅ If the old compressor failed internally, do not keep running the A/C until the condenser, expansion valve, and lines are checked for debris.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,800 (parts + labor + refrigerant service)

DIY Cost: $350-$750 (parts + refrigerant/oil; tool rental may be extra)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
