🔧 Pilot - A/C Compressor Replacement

The A/C compressor on your Pilot pumps refrigerant through the air conditioning system. Replacing it requires safely recovering the refrigerant first, removing the drive belt and refrigerant lines, swapping the compressor, replacing seals, evacuating the system, and recharging it to the correct amount.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure and can cause frostbite or eye injury. Wear safety glasses and gloves.
• ⚠️ Do not vent refrigerant to the atmosphere. The system must be recovered using an A/C recovery machine.
• ⚠️ In many areas, refrigerant handling requires certification and proper equipment.
• ⚠️ Disconnect the negative battery cable before working near the compressor clutch connector and alternator area.
• ⚠️ Keep hands, tools, and clothing away from the serpentine belt path.
• ⚠️ Do not start the engine until the serpentine belt is correctly installed on every pulley.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Torque wrench rated 10-100 ft-lbs
• Serpentine belt tool 14mm adapter
• A/C manifold gauge set R-134a (specialty)
• A/C recovery machine R-134a (specialty)
• Vacuum pump 3 CFM minimum (specialty)
• Digital refrigerant scale (specialty)
• O-ring pick set
• Plastic trim clip remover
• Flathead screwdriver
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Fluid drain pan
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor with clutch - Qty: 1
• A/C compressor line O-ring seal kit - Qty: 1
• Receiver/drier or desiccant element - Qty: 1
• R-134a refrigerant - Qty: Charge by under-hood label specification
• PAG refrigerant oil Honda-compatible - Qty: Amount based on oil drained from old compressor
• Serpentine belt - Qty: 1
• A/C line caps or plugs - Qty: 1 set

---

📋 Before You Begin

• 🚗 Park your Pilot on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• ❄️ Have the refrigerant professionally recovered before opening any A/C line.
• 📋 Read the A/C refrigerant charge amount on the under-hood A/C label. Use that label as the final authority.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• 🔧 A manifold gauge set measures A/C system pressure on the low and high sides.
• 🔧 A vacuum pump removes air and moisture before recharge.
• 🔧 A refrigerant scale measures the exact refrigerant weight going into the system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect an R-134a A/C recovery machine to the high-side and low-side service ports using the A/C manifold gauge set.
• Recover the refrigerant until the machine confirms the system is empty.
• Confirm both gauge readings are at 0 psi before opening the system.
• Do not loosen lines under pressure.

Step 2: Raise and Support the Front

• Use a floor jack rated 3-ton minimum to lift the front of your Pilot.
• Place jack stands rated 3-ton minimum under the front support points.
• Lower the vehicle gently onto the jack stands.
• Verify the vehicle is stable before working underneath.

Step 3: Remove the Lower Splash Shield

• Use a plastic trim clip remover to remove the lower splash shield clips.
• Use a 10mm socket to remove any splash shield bolts.
• Lower the splash shield and set it aside.

Step 4: Remove the Serpentine Belt

• Take a photo of the belt routing before removal.
• Use a serpentine belt tool with a 14mm adapter on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the A/C compressor pulley.
• Slowly release the tensioner.
• Remove the belt fully if replacing it.

Step 5: Disconnect the Compressor Electrical Connector

• Locate the A/C compressor clutch connector on the compressor body.
• Use a flathead screwdriver only if needed to gently release the connector lock.
• Pull the connector straight off by the plastic body, not by the wires.

Step 6: Disconnect the A/C Lines

• Place shop towels under the compressor line connections.
• Use a 10mm socket or 12mm socket, depending on the line bolt fitted, to remove the refrigerant line retaining bolt from the compressor.
• Pull the suction and discharge line block straight away from the compressor.
• Use an O-ring pick set to remove the old O-rings from the line fittings.
• Cap or plug the open A/C lines immediately with A/C line caps or plugs.
• Keep dirt and moisture out.

Step 7: Remove the A/C Compressor

• Support the compressor with one hand from below.
• Use a 12mm socket, 14mm socket, ratchet, and extension to remove the compressor mounting bolts.
• Lower the compressor carefully out from the bottom of the engine bay.
• Keep the old compressor upright so oil does not spill unexpectedly.

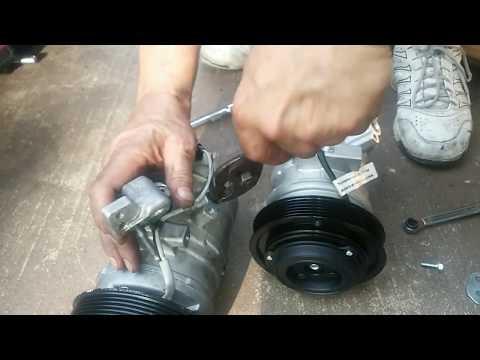

Step 8: Measure Compressor Oil

• Drain oil from the old compressor into a clean measuring container through the line ports.
• Rotate the old compressor clutch plate by hand several turns while draining.
• Drain oil from the new compressor if it arrives prefilled and adjust the amount.
• Add Honda-compatible PAG refrigerant oil to the new compressor equal to the amount drained from the old compressor, unless the compressor supplier gives a different instruction.
• Use shop towels to clean any spilled oil.

Step 9: Install the New A/C Compressor

• Lift the new compressor into position from below.
• Start all compressor mounting bolts by hand first.
• Use a 12mm socket or 14mm socket with a torque wrench to tighten the compressor mounting bolts to Torque to 25 Nm (18 ft-lbs).
• Do not force the compressor against the bracket. It should sit flat.

Step 10: Reconnect the A/C Lines

• Install new O-rings from the A/C compressor line O-ring seal kit onto the suction and discharge line fittings.
• Lightly coat each O-ring with clean PAG refrigerant oil.
• Remove the A/C line caps or plugs.
• Push the line block straight onto the compressor ports.
• Use a 10mm socket or 12mm socket with a torque wrench to tighten the A/C line retaining bolt to Torque to 10 Nm (7 ft-lbs).
• Reconnect the A/C compressor clutch electrical connector by hand until it clicks.

Step 11: Replace the Receiver/Drier or Desiccant Element

• Locate the receiver/drier or desiccant service section on the condenser assembly at the front of your Pilot.
• Use a 10mm socket and plastic trim clip remover to move any intake ducting, upper cover, or access trim as needed.
• Use the correct socket from the 10mm-14mm range to remove the drier retaining fastener or cap, depending on the fitted condenser design.
• Remove the old receiver/drier or desiccant element.
• Install the new receiver/drier or desiccant element quickly to limit moisture exposure.
• Use a torque wrench to tighten the retaining fastener or cap snugly to the condenser supplier specification if provided.
• Moisture ruins A/C performance.

Step 12: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your belt routing photo.
• Use the serpentine belt tool with 14mm adapter to rotate the belt tensioner.
• Slide the belt over the final pulley.
• Release the tensioner slowly.
• Check every pulley groove with a flashlight to make sure the belt is fully seated.

Step 13: Evacuate the A/C System

• Connect the R-134a A/C manifold gauge set to the high-side and low-side service ports.
• Connect the vacuum pump to the manifold gauge set center hose.
• Run the vacuum pump for at least 30-45 minutes.
• Close the manifold valves and turn off the vacuum pump.
• Watch the gauges for 10-15 minutes. Vacuum should hold steady.
• If vacuum drops, stop and find the leak before charging.

Step 14: Recharge the A/C System

• Place the R-134a refrigerant container on a digital refrigerant scale.
• Charge the exact refrigerant weight shown on your Pilot’s under-hood A/C label.
• Start charging through the low-side service port using the A/C manifold gauge set.
• When safe to do so, start the engine, set A/C to MAX, blower to high, and windows open.
• Continue charging until the scale shows the specified total amount has entered the system.
• Close the manifold valves and disconnect the service couplers.

Step 15: Reinstall the Splash Shield

• Raise the splash shield into position.
• Use a plastic trim clip remover by hand to reinstall the clips.
• Use a 10mm socket to reinstall the splash shield bolts.
• Tighten the splash shield bolts snugly. Do not overtighten plastic shield fasteners.

Step 16: Reconnect the Battery and Lower the Vehicle

• Use the floor jack to raise your Pilot slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle to the ground.
• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the battery terminal to Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Run the A/C at MAX cold and high blower speed for 5-10 minutes.
• ✅ Confirm the compressor clutch engages and cycles normally.
• ✅ Check that the center vent temperature drops steadily.
• ✅ Inspect the compressor line connections for oily residue, which can indicate a refrigerant leak.
• ✅ Listen for belt squeal, grinding, or clicking from the compressor area.
• ✅ If the A/C is still warm, do not add refrigerant blindly. Check pressures and leak-test the system.

---

💰 DIY vs Shop Cost

Shop Cost: $1,000-$1,700 (parts + labor)

DIY Cost: $350-$750 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
