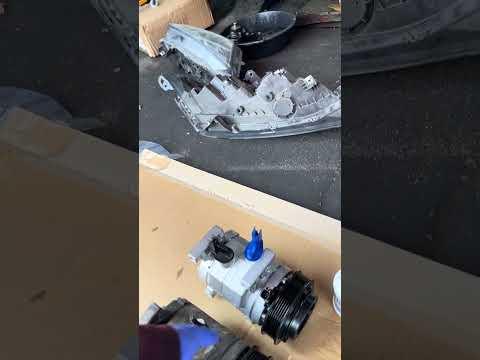

🔧 Wrangler - A/C Compressor Replacement

The A/C compressor pumps refrigerant through the air conditioning system. On your Wrangler, replacing it requires recovering the refrigerant first, removing the serpentine belt, disconnecting the compressor lines, swapping the compressor, then evacuating and recharging the system to the correct amount.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be professionally recovered before opening the A/C system. Do not vent refrigerant to the atmosphere.
• ⚠️ Wear safety glasses and gloves. Refrigerant can cause frostbite and eye injury.
• ⚠️ Disconnect the negative battery cable before working near the compressor clutch connector and engine accessory drive.
• ⚠️ Do not smoke or use open flame near refrigerant oil or A/C service equipment.
• ⚠️ Keep hands, hair, and clothing away from the serpentine belt and pulleys.
• ⚠️ If the old compressor failed internally, the condenser, receiver/drier, and expansion valve may also need replacement and system flushing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• 3-inch socket extension
• Serpentine belt tool 3/8-inch drive
• Torque wrench 10-80 ft-lb
• Torque wrench inch-pound
• A/C manifold gauge set R-134a (specialty)
• Vacuum pump 2-stage R-134a (specialty)
• Refrigerant recovery machine R-134a (specialty)
• Refrigerant scale 0.1 oz accuracy (specialty)
• A/C line disconnect cap plug kit (specialty)
• Flat-blade screwdriver
• Pick tool
• Drain pan 2-quart
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor with clutch - Qty: 1
• A/C compressor line seal kit - Qty: 1
• PAG 46 refrigerant oil - Qty: As needed
• R-134a refrigerant - Qty: 1.25 lb / 20 oz
• Serpentine belt - Qty: 1 if worn, cracked, or oil-contaminated
• A/C condenser/receiver-drier assembly - Qty: 1 if compressor failed internally
• A/C expansion valve - Qty: 1 if compressor failed internally
• A/C flush solvent - Qty: 1 if compressor failed internally

---

📋 Before You Begin

• Park your Wrangler on level ground, set the parking brake, and let the engine cool.
• Have the refrigerant professionally recovered using an R-134a refrigerant recovery machine before opening any A/C line.
• Use a 10mm socket to disconnect the negative battery cable.
• Take a photo of the serpentine belt routing before removing it.
• A manifold gauge set is a hose-and-gauge tool used to measure A/C system pressure and connect the vacuum pump and refrigerant.
• A vacuum pump removes air and moisture from the A/C system before recharge.
• A refrigerant scale weighs the exact refrigerant charge so the system is not overfilled or underfilled.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect an A/C manifold gauge set R-134a to the high-side and low-side service ports.
• Connect the gauge set to a refrigerant recovery machine R-134a.
• Recover the refrigerant until the machine confirms the system is empty.
• Close both manifold valves after recovery is complete.
• Do not vent refrigerant.

Step 2: Disconnect the Battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal clamp.
• Move the cable aside so it cannot spring back onto the battery post.

Step 3: Remove the Engine Cover if Equipped

• Lift the engine cover upward by hand if your Wrangler has one installed.
• Set it aside in a safe place.

Step 4: Remove the Serpentine Belt from the Compressor Pulley

• Use a serpentine belt tool 3/8-inch drive on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the A/C compressor pulley by hand.
• Slowly release the tensioner back to its resting position.
• If replacing the belt, remove it fully from all pulleys.
• Check the belt routing photo.

Step 5: Unplug the Compressor Clutch Connector

• Locate the electrical connector on the A/C compressor clutch.
• Use a flat-blade screwdriver or pick tool to release the connector lock tab.
• Pull the connector straight off by hand.
• Do not pull on the wires.

Step 6: Disconnect the A/C Lines from the Compressor

• Place a drain pan 2-quart under the compressor area to catch small oil drips.
• Use a 13mm socket, 3-inch socket extension, and ratchet to remove the A/C line retaining bolt at the compressor.
• Gently pull the suction and discharge line block away from the compressor by hand.
• Use an A/C line disconnect cap plug kit to cap the open lines and compressor ports immediately.
• Use a pick tool to remove the old seals from the line block.
• Do not reuse old A/C seals.

Step 7: Remove the Compressor Mounting Bolts

• Support the compressor with one hand.
• Use a 15mm socket, 3-inch socket extension, and ratchet to remove the compressor mounting bolts.
• Lower the compressor carefully out of the bracket area.
• Keep the old compressor upright to avoid spilling oil.

Step 8: Measure the Oil from the Old Compressor

• Remove the shipping caps from the old compressor ports by hand.
• Turn the old compressor over above a drain pan 2-quart.
• Rotate the clutch plate by hand several turns to drain as much oil as possible.
• Measure the drained oil amount using a clean graduated container if available.
• Add the same amount of fresh PAG 46 refrigerant oil to the new compressor unless the new compressor instructions state it is already filled to system spec.
• Do not overfill the system with oil.

Step 9: Prepare the New Compressor

• Keep the new compressor capped until installation to prevent moisture entering.
• Add the correct amount of PAG 46 refrigerant oil if needed.
• Rotate the compressor clutch plate by hand 10 turns to distribute oil inside the compressor.

Step 10: Install the New Compressor

• Position the new A/C compressor with clutch onto the engine bracket by hand.
• Start all mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket, 3-inch socket extension, and ratchet to snug the bolts evenly.
• Use a torque wrench 10-80 ft-lb and 15mm socket to tighten the compressor mounting bolts to Torque to 54 Nm (40 ft-lbs).

Step 11: Install New A/C Line Seals

• Use a pick tool to confirm the old seals are removed from the line block.
• Lightly coat the new seals from the A/C compressor line seal kit with clean PAG 46 refrigerant oil.
• Install the new seals by hand onto the line block.
• Do not cut, twist, or pinch the seals.

Step 12: Reconnect the A/C Lines

• Remove the caps from the compressor ports and line block by hand.
• Seat the A/C line block squarely against the compressor by hand.
• Start the retaining bolt by hand.
• Use a 13mm socket, 3-inch socket extension, and ratchet to snug the bolt.
• Use a torque wrench inch-pound and 13mm socket to tighten the A/C line retaining bolt to Torque to 20 Nm (177 in-lbs).

Step 13: Reconnect the Compressor Clutch Connector

• Push the compressor clutch connector on by hand until it clicks.
• Gently tug the connector body to confirm it is locked.
• Route the wiring away from the belt and pulley.

Step 14: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your photo as a guide.
• Use a serpentine belt tool 3/8-inch drive to rotate the tensioner.
• Slide the belt over the final pulley by hand.
• Slowly release the tensioner.
• Use a flat-blade screwdriver only as a pointer to check that the belt ribs sit fully in every pulley groove.
• Do not pry on the belt.

Step 15: Evacuate the A/C System

• Connect the A/C manifold gauge set R-134a to the high-side and low-side service ports.
• Connect the center hose to the vacuum pump 2-stage R-134a.
• Open both manifold valves and run the vacuum pump for at least 30-45 minutes.
• Close both valves and turn off the vacuum pump.
• Watch the gauges for 10-15 minutes. Vacuum should hold steady.
• If vacuum drops, stop and find the leak before charging.

Step 16: Recharge the A/C System

• Place the R-134a refrigerant container on a refrigerant scale 0.1 oz accuracy.
• Connect the refrigerant supply to the center hose of the A/C manifold gauge set R-134a.
• Purge air from the service hose according to the gauge set instructions.
• Charge the system with R-134a refrigerant - 1.25 lb / 20 oz.
• Add refrigerant by weight, not by pressure alone.
• When charging is complete, close the manifold valves and disconnect the service couplers.

Step 17: Reconnect the Battery and Test Operation

• Use a 10mm socket and ratchet to reconnect the negative battery cable.
• Start the engine and set the A/C to maximum cold with the blower on high.
• Watch the compressor clutch. It should cycle on and the center plate should spin when commanded.
• Listen for abnormal grinding, squealing, or belt noise.
• Check the A/C line connections for oily residue, which can indicate a leak.

---

✅ After Repair

• ✅ Verify cold air from the center vents after the system stabilizes.
• ✅ Recheck the compressor line connection for leaks after 10 minutes of A/C operation.
• ✅ Confirm the serpentine belt tracks straight on all pulleys.
• ✅ If the compressor failed internally, replace the condenser/receiver-drier and expansion valve before operating the new compressor.
• ✅ If A/C performance is still poor, inspect for leaks and confirm the refrigerant charge by weight.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 parts + labor

DIY Cost: $300-$750 parts only

You Save: $600-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours, plus recovery and recharge time.

---
