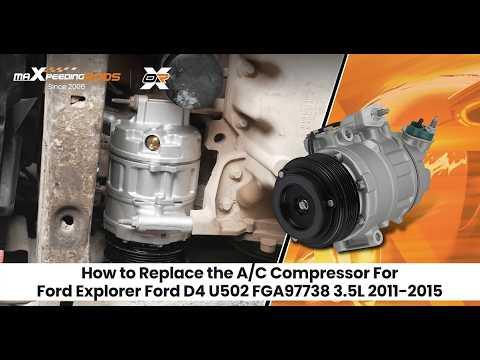

🔧 Explorer - A/C Compressor Replacement

Replacing the A/C compressor requires recovering the R-134a refrigerant, removing the drive belt and lower shields, replacing the compressor and sealing O-rings, then evacuating and accurately recharging the system. Because refrigerant recovery equipment is required, a beginner can perform the mechanical work, but a licensed A/C shop should recover and recharge the refrigerant.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

Assumption: These instructions apply to the stock 3.5L naturally aspirated A/C system; charge the system using the exact refrigerant weight printed on the underhood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent R-134a refrigerant. Have it recovered with certified equipment before loosening any A/C connection.
• 🧊 Liquid refrigerant can cause severe frostbite and eye injury. Wear safety glasses and refrigerant-resistant gloves.
• 🛑 Never work beneath your Explorer while it is supported only by a floor jack. Use correctly rated jack stands.
• 🔥 Work only with a cold engine. The exhaust and cooling-system components are close to the compressor.
• 🔋 Disconnect the negative battery cable after refrigerant recovery and before unplugging the compressor.
• 🧼 Keep every open refrigerant line sealed. Moisture or dirt can damage the new compressor and expansion valve.
• ⚙️ If the old compressor failed internally or released metal debris, stop and have the system professionally inspected. The condenser may require replacement, and prohibited components must not be flushed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• R-134a refrigerant recovery machine (specialty)
• R-134a manifold gauge set (specialty)
• Two-stage A/C vacuum pump (specialty)
• Electronic refrigerant charging scale accurate to 10 grams (specialty)
• A/C line sealing cap set (specialty)
• Serpentine-belt routing tool with 15mm socket
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 19mm deep socket
• 3/8-inch-drive ratchet
• 3/8-inch-drive 150mm extension
• 3/8-inch-drive torque wrench rated 10-80 Nm
• 1/2-inch-drive breaker bar
• 1/2-inch-drive torque wrench rated 50-200 Nm
• Trim-clip removal tool
• Plastic O-ring pick
• Clean graduated measuring cup marked in milliliters
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Safety glasses
• Refrigerant-resistant gloves
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor with clutch - Qty: 1
• A/C compressor suction-line O-ring - Qty: 1
• A/C compressor discharge-line O-ring - Qty: 1
• Receiver-drier or serviceable desiccant element - Qty: 1
• R-134a refrigerant - Qty: Exact underhood-label charge
• Ford-approved PAG compressor oil - Qty: As required after oil balancing
• Serpentine drive belt - Qty: 1 if worn, cracked, glazed, or oil-soaked

---

📋 Before You Begin

• 🚗 Park your Explorer on firm, level ground. Select Park, apply the parking brake, and chock the rear wheels.
• 🏷️ Find the underhood A/C label and record its exact R-134a charge weight. Do not charge by pressure alone.
• ♻️ Use an R-134a recovery machine, or have an A/C shop completely recover the refrigerant before mechanical work begins.
• 🔍 Identify why the original compressor failed. Repair leaks, electrical faults, cooling-fan problems, or contamination before installing the replacement.
• 🧴 Check the replacement compressor instructions for its shipping-oil amount and approved oil specification. Too much or too little oil can damage the system.
• 🔋 After recovery, switch the ignition off, remove the key, and wait at least two minutes before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Put on safety glasses and refrigerant-resistant gloves.
• Connect the R-134a manifold gauge set to the high- and low-pressure service ports. A manifold gauge set controls refrigerant flow and displays both sides of the system pressure.
• Connect the R-134a recovery machine according to its manufacturer’s instructions and recover the complete refrigerant charge.
• Use the manifold gauge set to verify both gauges remain at 0 psi before disconnecting any line.
• Never loosen an A/C fitting to check whether the system is empty.

Step 2: Disconnect the battery

• Use a 10mm socket and 3/8-inch-drive ratchet to loosen the negative battery-terminal clamp.
• Remove the negative cable and position it so it cannot spring back onto the battery post.

Step 3: Raise and support the vehicle

• Place wheel chocks behind the rear tires.
• Use the floor jack at the specified front lifting point, then support your Explorer on jack stands at the approved front support points.
• Lower the vehicle gently onto the stands and confirm it is stable before going underneath.

Step 4: Remove the lower access panels

• Use an 8mm socket, 3/8-inch-drive ratchet, and trim-clip removal tool to remove the lower engine splash-shield fasteners.
• Remove the shield and arrange the fasteners by location.
• If additional side access is necessary, use a 19mm deep socket and 1/2-inch-drive breaker bar to loosen the right-front wheel nuts before lifting, then remove the wheel after the vehicle is supported.
• Use an 8mm socket and trim-clip removal tool to remove the necessary right-front splash-liner fasteners.

Step 5: Remove the serpentine belt

• Photograph or draw the belt routing before removal.
• Place the serpentine-belt routing tool with 15mm socket on the automatic tensioner. An automatic tensioner is the spring-loaded pulley that keeps the belt tight.
• Rotate the tensioner slowly to release belt tension, then slide the belt off the A/C compressor pulley.
• Release the tensioner slowly. Do not allow it to snap back.
• Inspect the belt and tensioner. Replace the belt if it is cracked, glazed, frayed, or contaminated.
• Keep the belt routed around the upper pulleys.

Step 6: Disconnect the compressor electrically

• Use your fingers to release the compressor electrical-connector lock, then unplug the connector without pulling on its wires.
• Release the wiring harness from any compressor retaining clips by hand.
• Inspect the connector for melted plastic, corrosion, or overheated terminals.

Step 7: Disconnect the refrigerant lines

• Place a clean graduated measuring cup beneath the connection to catch any oil that escapes.
• Use a 10mm socket, 150mm extension, and 3/8-inch-drive ratchet to remove the suction and discharge line retaining fastener or fasteners from the compressor manifold.
• Pull the refrigerant-line manifold straight away from the compressor. Do not pry against or bend the aluminum tubes.
• Immediately seal the open lines with the A/C line sealing cap set.
• Use a plastic O-ring pick to remove the old O-rings. Do not scratch the aluminum sealing surfaces.

Step 8: Remove the old compressor

• Support the compressor with one hand because it is heavier than it appears.
• Use a 13mm socket, 150mm extension, and 3/8-inch-drive ratchet to remove the compressor mounting bolts.
• Lower the compressor carefully through the available lower opening. Do not strike the radiator, condenser, or refrigerant lines.

Step 9: Balance the compressor oil

• Hold the old compressor over the clean graduated measuring cup. Rotate its clutch hub by hand and drain the oil through its ports.
• Measure and record the amount removed.
• Use the clean graduated measuring cup to verify the oil already inside the new compressor according to its supplied instructions.
• Adjust the new compressor to the correct replacement amount using Ford-approved PAG compressor oil. Do not automatically add a full system oil charge.
• Turn the new compressor clutch hub by hand approximately 10 revolutions to distribute the oil.
• If metallic debris, dark sludge, or burnt oil comes out of the old compressor, do not continue with a simple compressor-only repair.

Step 10: Install the new compressor

• Position the new compressor against its mounting bracket without using the bolts to pull it into alignment.
• Start every mounting bolt by hand to prevent cross-threading.
• Use a 13mm socket and 3/8-inch-drive torque wrench to tighten the compressor mounting bolts evenly to 25 Nm (18 ft-lbs).

Step 11: Reconnect the refrigerant lines

• Use a plastic O-ring pick to confirm no old O-ring remains in either connection.
• Lightly coat the new suction and discharge O-rings with clean Ford-approved PAG compressor oil using a gloved fingertip.
• Install the new O-rings without twisting them, remove the sealing caps, and immediately position the line manifold squarely against the compressor.
• Start the retaining fastener by hand.
• Use a 10mm socket and 3/8-inch-drive torque wrench to tighten the compressor line fastener to 15 Nm (133 in-lbs).
• Reconnect the compressor electrical connector by hand until its lock clicks.

Step 12: Replace the receiver-drier element

• Use the hand tools and procedure supplied with the vehicle-matched receiver-drier or desiccant service kit.
• Keep the new desiccant sealed until immediately before installation. Desiccant is a drying material that absorbs damaging moisture from the refrigerant system.
• Lubricate its new seals lightly with Ford-approved PAG compressor oil and torque its fasteners to the specifications supplied with the matched part.
• Do not leave the system open while completing unrelated work.

Step 13: Reinstall the serpentine belt

• Route the belt according to the underhood routing diagram, leaving the compressor pulley until last.
• Use the serpentine-belt routing tool with 15mm socket to rotate the tensioner, slide the belt over the compressor pulley, and slowly release the tensioner.
• Use a flashlight and visually check that every belt rib is seated in every grooved pulley.

Step 14: Reinstall the shields and wheel

• Use an 8mm socket, 3/8-inch-drive ratchet, and trim-clip removal tool to reinstall the splash liner and lower engine shield.
• If removed, place the right-front wheel onto the hub and start all wheel nuts by hand.
• Use a 19mm deep socket and 1/2-inch-drive torque wrench to tighten the wheel nuts in a star pattern to 135 Nm (100 ft-lbs) after lowering the tire to the ground.
• Use the floor jack to lift your Explorer slightly, remove the jack stands, and lower it fully.

Step 15: Reconnect the battery

• Install the negative battery cable by hand.
• Use a 10mm socket and 3/8-inch-drive torque wrench to tighten the battery-terminal clamp to 6 Nm (53 in-lbs).
• Do not overtighten the clamp.

Step 16: Evacuate and leak-test the system

• Connect the R-134a manifold gauge set and two-stage A/C vacuum pump.
• Open both manifold valves and operate the vacuum pump for at least 45 minutes.
• Close both manifold valves, switch off the pump, and observe the gauges for at least 15 minutes.
• If vacuum decreases, find and repair the leak before charging. Vacuum testing does not replace an electronic leak test.

Step 17: Recharge by exact weight

• Place the R-134a refrigerant container on the electronic refrigerant charging scale.
• Purge air from the charging hose using the manifold gauge set according to the equipment instructions.
• Add exactly the refrigerant weight printed on your Explorer’s underhood A/C label. Never estimate the charge and never charge by can count.
• Keep the high-side manifold valve closed whenever the engine is running.
• If the full charge cannot be added with the engine off, start the engine and complete vapor charging through the low side according to the manifold equipment instructions.

---

✅ After Repair

• 🌬️ Start the engine, set the blower to high, select panel vents, engage A/C, and select recirculation.
• 👀 Confirm the compressor operates normally and the belt remains centered with no chirping, wobble, or slipping.
• 🔍 Use the manifold gauge set to check system operation, then perform an electronic leak inspection at every disturbed connection.
• 💧 Verify cold vent output and make sure condensate water drains beneath the vehicle.
• 🧪 Recheck the compressor and refrigerant-line connections for oil residue, which can indicate a leak.
• 🔩 Recheck right-front wheel-nut torque after 80-160 km if the wheel was removed.
• 🕒 Allow several drive cycles for the power-window and idle strategies to normalize after battery disconnection.

---
