🔧 Corolla - 12V Battery Replacement

Replacing the 12V battery on your Corolla is a beginner-friendly job. The battery sits under the hood on the driver-side/front corner area and is held in place by a clamp and two cable terminals.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Battery acid can burn skin and eyes. Wear safety glasses and nitrile gloves.
• ⚠️ Always remove the negative cable first. This lowers the chance of sparks or short circuits.
• ⚠️ Do not let metal tools touch both battery posts at the same time.
• ⚠️ Keep the key away from the vehicle while working so the electrical system stays asleep.
• ⚠️ The battery is heavy. Lift straight up with both hands.
• ⚠️ Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3-inch extension
• Battery terminal cleaning brush
• Battery carrying strap
• Torque wrench inch-pound range
• Memory saver 12V OBD-II adapter (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V starting battery - Qty: 1
• Battery terminal protector spray - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2

---

📋 Before You Begin

• Park your Corolla on level ground.
• Shift to Park and set the parking brake.
• Turn off the ignition, headlights, radio, heater, and all accessories.
• Open the hood and support it securely.
• If using a memory saver, plug it into the OBD-II port before disconnecting the battery. A memory saver supplies low power so radio presets and learned settings are less likely to reset.
• If you do not use a memory saver, you may need to reset the clock, radio presets, and automatic window function afterward.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the Battery

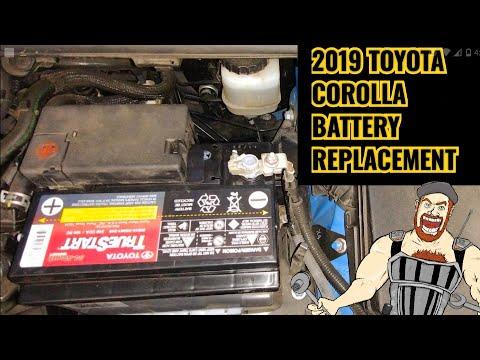

• Open the hood and look for the rectangular battery in the engine bay.
• Use safety glasses and nitrile gloves before touching the battery.
• Identify the battery terminals: negative is marked -, positive is marked +.
• Take a photo first.

Step 2: Disconnect the Negative Cable

• Use a 10mm socket, 3/8-inch ratchet, and 3-inch extension to loosen the nut on the negative battery terminal.
• The negative cable is usually black and connected to the - battery post.
• Lift the cable straight up and move it away from the battery so it cannot spring back.
• Do not remove the nut completely unless needed.

Step 3: Disconnect the Positive Cable

• Flip open the red plastic cover on the positive terminal, if equipped.
• Use the 10mm socket, 3/8-inch ratchet, and 3-inch extension to loosen the positive terminal nut.
• Lift the positive cable off the + battery post.
• Move the cable aside so it does not touch metal or the negative cable.

Step 4: Remove the Battery Hold-Down Clamp

• Use the 10mm socket, 3/8-inch ratchet, and 3-inch extension to loosen the battery hold-down hardware.
• The hold-down clamp is the bracket that keeps the battery from moving while driving.
• Remove the clamp and set it aside in the same orientation.
• Do not drop the J-hooks.

Step 5: Remove the Old Battery

• Attach the battery carrying strap if the battery does not have a handle.
• Lift the battery straight up and out of the tray.
• Keep the battery upright. Do not tilt it sideways.
• Place it on the ground away from children, pets, sparks, and flames.

Step 6: Clean the Battery Tray and Terminals

• Use a battery terminal cleaning brush to clean the inside of both cable terminals.
• Clean the battery tray by hand if dirt or corrosion is present.
• If you see white or blue powder, that is corrosion. Avoid breathing the dust.
• Clean metal makes better contact.

Step 7: Install the New Battery

• Use the battery carrying strap to lower the new battery into the tray.
• Make sure the positive + post is on the same side as before.
• Install the battery terminal anti-corrosion washers onto the battery posts if supplied.
• Reinstall the hold-down clamp using the 10mm socket, 3/8-inch ratchet, and 3-inch extension.
• Tighten the hold-down enough that the battery cannot slide or tip.
• Torque hold-down hardware to 5 Nm (44 in-lbs).

Step 8: Connect the Positive Cable First

• Place the positive cable onto the + battery post.
• Use the 10mm socket, 3/8-inch ratchet, and torque wrench inch-pound range to tighten the terminal nut.
• Torque battery terminal nut to 5.4 Nm (48 in-lbs).
• Close the red positive terminal cover.

Step 9: Connect the Negative Cable Last

• Place the negative cable onto the - battery post.
• Use the 10mm socket, 3/8-inch ratchet, and torque wrench inch-pound range to tighten the terminal nut.
• Torque battery terminal nut to 5.4 Nm (48 in-lbs).
• Spray a light coat of battery terminal protector spray on both terminals after tightening.

Step 10: Check Your Work

• Use your hand to gently wiggle each cable terminal. They should not rotate or lift off.
• Use your hand to gently push the battery. It should not move in the tray.
• Remove the memory saver 12V OBD-II adapter if you used one.
• Close the hood securely.

---

✅ After Repair

• Start your Corolla and let it idle for a minute.
• Check that the battery warning light turns off after startup.
• Set the clock and radio presets if they reset.
• If the driver window auto-up function does not work, fully lower the window, then fully raise it and hold the switch up for 2 seconds.
• Drive normally for a short trip so the idle system can relearn.
• Recycle the old battery at a parts store or battery recycler. Do not throw it in household trash.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $120-$220 (parts only)

You Save: $60-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
