🔧 RAV4 - 12-Volt Battery Replacement

This procedure replaces the 12-volt auxiliary battery in your RAV4 Hybrid. The 12-volt battery powers the computers, locks, lights, and startup electronics; it does not crank the engine like a normal gas-only vehicle.

Difficulty Level: Beginner | Estimated Time: 30-45 minutes

---

⚠️ Safety & Precautions

• ⚠️ Your RAV4 is a hybrid. Do not touch orange high-voltage cables or high-voltage components.
• ⚠️ This repair is for the small 12-volt battery only, located in the rear cargo area.
• ⚠️ Always remove the negative cable first and install it last. This helps prevent sparks and short circuits.
• ⚠️ Wear safety glasses and gloves. Batteries can leak acid and produce explosive gas.
• ⚠️ Keep metal tools away from both battery posts at the same time.
• ⚠️ Do not disconnect or service the hybrid traction battery.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• 3-inch socket extension
• Torque wrench inch-pound range
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Trim clip removal tool
• Memory saver 12-volt OBD-II type (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12-volt AGM auxiliary battery - Qty: 1
• Battery terminal protector spray - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2

---

📋 Before You Begin

• Park your RAV4 on level ground and shift to Park.
• Press the POWER button off and keep the key fob at least 15 feet away.
• Wait at least 5 minutes before disconnecting the battery so control modules can go to sleep.
• If using a memory saver, plug it into the OBD-II port before disconnecting the battery. A memory saver is a small backup power device that helps keep radio presets and learned settings alive.
• Open the rear liftgate before disconnecting the battery. The power liftgate may not work once power is removed.
• Make sure the replacement battery is an AGM type. AGM means absorbed glass mat, a sealed battery design used by many hybrid vehicles.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the 12-volt battery

• Open the rear liftgate.
• Use your hands to lift the rear cargo floor panel.
• Use a trim clip removal tool to remove any cargo trim clips covering the battery access area.
• Locate the 12-volt battery in the rear cargo area, typically on the passenger-side rear corner under the floor trim.
• Take a photo before disassembly.

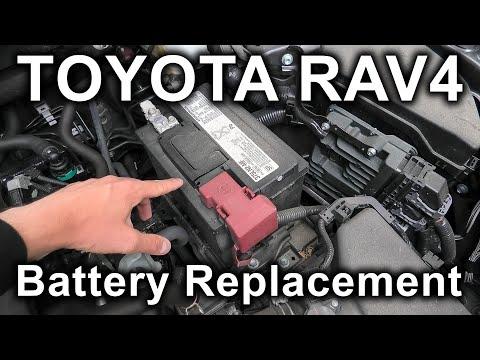

Step 2: Identify the battery terminals

• Find the negative terminal marked with a minus sign -.
• Find the positive terminal marked with a plus sign + and usually covered by a red protective cover.
• Use safety glasses and nitrile gloves before touching the battery cables.

Step 3: Disconnect the negative cable first

• Use a 10mm socket, 3-inch extension, and 3/8-inch ratchet to loosen the negative terminal clamp nut.
• Twist the cable clamp gently by hand and lift it off the battery post.
• If it is stuck, use a battery terminal puller. A battery terminal puller safely lifts a tight cable clamp without damaging the battery post.
• Move the negative cable aside so it cannot spring back and touch the battery post.

Step 4: Disconnect the positive cable

• Open the red positive terminal cover by hand.
• Use a 10mm socket and 3/8-inch ratchet to loosen the positive terminal clamp nut.
• Lift the positive cable clamp off the battery post.
• Move the positive cable aside carefully.
• Do not touch body metal with tools.

Step 5: Remove the battery hold-down

• Use a 12mm socket, 3-inch extension, and 3/8-inch ratchet to remove or loosen the battery hold-down bracket fasteners.
• Lift the hold-down bracket away and set it aside.
• Keep the bracket and fasteners together so they are easy to reinstall.

Step 6: Remove the old battery

• Use both hands to lift the battery straight up and out of the tray.
• Keep the battery upright at all times.
• Batteries are heavy, so lift with your legs and avoid bending your back.
• Inspect the battery tray for corrosion or loose debris.

Step 7: Clean the cable terminals

• Use a battery terminal cleaning brush to clean the inside of each cable clamp.
• Use the same brush to lightly clean the new battery posts if needed.
• Do not remove too much metal. Just make the contact surfaces bright and clean.

Step 8: Install the new battery

• Place the new 12-volt AGM auxiliary battery into the tray in the same direction as the old battery.
• Make sure the positive post is on the same side as the positive cable.
• Install the battery hold-down bracket by hand first.
• Use a 12mm socket and torque wrench to tighten the hold-down fasteners to Torque to 13 Nm (10 ft-lbs).
• Do not overtighten the bracket.

Step 9: Connect the positive cable first

• Place an anti-corrosion washer over the positive battery post.
• Push the positive cable clamp fully down onto the positive post.
• Use a 10mm socket and torque wrench to tighten the positive terminal clamp nut to Torque to 5.4 Nm (48 in-lbs).
• Close the red positive terminal cover by hand.

Step 10: Connect the negative cable last

• Place an anti-corrosion washer over the negative battery post.
• Push the negative cable clamp fully down onto the negative post.
• Use a 10mm socket and torque wrench to tighten the negative terminal clamp nut to Torque to 5.4 Nm (48 in-lbs).
• A small spark may occur when the terminal touches the post. This can be normal because modules wake up.

Step 11: Protect the terminals

• Use battery terminal protector spray on the installed cable clamps.
• Do not spray inside open electrical connectors.
• Make sure the positive terminal cover is fully seated.

Step 12: Reinstall the cargo trim

• Use your hands to position the cargo trim panels back into place.
• Use the trim clip removal tool or your fingers to reinstall any removed trim clips.
• Lower the rear cargo floor panel.

---

✅ After Repair

• Press the brake pedal and press the POWER button. Confirm the READY light appears on the dash.
• Check that the clock, windows, locks, interior lights, and liftgate operate normally.
• If the auto up/down window feature does not work, initialize each window: hold the switch down until fully open, then hold it up until fully closed, and keep holding for about 2 seconds.
• If warning lights appear, drive your RAV4 normally for a short trip. Some systems may relearn after battery power is restored.
• Recycle the old battery at a battery retailer or parts store. Do not throw it in household trash.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $170-$280 (parts only)

You Save: $80-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
