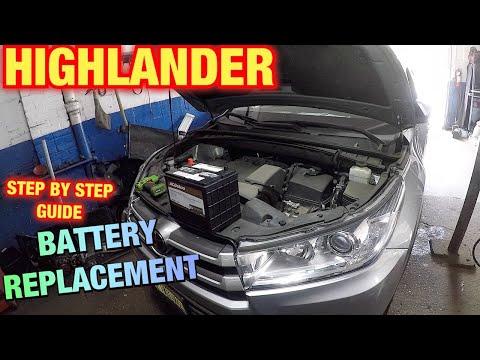

🔧 Highlander - 12-Volt Battery Replacement

Replacing the battery in your Highlander involves removing the terminals and hold-down bracket, then installing a correctly sized replacement battery. No battery registration or scan-tool programming is required.

Difficulty Level: Beginner | Estimated Time: 20-30 minutes

Assumption: These instructions are for the original under-hood battery installation.

---

⚠️ Safety & Precautions

• 🧤 Wear gloves and safety glasses because batteries contain corrosive acid.
• 🔥 Keep sparks, cigarettes, and open flames away from the battery.
• 🔑 Switch the ignition off, remove the key, and wait at least 90 seconds before disconnecting the battery.
• ➖ Disconnect the negative terminal first and reconnect it last to reduce short-circuit risk.
• 🔧 Never allow a metal tool to touch both battery terminals or the positive terminal and body metal simultaneously.
• 🏋️ The battery is heavy. Keep it upright and use a lifting strap if necessary.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm combination wrench
• 10mm socket
• 1/4-inch-drive ratchet
• 1/4-inch-drive torque wrench rated 2-20 Nm
• Battery terminal cleaning brush
• Battery lifting strap rated 23 kg minimum
• Digital multimeter rated 20 volts DC minimum
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12-volt Group 24F automotive battery - Qty: 1
• Battery terminal protectant - Qty: 1

Choose a battery with the positive and negative posts in the original 24F orientation and a cold-cranking rating that meets or exceeds the label on the original battery.

---

📋 Before You Begin

• 🅿️ Park your Highlander on level ground, apply the parking brake, switch off all electrical accessories, and open the hood.
• 🪟 Lower the driver’s window before disconnecting power so you cannot accidentally lock yourself out.
• ⏳ Switch the ignition off and wait at least 90 seconds before touching the battery connections.
• 💾 Save radio presets if desired. A memory saver is not required, and battery registration is not needed.
• 📸 Take a photo of the battery orientation and cable routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate and Inspect the Battery

• Open the hood and locate the battery on the driver’s side of the engine compartment.
• Use safety glasses and mechanic gloves before handling the battery.
• Confirm that the replacement battery matches the original case size, post orientation, and terminal type.

Step 2: Disconnect the Negative Terminal

• Identify the negative terminal by the minus symbol and black cable.
• Use a 10mm combination wrench to loosen the negative terminal clamp nut.
• Twist the clamp gently and lift it straight off the post. Move it aside where it cannot spring back.
• Do not pull or pry on the cable itself.

Step 3: Disconnect the Positive Terminal

• Lift the red protective cover from the positive terminal.
• Use a 10mm combination wrench to loosen the positive terminal clamp nut.
• Lift the clamp from the post and position it away from the battery.
• Never bridge positive power to body metal.

Step 4: Remove the Battery Hold-Down

• The hold-down is the metal bar that prevents the battery from moving.
• Use a 10mm socket and 1/4-inch-drive ratchet to loosen and remove the hold-down fasteners.
• Remove the hold-down bar while noting its position and hook orientation.
• Place the fasteners somewhere safe so they do not fall into the engine compartment.

Step 5: Remove the Old Battery

• Fit the battery lifting strap securely around the battery.
• Lift the battery straight upward with both hands. Keep it upright to prevent acid leakage.
• Remove the plastic insulating jacket or tray insert if it remains attached to the old battery. It must be transferred to the replacement battery when originally equipped.

Step 6: Clean and Inspect the Battery Tray

• Use the battery terminal cleaning brush to remove light corrosion from the inside of both cable clamps.
• Inspect the tray, cables, and clamps for cracks, severe corrosion, or loose connections.
• Do not install the new battery if a cable clamp is cracked or cannot tighten securely.

Step 7: Install the New Battery

• Transfer the original insulating jacket to the replacement battery if equipped.
• Use the battery lifting strap to lower the new battery into the tray with the terminals in the original orientation.
• Make sure the battery sits flat and no cables are trapped underneath it.

Step 8: Reinstall the Hold-Down

• Position the hold-down bar exactly as it was originally installed.
• Start the fasteners by hand to prevent cross-threading.
• Use the 10mm socket and 1/4-inch-drive torque wrench to tighten the hold-down fasteners evenly to 5 Nm (44 in-lbs).
• Push the battery firmly by hand. It must not slide or rock.
• Do not crush the plastic battery case.

Step 9: Connect the Positive Terminal

• Install the positive cable clamp fully onto the positive post first.
• Use the 10mm socket and 1/4-inch-drive torque wrench to tighten the clamp nut to 5.4 Nm (48 in-lbs).
• Apply a light coating of battery terminal protectant after the connection is tight.
• Close the red protective cover over the positive terminal.

Step 10: Connect the Negative Terminal

• Install the negative cable clamp fully onto the negative post last.
• Use the 10mm socket and 1/4-inch-drive torque wrench to tighten the clamp nut to 5.4 Nm (48 in-lbs).
• Apply a light coating of battery terminal protectant after tightening.
• Gently try to rotate both clamps by hand. Neither clamp should move.

Step 11: Check Battery Voltage

• Set the digital multimeter to 20 volts DC. DC means the direct-current setting used for automotive batteries.
• Place the red probe on the positive post and the black probe on the negative post.
• A fully charged battery at rest should normally read approximately 12.6 volts.
• Start the engine and check again. Typical charging voltage is approximately 13.5-14.8 volts.

---

✅ After Repair

• 🚗 Start the engine and confirm that it cranks normally and no battery warning light remains on.
• 🪟 Reinitialize any automatic window that lost its one-touch function: close the window completely, then hold the switch in the upward position for about one second.
• 🕒 Reset the clock and restore saved audio settings if necessary.
• ⚠️ Some warning lights may appear immediately after reconnecting power. Start the engine, turn the steering wheel smoothly from lock to lock, center it, and drive a short distance. If a warning remains, have the system scanned.
• 🔍 Recheck that the battery cannot move and both terminal clamps remain secure.
• ♻️ Return the old lead-acid battery to a battery retailer or authorized recycler. Do not place it in household waste.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,000-₹12,000 (parts + labor)

DIY Cost: ₹6,000-₹10,500 (parts only, before old-battery exchange credit)

You Save: ₹500-₹1,500 by doing it yourself!

Labor rates around Panipat vary. This repair typically takes a shop approximately 0.3-0.5 hour.

---
