🔧 Tucson - Spark Plug Replacement

On your Tucson, spark plugs fire the air/fuel mix. Worn plugs can cause misfires, rough idle, poor MPG, and hard starts. This job is straightforward because the plugs sit under the ignition coils on top of the engine.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid burns and prevent thread damage in the aluminum cylinder head.
• ⚠️ Keep dirt out of the spark plug holes; debris can damage the engine.
• ⚠️ If you disconnect the battery, use a 10mm wrench and remove the negative terminal first.
• ⚠️ Do not over-tighten spark plugs; stripped threads are expensive to repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (5-60 Nm range)
• 10mm socket
• 14mm spark plug socket
• 3/8" drive extension set (3" and 6")
• Trim removal tool
• Small flathead screwdriver
• Compressed air blow gun
• Flashlight
• Feeler gauge set (0.020"-0.060")

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs (iridium, correct fit for Tucson 1.6L Turbo) - Qty: 4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 1 hour).
• Open the hood and remove any loose items around the engine bay.
• Take a quick photo before unplugging anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Pull straight up on the plastic engine cover to release the rubber grommets.
• Use a trim removal tool if it feels stuck, and lift evenly at the corners.

Step 2: Unplug and remove the ignition coils

• Each cylinder has an ignition coil (the “coil” makes the spark).
• Press the electrical connector tab and unplug each coil; use a small flathead screwdriver gently if the tab is stubborn.
• Remove the coil hold-down bolt using a 10mm socket and 1/4" drive ratchet.
• Pull the coil straight up and out. Twist slightly, then pull.

Step 3: Clean around the spark plug wells

• Blow out each spark plug hole with a compressed air blow gun and use a flashlight to verify it’s clean.
• This prevents dirt from falling into the cylinder when the plug comes out.

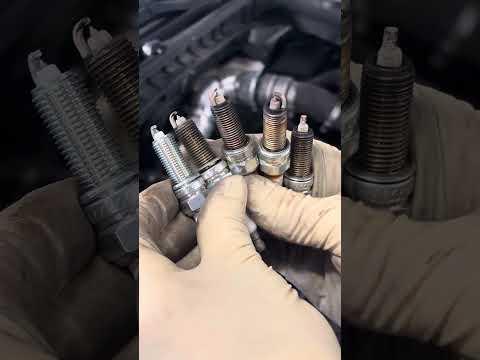

Step 4: Remove the old spark plugs

• Install a 14mm spark plug socket with a 3/8" drive extension (6") and 3/8" drive ratchet.
• Turn counterclockwise to loosen, then remove the plug fully.
• Repeat for all 4 cylinders.

Step 5: Check and prep the new spark plugs

• Use a feeler gauge set to verify the plug gap matches the spec on the box/fitment notes.
• If your plugs are iridium (most OE-style are), do not bend the center electrode to “gap” them; replace if the gap is incorrect.
• Apply a tiny amount of dielectric grease inside each coil boot (the rubber tip that seals to the plug).
• Skip anti-seize unless plug maker requires it.

Step 6: Install and torque the new spark plugs

• Start each plug by hand using the 14mm spark plug socket and extension only (no ratchet at first) to avoid cross-threading.
• Once hand-tight, torque each spark plug using a 3/8" drive torque wrench.
• Torque to 20 Nm (15 ft-lbs)

Step 7: Reinstall ignition coils and connectors

• Push each coil straight down until fully seated.
• Install the coil hold-down bolts using a 10mm socket.
• Torque to 9 Nm (80 in-lbs)
• Reconnect each coil electrical connector until it clicks.

Step 8: Reinstall the engine cover

• Line up the engine cover grommets and press down firmly at the corners until it snaps in place.

---

✅ After Repair

• Start the engine and let it idle for 30-60 seconds; it should run smooth.
• If you get a check engine light or shaking, shut it off and re-check coil connectors and that each coil is fully seated.
• Take a short test drive and re-check for any warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
