🔧 Spark Plugs - Replacement

Your Corolla uses a coil-on-plug ignition setup, so each spark plug sits under its own ignition coil. Replacing them on time helps prevent misfires, rough idle, and fuel economy loss.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work on a completely cool engine. Hot aluminum threads can strip easily.
• Disconnect the negative battery terminal if you want extra safety around the ignition system.
• Do not drop debris into the spark plug wells.
• Use a spark plug socket and a torque wrench. Overtightening can damage the cylinder head.
• Keep ignition coils and plug wires clean and dry.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• 6-inch extension
• Spark plug socket 5/8 inch
• Torque wrench
• Gap gauge
• Trim panel tool
• Needle-nose pliers
• Compressed air or air blower
• Dielectric grease
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plug set, iridium - Qty: 4

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before starting.
• If the engine cover is installed, remove it first.
• Clean around each plug well first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• If equipped, pull up on the plastic engine cover to release it from its grommets. No tools are usually needed.
• Set it aside in a safe place.

Step 2: Disconnect the ignition coils

• Use your hands to press the lock tab on each coil connector and unplug it.
• If a connector is stuck, use a small trim panel tool gently.
• Do one coil at a time.

Step 3: Remove the ignition coils

• Use a 10mm socket and ratchet to remove each coil hold-down bolt.
• Pull each coil straight up and out of the plug well.
• Keep the coils in order so they go back in the same cylinders.

Step 4: Clean the spark plug wells

• Use compressed air or an air blower to clear dirt from each plug well.
• This keeps debris from falling into the cylinder when the plug is removed.

Step 5: Remove the old spark plugs

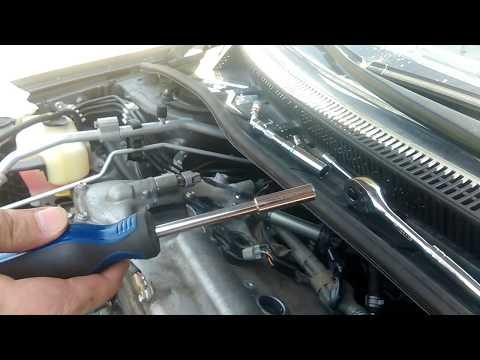

• Use a 5/8 inch spark plug socket, 6-inch extension, and ratchet to loosen and remove each spark plug.
• Turn slowly at first. If one feels tight, stop and work it back and forth gently.
• Do not force a stuck plug.

Step 6: Check and set the new plug gap

• Use a gap gauge to verify the gap on each new spark plug.
• For your Corolla, the gap should match the specification on the plug box or OEM spec for this engine.
• Handle iridium plugs carefully. Do not bend the center electrode.

Step 7: Install the new spark plugs

• Thread each spark plug in by hand first using the spark plug socket and extension only.
• Once seated, use a torque wrench to tighten each plug to 18 Nm (13 ft-lbs).
• Do not overtighten.

Step 8: Reinstall the ignition coils

• Apply a small amount of dielectric grease inside each coil boot if desired.
• Push each coil straight down onto its spark plug.
• Install the 10mm coil bolts and tighten to 8 Nm (71 in-lbs).
• Reconnect each coil electrical connector until it clicks.

Step 9: Reinstall the engine cover

• Press the cover back into place if equipped.
• Make sure it sits flat and secure.

---

✅ After Repair

• Start the engine and listen for smooth idle.
• Check for a check engine light or misfire symptoms.
• If the engine runs rough, recheck coil connectors and plug seating.
• Take a short test drive and confirm normal acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $140-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
