🔧 F-150 - Spark Plug Replacement

Replacing the spark plugs on your F-150 helps restore smooth idle, strong acceleration, and proper fuel economy. The 5.0L V8 uses 8 spark plugs, one for each cylinder, and the ignition coils must be removed to access them.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine to avoid burns and damaged aluminum cylinder head threads.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils.
• ⚠️ Blow dirt away from each spark plug well before removal so debris does not fall into the engine.
• ⚠️ Do not use an impact tool on spark plugs; the cylinder heads are aluminum and threads can be damaged.
• ⚠️ Replace one spark plug at a time so coil connectors and plug locations do not get mixed up.

---

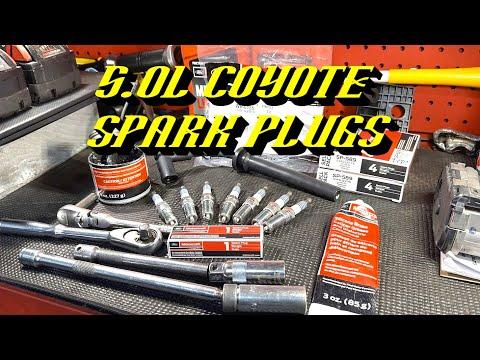

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 5/8-inch spark plug socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive 3-inch extension
• 3/8-inch drive universal joint
• Torque wrench rated 5-30 ft-lbs
• Spark plug gap gauge
• Compressed air nozzle
• Plastic trim clip remover
• Needle-nose pliers
• Dielectric grease
• Clean shop towels
• Nitrile gloves
• Safety glasses

A spark plug socket has a rubber insert that holds the plug so it does not fall into the engine bay.

A universal joint lets the socket bend slightly for tight rear plugs.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Spark plugs - Qty: 8
• Ignition coil boots - Qty: 8
• Intake tube clamp or PCV hose clips - Qty: As needed

Coil boots are the rubber sleeves between each ignition coil and spark plug; replace them if hardened, cracked, oil-soaked, or carbon-tracked.

---

📋 Before You Begin

• 🅿️ Park your F-150 on level ground, shift to Park, and set the parking brake.
• ❄️ Let the engine cool fully. Warm aluminum threads are easier to damage.
• 🔋 Use a 10mm socket to loosen the negative battery cable nut, then move the cable away from the battery terminal.
• 🧼 Keep the new spark plugs in their boxes until installation so the tips stay clean.
• 📏 Check the new spark plug gap before installation. Use the under-hood emissions label or plug manufacturer spec if supplied pre-gapped.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover and Intake Tube

• Use a 10mm socket to remove any engine appearance cover fasteners, then lift the cover off if equipped.
• Use an 8mm socket to loosen the air intake tube clamps at the throttle body and air filter housing.
• Use needle-nose pliers to release any hose clamps attached to the intake tube.
• Lift the intake tube out of the way and cover the throttle opening with a clean shop towel.
• Take a photo before unplugging hoses.

Step 2: Choose One Cylinder and Clean the Area

• Start with the easiest front spark plug so you can learn the process.
• Use a compressed air nozzle to blow dirt away from the ignition coil and spark plug well.
• Wear safety glasses while using compressed air.
• Clean first. Remove parts second.

Step 3: Disconnect the Ignition Coil Connector

• Use your fingers or a plastic trim clip remover to gently lift the connector lock tab.
• Pull the electrical connector straight off the ignition coil.
• Do not pull on the wires.
• Plastic tabs break easily with age.

Step 4: Remove the Ignition Coil

• Use an 8mm socket and 3/8-inch drive ratchet to remove the ignition coil retaining bolt.
• Twist the ignition coil gently by hand to loosen the rubber boot.
• Pull the coil straight upward and set it aside in order.
• Inspect the coil boot for cracks, white tracking marks, oil, or swelling.

Step 5: Blow Out the Spark Plug Well

• Use a compressed air nozzle again to clean the deep spark plug well.
• This step prevents grit from falling into the cylinder when the plug comes out.
• Do not skip this step.

Step 6: Remove the Old Spark Plug

• Use a 5/8-inch spark plug socket, 6-inch extension, and 3/8-inch drive ratchet to loosen the spark plug.
• Turn counterclockwise slowly. If it feels stuck, tighten it slightly, then loosen again.
• Remove the spark plug carefully with the spark plug socket.
• If access is tight near the firewall, use the 3-inch extension and universal joint.
• Slow and steady protects the threads.

Step 7: Check the New Spark Plug

• Use a spark plug gap gauge to verify the gap before installation.
• Do not force the gauge between the electrodes.
• Do not apply anti-seize unless the spark plug manufacturer specifically requires it; most modern coated plugs install dry.
• Keep grease, dirt, and oil away from the spark plug tip.

Step 8: Install the New Spark Plug by Hand First

• Place the new spark plug into the 5/8-inch spark plug socket with the 6-inch extension attached.
• Thread it in clockwise by hand using only the extension at first.
• If it does not turn easily, remove it and start again.
• Once seated, use a torque wrench and 5/8-inch spark plug socket to tighten it to Torque to 15 Nm (11 ft-lbs).
• Hand-starting prevents cross-threading.

Step 9: Reinstall the Ignition Coil

• Apply a small amount of dielectric grease inside the end of the coil boot.
• Push the ignition coil straight down onto the spark plug until fully seated.
• Use an 8mm socket and torque wrench to install the ignition coil bolt to Torque to 6 Nm (53 in-lbs).
• Reconnect the ignition coil connector until it clicks.

Step 10: Repeat for the Other 7 Spark Plugs

• Repeat Steps 2 through 9 for each remaining cylinder.
• Use the 3-inch extension and universal joint for tight rear spark plugs as needed.
• Work one plug at a time so no dirt enters open plug holes.
• Patience matters more than speed.

Step 11: Reinstall the Intake Tube and Engine Cover

• Remove the clean shop towel from the throttle opening.
• Reinstall the air intake tube into position.
• Use an 8mm socket to tighten the intake tube clamps until snug.
• Reconnect all hoses and clips removed earlier using needle-nose pliers if needed.
• Use a 10mm socket to reinstall the engine cover fasteners if equipped.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the battery terminal.
• Use a 10mm socket to tighten the terminal nut until secure.
• Do not overtighten the battery terminal.

---

✅ After Repair

• ✅ Start the engine and let it idle for 1-2 minutes.
• ✅ Listen for misfires, ticking, vacuum leaks, or hissing around the intake tube.
• ✅ If the idle is rough, shut the engine off and recheck coil connectors and intake hoses.
• ✅ Take a short test drive and confirm smooth acceleration.
• ✅ If a check engine light was present before, use a scan tool to clear codes only after confirming the repair is complete.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
