🔧 Spark Plugs - Replacement

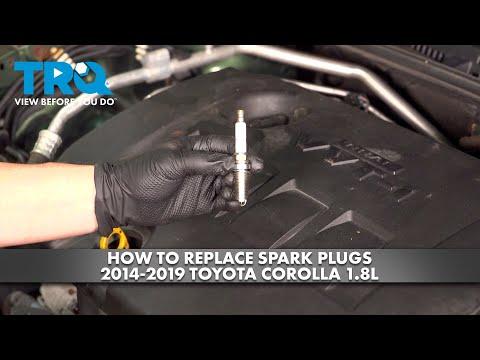

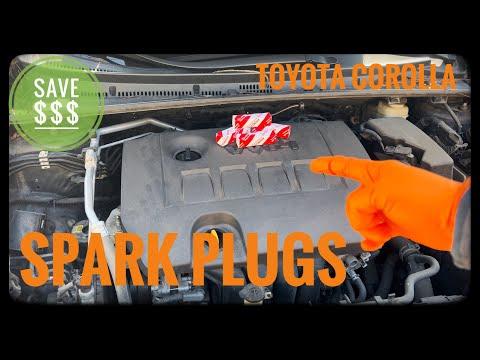

Changing the spark plugs on your Corolla helps restore smooth starting, fuel economy, and proper engine power. The 1.8L engine uses four long-life iridium spark plugs located under the ignition coils on top of the engine.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before starting; spark plugs thread into the aluminum cylinder head and can be damaged if removed hot.
• ⚠️ Disconnect the negative battery cable to prevent accidental ignition coil activation.
• ⚠️ Do not allow dirt or tools to fall into the spark plug wells.
• ⚠️ Do not gap iridium spark plugs unless the plug maker specifically allows it; the fine electrode can be damaged easily.
• ⚠️ Start each new spark plug by hand first to avoid cross-threading, which means damaging the threads by installing the plug crooked.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3/8-inch 6-inch extension
• 14mm thin-wall spark plug socket
• 3/8-inch torque wrench
• Needle-nose pliers
• Compressed air can
• Clean shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs - Qty: 4
• Dielectric grease - Qty: 1 small tube

---

📋 Before You Begin

• Park your Corolla on level ground, shift to Park, and set the parking brake.
• Let the engine sit until it is cool to the touch.
• Open the hood and remove the key from the vehicle area.
• Use a 10mm socket to loosen the negative battery terminal, then move the cable aside so it cannot spring back onto the battery post.
• The spark plug socket is a deep socket with a rubber insert or magnet that holds the spark plug while you lift it out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Grip the plastic engine cover with both hands.
• Pull straight upward to release it from the rubber mounting grommets.
• Set it aside on a clean towel.
• Pull evenly, not at an angle.

Step 2: Clean Around the Ignition Coils

• Put on safety glasses.
• Use a compressed air can to blow loose dust and grit away from the top of the engine.
• Wipe around each ignition coil with clean shop towels.
• The ignition coil is the small black electrical part sitting directly above each spark plug.

Step 3: Disconnect the First Ignition Coil Connector

• Work on one spark plug at a time so parts do not get mixed up.
• Press the locking tab on the ignition coil connector with your thumb.
• If the connector is stubborn, use needle-nose pliers gently on the connector body, not the wires.
• Pull the connector straight back from the coil.

Step 4: Remove the First Ignition Coil

• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch 6-inch extension to remove the coil hold-down bolt.
• Twist the ignition coil gently left and right to loosen the rubber boot.
• Pull the coil straight upward and set it in order on a clean towel.
• Keep each coil with its cylinder.

Step 5: Remove the Old Spark Plug

• Place the 14mm thin-wall spark plug socket onto the 3/8-inch 6-inch extension and 3/8-inch ratchet.
• Lower the socket straight down into the spark plug well until it seats fully on the plug.
• Turn counterclockwise slowly to loosen the spark plug.
• Once loose, spin it out by hand using the extension only.
• Lift the old spark plug out carefully.
• If the plug feels stuck, stop and tighten it slightly, then loosen again slowly.

Step 6: Inspect the Old Spark Plug

• Look at the tip of the old plug before throwing it away.
• Light tan or gray coloring is normal.
• Wet oil, heavy black soot, or a broken tip can point to another engine issue.
• Use clean shop towels to keep the area clean while you inspect.

Step 7: Install the New Spark Plug by Hand

• Place one new iridium spark plug into the 14mm thin-wall spark plug socket.
• Lower it straight into the spark plug well using the 3/8-inch 6-inch extension.
• Turn clockwise by hand only for several turns.
• If it does not turn smoothly, remove it and start again.
• Do not apply anti-seize unless the spark plug manufacturer specifically requires it; most modern iridium plugs come with coated threads.

Step 8: Torque the New Spark Plug

• Attach the 3/8-inch torque wrench to the 3/8-inch 6-inch extension and 14mm thin-wall spark plug socket.
• Tighten the spark plug to 18 Nm (13 ft-lbs).
• Do not overtighten; the cylinder head is aluminum and the threads can strip.
• Stop as soon as the wrench clicks.

Step 9: Reinstall the Ignition Coil

• Apply a very small amount of dielectric grease inside the end of the coil boot only.
• Dielectric grease is a non-conductive silicone grease that helps prevent moisture from sticking the boot to the plug.
• Push the ignition coil straight down until it seats on the spark plug.
• Install the coil hold-down bolt using the 10mm socket, 3/8-inch 6-inch extension, and 3/8-inch torque wrench.
• Tighten the ignition coil bolt to 10 Nm (89 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 10: Repeat for the Remaining Three Spark Plugs

• Repeat Steps 3 through 9 for the other three ignition coils and spark plugs.
• Use the same 10mm socket, 14mm thin-wall spark plug socket, 3/8-inch extension, 3/8-inch ratchet, and 3/8-inch torque wrench.
• Replace all four spark plugs as a set.
• One cylinder at a time prevents mix-ups.

Step 11: Reinstall the Engine Cover

• Line up the engine cover with the rubber grommets.
• Press down firmly by hand until the cover snaps into place.
• Use clean shop towels to remove fingerprints or loose dirt from the work area.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch ratchet to snug the terminal clamp.
• Do not overtighten the battery terminal.
• Make sure the clamp does not rotate by hand.

---

✅ After Repair

• Start your Corolla and let it idle for 1-2 minutes.
• The idle may be slightly uneven for a few seconds after the battery was disconnected.
• Listen for ticking, misfires, or a flashing check engine light.
• Take a short test drive and confirm smooth acceleration.
• If the check engine light comes on or the engine shakes, recheck that all ignition coil connectors are fully clicked in.
• Reset the clock and any preferred radio settings if needed after battery disconnect.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $45-$95 (parts only)

You Save: $135-$225 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours.

---
