🔧 Outback - Spark Plug Replacement

Changing the spark plugs on your Outback helps restore smooth idle, strong acceleration, and fuel economy. The 3.6L flat-six engine places the plugs low on both sides of the engine, so access is tight but manageable with patience and the right extensions.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine to avoid burns and damaged aluminum cylinder head threads.
• ⚠️ Disconnect the negative battery cable before unplugging ignition coils.
• ⚠️ Do not use anti-seize on modern coated spark plug threads unless the plug manufacturer specifically requires it; it can cause over-tightening.
• ⚠️ Keep dirt out of the spark plug wells. Dirt can fall into the engine when a plug is removed.
• ⚠️ Start every new spark plug by hand first. Cross-threading means the plug is going in crooked and can damage the cylinder head.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm spark plug socket with rubber insert
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench
• 3-inch 3/8-inch drive extension
• 6-inch 3/8-inch drive extension
• 3/8-inch drive universal joint
• Flat-blade screwdriver
• Needle-nose pliers
• Spark plug gap gauge
• Compressed air blow gun
• Fender cover
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Iridium spark plugs - Qty: 6
• Dielectric grease - Qty: 1
• Intake air duct clamp replacement - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park your Outback on level ground, shift to Park, and set the parking brake.
• ❄️ Let the engine cool fully. A cold engine protects the aluminum threads in the cylinder heads.
• 🔋 Use a 10mm socket to disconnect the negative battery cable. Move the cable aside so it cannot touch the battery post.
• 🧼 Clean around the left and right sides of the engine with compressed air before removing coils.
• 🔎 A universal joint is a flexible socket adapter that lets the socket bend slightly in tight spaces.
• 🔎 A spark plug gap gauge checks the small space between the center and ground electrodes at the end of the plug.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Use your hands to lift the plastic engine cover upward from its rubber mounts.
• Set the cover aside where it will not get stepped on.
• Pull straight up gently.

Step 2: Disconnect the Negative Battery Cable

• Use a 10mm socket and 3/8-inch drive ratchet to loosen the negative battery terminal nut.
• Lift the cable off the battery post and tuck it aside.
• Do not let the cable spring back onto the battery terminal.

Step 3: Remove the Air Intake Duct for Right-Side Access

• Use a flat-blade screwdriver to loosen the air duct clamp at the throttle body.
• Use a flat-blade screwdriver to loosen the clamp at the air filter housing.
• Use needle-nose pliers to release any small hose clamps attached to the duct.
• Remove the intake duct and place it aside.
• Take a photo before removal.

Step 4: Clear Working Room on the Left Side

• Use a 10mm socket and 3/8-inch drive ratchet to remove any small brackets blocking access to the left-side ignition coils.
• Move hoses or wiring only enough to create room. Do not pull hard on connectors.
• If a plastic clip is holding a harness, use a flat-blade screwdriver to gently release it.

Step 5: Unplug the First Ignition Coil

• Choose one ignition coil to work on first. Do one plug at a time so nothing gets mixed up.
• Press the connector lock tab with your thumb or a flat-blade screwdriver.
• Pull the connector straight off the ignition coil.
• Do not pull on the wires themselves.

Step 6: Remove the Ignition Coil Bolt

• Use a 10mm socket, 3-inch extension, and 3/8-inch drive ratchet to remove the ignition coil retaining bolt.
• Set the bolt in a safe tray or cup.
• Twist the ignition coil gently, then pull it straight out of the spark plug well.
• Inspect the coil boot for oil, cracking, or carbon tracking. Carbon tracking looks like thin black lightning marks.

Step 7: Clean the Spark Plug Well

• Put on safety glasses.
• Use a compressed air blow gun to blow dirt out of the spark plug well before removing the plug.
• Keep your face away from the area while blowing air.

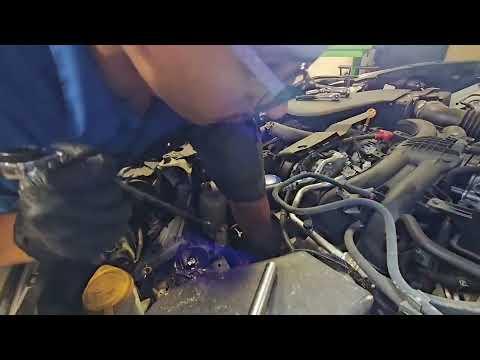

Step 8: Remove the Old Spark Plug

• Use a 14mm spark plug socket, 6-inch extension, universal joint, and 3/8-inch drive ratchet.
• Turn counterclockwise slowly to loosen the spark plug.
• Once loose, continue turning by hand with the extension to reduce the chance of thread damage.
• Lift the old spark plug out with the spark plug socket.
• Slow and straight prevents damage.

Step 9: Check the New Spark Plug

• Use a spark plug gap gauge to verify the new plug gap is correct for the 3.6L engine: 0.039-0.043 in.
• Do not forcefully bend iridium plug electrodes. They are delicate.
• Confirm the new plug matches the old plug length and seat style before installation.

Step 10: Install the New Spark Plug by Hand

• Place the new spark plug into the 14mm spark plug socket.
• Use the 6-inch extension by hand only at first. Do not use the ratchet yet.
• Turn clockwise gently until the plug is fully seated by hand.
• If it feels tight right away, stop, remove it, and start again.

Step 11: Torque the Spark Plug

• Attach the 3/8-inch drive torque wrench to the 14mm spark plug socket and extension.
• Tighten the spark plug to Torque to 17.5 Nm (13 ft-lbs).
• Do not over-tighten. The cylinder head is aluminum.

Step 12: Reinstall the Ignition Coil

• Apply a small amount of dielectric grease inside the ignition coil boot. Dielectric grease helps keep moisture out of the rubber boot.
• Push the ignition coil straight onto the new spark plug until it seats fully.
• Use a 10mm socket and 3/8-inch drive torque wrench to install the coil bolt.
• Tighten the ignition coil bolt to Torque to 6.4 Nm (57 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 13: Repeat for the Remaining Five Spark Plugs

• Repeat Steps 5 through 12 for the other five ignition coils and spark plugs.
• Use the 3-inch extension, 6-inch extension, and universal joint as needed for tight angles.
• Work patiently around the frame rails. The rear plugs are the tightest.
• One plug at a time.

Step 14: Reinstall Brackets and Intake Duct

• Use a 10mm socket and 3/8-inch drive ratchet to reinstall any brackets removed for access.
• Reinstall the intake duct between the air filter housing and throttle body.
• Use a flat-blade screwdriver to tighten the intake duct clamps snugly.
• Use needle-nose pliers to reinstall any hose clamps removed earlier.
• Make sure the duct is fully seated with no air leaks.

Step 15: Reconnect the Battery and Engine Cover

• Use a 10mm socket and 3/8-inch drive ratchet to reconnect the negative battery cable.
• Tighten the terminal nut snugly; do not crush the terminal.
• Push the engine cover back onto its rubber mounts by hand.

---

✅ After Repair

• ✅ Start your Outback and let it idle for 1-2 minutes.
• ✅ Listen for misfires, ticking, or hissing from the intake duct area.
• ✅ If the idle is rough, shut the engine off and recheck coil connectors and the intake duct clamps.
• ✅ The clock, radio presets, and auto window function may need resetting after battery disconnect.
• ✅ For the driver window auto function, fully lower the window, then fully raise it and hold the switch up for about 2 seconds.
• ✅ Road test gently for 5-10 minutes and confirm smooth acceleration.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
