🔧 Civic - Side View Mirror Replacement

This repair replaces a damaged exterior side view mirror assembly on your Civic. The mirror is mounted through the front door, so you’ll remove the interior door trim panel, unplug the mirror wiring, unbolt the mirror, then install the new one.

Difficulty Level: Beginner | Estimated Time: 1-2 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors to reduce the chance of short circuits.
• ⚠️ The door trim panel uses plastic clips that can break if pried too hard; use plastic trim tools only.
• ⚠️ Support the mirror with one hand when removing the final nut so it does not fall and scratch the paint.
• ⚠️ Do not overtighten the mirror nuts; the mirror base and door sheet metal can crack or distort.
• ⚠️ If your replacement mirror includes a camera or blind-spot indicator, handle the wiring carefully and do not pull on the harness.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• 6-inch socket extension
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Panel clip remover
• Torque wrench inch-pound range
• Painter’s tape
• Magnetic parts tray
• Shop towel
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left side view mirror assembly - Qty: 1 if replacing driver side
• Right side view mirror assembly - Qty: 1 if replacing passenger side
• Door trim panel clips - Qty: 3-6 recommended
• Mirror mounting nuts - Qty: 3 if damaged or missing

---

📋 Before You Begin

• Park your Civic on level ground with the parking brake fully engaged.
• Lower the window on the door you are working on. This gives you more room to hold and guide the mirror.
• Turn the ignition off and remove the key/fob from the vehicle area.
• Open the hood and use a 10mm socket with a ratchet handle to disconnect the negative battery cable.
• Apply painter’s tape around the outside mirror base to help protect the paint.
• A trim tool is a plastic pry tool used to release interior panels without scratching them.
• A torque wrench is a tool that tightens fasteners to a measured amount, so they are not too loose or too tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Put on safety glasses and mechanic gloves.
• Use a 10mm socket and ratchet handle to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and set it aside where it cannot spring back.
• Do not touch both battery posts.

Step 2: Remove the Interior Door Handle Trim

• Open the door fully and support it with your body so it does not swing while you work.
• Use a small flat-blade screwdriver wrapped in a shop towel to gently open the small cover behind the interior door handle.
• Use a Phillips #2 screwdriver to remove the screw behind the handle cover.
• Place the screw in a magnetic parts tray.

Step 3: Remove the Door Pull Screw

• Look inside the door pull pocket where you grab the door to close it.
• Use a small flat-blade screwdriver wrapped in a shop towel to lift the screw cover if equipped.
• Use a Phillips #2 screwdriver to remove the screw from the door pull area.
• Place the screw in the magnetic parts tray.

Step 4: Release the Door Trim Panel Clips

• Start at the lower rear corner of the door panel.
• Slide a plastic trim removal tool between the door panel and the metal door shell.
• Pry gently until the first clip pops free.
• Use a panel clip remover to continue releasing the clips along the bottom and sides of the panel.
• Work slowly to save the clips.

Step 5: Lift Off the Door Trim Panel

• Hold the panel with both hands.
• Lift the panel straight upward to unhook it from the top edge near the window glass.
• Do not pull the panel far away yet because wiring connectors are still attached.
• Rest the lower edge of the panel against your leg or a protected surface.

Step 6: Unplug the Door Panel Connectors

• Use your fingers to press the locking tabs on the power window switch connector and courtesy light connector, if equipped.
• If a connector is tight, use a small flat-blade screwdriver to gently depress the lock tab.
• Set the door trim panel on a clean shop towel with the finished side facing up.
• Do not pull on wires; pull on the plastic connector body only.

Step 7: Remove the Mirror Corner Trim Cover

• Locate the small triangular trim cover at the front upper corner of the door, inside from the mirror.
• Use a plastic trim removal tool to gently pry the triangular cover away from the door.
• Set the cover aside on the shop towel.

Step 8: Disconnect the Side View Mirror Wiring

• Find the mirror wiring connector inside the door near the mirror mounting area.
• Press the connector lock with your fingers or a small flat-blade screwdriver.
• Pull the connector apart by the plastic body.
• Free the wiring harness from any small retaining clips by hand or with the plastic trim removal tool.

Step 9: Remove the Mirror Mounting Nuts

• Support the outside mirror with one hand.
• Use a 10mm socket, 6-inch socket extension, and ratchet handle to remove the 3 mirror mounting nuts.
• Keep the nuts in the magnetic parts tray.
• Hold the mirror firmly while removing the last nut so it does not drop.

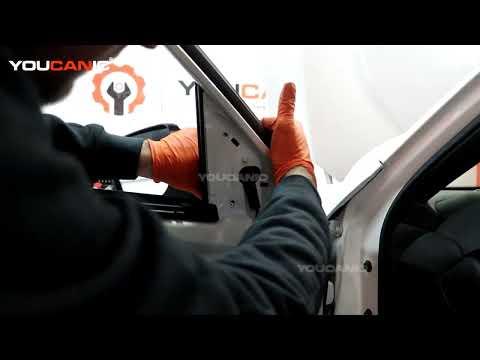

Step 10: Remove the Old Mirror

• Guide the mirror wiring and connector through the hole in the door.
• Pull the mirror straight away from the outside of the door.
• Use a shop towel to clean dirt from the mirror mounting area.
• Check that the old foam gasket did not stick to the door.

Step 11: Install the New Mirror

• Feed the new mirror wiring connector through the door opening.
• Line up the mirror studs with the holes in the door.
• Hold the mirror flush against the door with one hand.
• Start all 3 mirror mounting nuts by hand to prevent cross-threading.

Step 12: Tighten the Mirror Mounting Nuts

• Use a 10mm socket, 6-inch socket extension, and torque wrench inch-pound range to tighten the 3 mirror nuts evenly.
• Torque to 8 Nm (71 in-lbs).
• If your torque wrench reads ft-lbs only, use about 6 ft-lbs.
• Snug is enough here.

Step 13: Reconnect the Mirror Wiring

• Plug the mirror connector into the door harness until it clicks.
• Use your fingers to reinstall the wiring into the original retaining clips.
• Make sure the wiring is not pinched by the window track or door panel area.

Step 14: Test the Mirror Before Reassembly

• Temporarily reconnect the negative battery cable using a 10mm socket and ratchet handle.
• Turn the ignition to ON without starting the engine.
• Use the mirror switch to move the new mirror up, down, left, and right.
• If equipped, check the turn signal indicator, blind-spot indicator, and heated mirror operation.
• Turn the ignition off and disconnect the negative battery cable again with the 10mm socket.

Step 15: Reinstall the Mirror Corner Trim Cover

• Line up the triangular trim cover with its clips.
• Press it into place by hand until each clip snaps in.
• Do not use metal tools on this trim piece.

Step 16: Reconnect the Door Panel Connectors

• Bring the door trim panel close to the door.
• Reconnect the power window switch connector and any courtesy light connector by hand.
• Listen or feel for a click at each connector.

Step 17: Reinstall the Door Trim Panel

• Hook the top of the door panel over the window ledge first.
• Line up the plastic clips with the holes in the metal door shell.
• Press around the sides and bottom of the panel by hand until the clips snap in.
• If a clip is missing or broken, replace it with a new door trim panel clip before snapping the panel in.

Step 18: Reinstall the Door Screws and Covers

• Use a Phillips #2 screwdriver to reinstall the screw in the door pull area.
• Use a Phillips #2 screwdriver to reinstall the screw behind the interior door handle.
• Snap the screw covers back into place by hand.
• Do not overtighten the screws because they thread into plastic.

Step 19: Reconnect the Battery

• Install the negative battery cable onto the battery post.
• Use a 10mm socket and ratchet handle to tighten the terminal nut.
• Torque to 5 Nm (44 in-lbs).
• Make sure the cable does not rotate by hand after tightening.

Step 20: Final Function Check

• Turn the ignition to ON.
• Use the mirror switch to confirm full mirror movement.
• Check the door lock switch, window switch, and speaker operation.
• Open and close the door to confirm the panel is secure and does not rattle.
• Remove the painter’s tape from the outside of the door.

---

✅ After Repair

• ✅ Reset the auto-up window function if it lost calibration after battery disconnect: fully close the window and hold the switch up for a few seconds.
• ✅ Adjust the side mirror to your normal driving position.
• ✅ Check for wind noise during a short drive; a gap at the mirror base can mean the gasket is folded or the mirror is not seated flat.
• ✅ If warning lights appear after battery reconnect, drive straight for a short distance; some Honda systems relearn after normal driving.
• ✅ If a mirror with camera or blind-spot features does not work, recheck the connector seating before replacing more parts.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$850 per side (parts + labor)

DIY Cost: $120-$550 per side (parts only)

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours per side.

---
