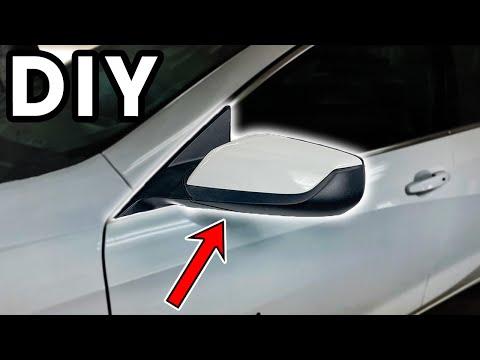

🔧 Malibu - Side View Mirror Replacement

Replacing either outside mirror involves removing the interior triangular trim, unplugging the mirror, and removing three mounting nuts. These instructions cover the complete power-mirror assembly on either front door; transfer the painted cover if your replacement mirror does not include one.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour per mirror

---

⚠️ Safety & Precautions

• ⚠️ Wear gloves because broken mirror glass can have sharp edges.
• 🔋 Disconnect the battery before unplugging the mirror or tweeter wiring.
• 🚪 Support the mirror before removing the final nut so it cannot fall against the door.
• 🛡️ Do not pry with a metal screwdriver against painted surfaces or the side window.
• ⚡ Wait at least two minutes after disconnecting the battery before handling door wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch drive ratchet
• 1/4-inch drive 6-inch extension
• 10mm torque wrench rated 2-20 Nm
• Plastic trim-removal tool set
• Small flat-blade screwdriver
• Magnetic pickup tool
• Masking tape
• Cut-resistant work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left or right power side-view mirror assembly - Qty: 1 per side
• Mirror mounting foam seal - Qty: 1 per side if not included
• Interior mirror trim-panel retainers - Qty: As needed
• Painted mirror cover - Qty: 1 per side if not reusable or included

---

📋 Before You Begin

• 🅿️ Park your Malibu on level ground, select Park, apply the parking brake, and lower the window on the side being repaired.
• 🪟 Lowering the window gives you a safe handhold and prevents accidental glass damage.
• 🎨 Apply masking tape around the mirror base and interior triangular trim to protect the paint and trim.
• 🔑 Switch the ignition off and keep the key or transmitter away from the vehicle.
• 🔋 Open the hood. Use a 10mm socket to loosen the negative battery-terminal nut, then isolate the cable so it cannot touch the terminal.
• 🧩 A trim-removal tool is a smooth plastic lever designed to release clips without scratching panels.
• ℹ️ Assumption: The replacement matches your Malibu’s original power-mirror connector and installed features.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Interior Mirror Trim

• Insert a plastic trim-removal tool between the upper edge of the triangular interior trim panel and the door.
• Gently pry the panel inward to release its retaining clips, then lift it away from the door.
• Do not twist the panel sharply; a tweeter speaker may be attached behind it.
• Work slowly to avoid breaking the retaining clips.

Step 2: Disconnect the Tweeter if Equipped

• Support the trim panel with one hand.
• Use a small flat-blade screwdriver to depress the tweeter connector lock, then unplug it by holding the connector body.
• Set the trim panel in a clean, protected location.

Step 3: Expose the Mirror Wiring

• Carefully peel the foam insulation or water shield away from the mirror mounting area by hand.
• Do not tear or discard the insulation. It helps prevent wind noise and water intrusion.
• Locate the mirror electrical connector behind the triangular opening.

Step 4: Unplug the Mirror

• Press the locking tab on the mirror connector by hand and pull the two connector halves apart.
• Use a small flat-blade screwdriver only if the locking tab is difficult to press.
• Release the wiring harness from any retaining clip so it can pass through the door opening.
• Pull on the connector body, not the wires.

Step 5: Remove the Mirror Mounting Nuts

• Hold the outside mirror firmly with one hand or have a helper support it.
• Use a 10mm socket, 6-inch extension, and 1/4-inch drive ratchet to remove the three mirror mounting nuts.
• Keep the socket level so a nut does not fall into the door. Use a magnetic pickup tool if one is dropped.
• Leave one nut loosely installed until you are ready to remove the mirror.

Step 6: Remove the Old Mirror

• Remove the final nut with the 10mm socket while supporting the mirror.
• From outside the door, pull the mirror straight away while guiding its connector and wiring through the opening.
• Use a plastic trim-removal tool only if the foam seal is lightly stuck to the door.
• Clean the mounting surface with a dry cloth and inspect it for bent metal or damaged paint.

Step 7: Transfer the Painted Cover if Required

• Skip this step if the replacement mirror already has the correct finished cover.
• Use a plastic trim-removal tool to release the cover’s clips from the old mirror, working around the perimeter gradually.
• Align the cover with the replacement mirror and press evenly by hand until every clip snaps into place.
• Do not press directly on the mirror glass.

Step 8: Install the Replacement Mirror

• Confirm that the foam seal is correctly seated on the replacement mirror. Install a new seal if it is torn, compressed, or missing.
• Guide the electrical connector through the door opening and place the mirror studs into their mounting holes.
• Hold the mirror flush against the door while starting all three nuts by hand.
• Starting the nuts by hand prevents cross-threading, which means damaging the threads by installing a nut at an angle.

Step 9: Tighten the Mirror Nuts

• Use a 10mm torque wrench and extension to tighten the three mounting nuts evenly.
• Torque to 9 Nm (80 in-lbs).
• Do not overtighten the nuts; excessive force can crack the mirror base or distort the door panel.

Step 10: Reconnect the Wiring

• Push the mirror electrical connectors together by hand until the lock clicks.
• Gently tug the connector bodies to verify they are fully locked.
• Secure the harness in its original retaining clip and keep it away from the window mechanism.
• Press the foam insulation or water shield back into its original position by hand.

Step 11: Reinstall the Interior Trim

• If equipped, reconnect the tweeter plug by hand until it clicks.
• Align the triangular trim panel and its retaining clips with the door openings.
• Press the panel firmly by hand until all clips are seated and the edges lie flat.
• Remove the masking tape from the door and mirror base.

Step 12: Reconnect the Battery

• Place the negative battery cable onto its terminal.
• Use a 10mm socket and torque wrench to tighten the terminal nut securely without crushing the terminal.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Switch the ignition on and operate the mirror through its full up, down, left, and right movement.
• 🔊 Confirm the door tweeter works if its connector was unplugged.
• 🪟 Run the window completely down and up while listening for contact with the mirror wiring.
• 🔍 Check that the mirror base sits evenly against the door and that the foam seal is not visible or folded.
• 🚗 Verify the mirror remains stable during a short, low-speed test drive.
• ⚙️ If one-touch window operation was lost, close the window fully and continue holding the switch upward for approximately two seconds.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹25,000 per mirror (parts + labor)

DIY Cost: ₹4,500-₹18,000 per mirror (parts only)

You Save: ₹3,500-₹7,000 by doing it yourself!

Local labor and imported-part prices vary. This repair takes a shop approximately 0.5-1 hour per mirror.

---
