🔧 Tacoma - Side View Mirror Replacement

Replacing a side view mirror on your Tacoma means removing the interior door trim panel, unplugging the mirror wiring if equipped, unbolting the mirror, and installing the new one. This is a beginner-friendly repair if you work slowly and protect the door trim from scratches.

Difficulty Level: Beginner | Estimated Time: 45-90 minutes per side

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off before unplugging any mirror wiring.
• ⚠️ Disconnect the negative battery cable if your mirror has power adjustment or heated glass to reduce the chance of shorting a connector.
• ⚠️ Use plastic trim tools only on interior panels. Metal screwdrivers can gouge the door trim.
• ⚠️ Support the mirror with one hand while removing the final nut so it does not fall and scratch the paint.
• ⚠️ If the replacement mirror is painted, protect the painted edge with masking tape before installation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• 6-inch socket extension
• 10mm wrench
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Small flat-tip screwdriver
• Needle-nose pliers
• Torque wrench inch-pound range
• Masking tape 1-inch
• Microfiber towel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

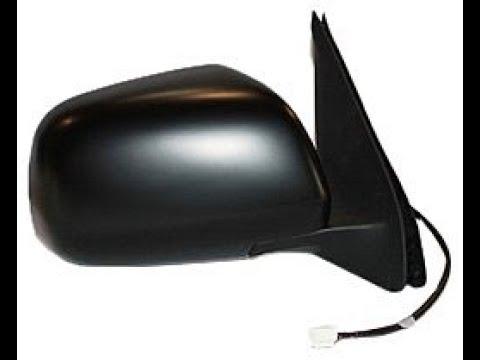

• Side view mirror assembly - Qty: 1 per side
• Door trim panel clips - Qty: As needed
• Mirror mounting nuts - Qty: 3 per side, if damaged or missing
• Mirror foam gasket - Qty: 1 per side, if not included with mirror

---

📋 Before You Begin

• Park your Tacoma on level ground and set the parking brake.
• Lower the window on the door you are working on. This gives you a handhold and more room.
• Move the mirror glass inward if it still works, so the mirror body is easier to hold.
• Place a microfiber towel over the outer door skin below the mirror to protect the paint.
• Use masking tape around the mirror base if you are worried about scratching the paint.
• Disconnect the negative battery cable with a 10mm wrench if the mirror has an electrical connector.
• A plastic trim removal tool is a non-metal pry tool used to pop trim clips loose without damaging the panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Inner Mirror Trim Cover

• Put on safety glasses and nitrile gloves.
• Open the door fully and look at the small triangular trim cover at the front upper corner of the door panel.
• Use a plastic trim removal tool to gently pry the triangular cover away from the door.
• If a clip stays in the door, use needle-nose pliers to pull it out and reinstall it into the trim cover.
• Pull straight out, not upward.

Step 2: Remove Door Handle and Armrest Trim Covers

• Use a small flat-tip screwdriver wrapped with masking tape to lift the small screw cover inside the interior door handle area.
• Use the same small flat-tip screwdriver to lift the screw cover or trim piece in the armrest pull area.
• Work slowly so the plastic tabs do not snap.
• Taped tools prevent trim scratches.

Step 3: Remove the Door Panel Screws

• Use a Phillips #2 screwdriver to remove the screw behind the interior door handle cover.
• Use a Phillips #2 screwdriver to remove the screw in the armrest pull area.
• Place the screws in a cup or small tray so they do not get lost.

Step 4: Release the Door Panel Clips

• Start at the lower rear corner of the door panel.
• Use a plastic trim removal tool to pry the door panel away from the metal door shell.
• Move around the bottom and sides of the panel until the plastic clips release.
• Once the clips are loose, lift the panel upward to unhook it from the window ledge.
• A trim clip is a small plastic fastener that snaps the panel to the door.

Step 5: Disconnect Door Panel Wiring and Handle Cables

• Hold the door panel close to the door instead of letting it hang.
• Use your fingers or a small flat-tip screwdriver to press the lock tab on the window switch connector, then unplug it.
• If equipped with door lock wiring, unplug that connector the same way.
• If the inside handle cables need to be removed, note their positions before removal.
• Use needle-nose pliers to carefully release the cable ends only if finger pressure is not enough.
• Set the door panel on a clean towel.

Step 6: Disconnect the Mirror Electrical Connector

• Locate the mirror wiring connector behind the upper front area of the door.
• Use your fingers to press the connector lock tab and unplug it.
• If the connector is tight, use a small flat-tip screwdriver to gently depress the tab while pulling the connector body.
• Do not pull on the wires.
• If your Tacoma has a manual non-power mirror, there may be no connector to unplug.

Step 7: Remove the Old Mirror

• Support the outside mirror with one hand.
• Use a 10mm socket, 6-inch socket extension, and ratchet handle to remove the three mirror mounting nuts from inside the door.
• Keep holding the mirror while removing the last nut.
• Pull the mirror straight away from the outside of the door.
• If the foam gasket sticks, gently separate it by hand. Do not pry against the paint with metal tools.

Step 8: Prepare the Mounting Surface

• Use a microfiber towel to wipe dirt from the mirror mounting area.
• Check that the old foam gasket did not tear and remain stuck to the door.
• Make sure the replacement mirror has a foam gasket installed.
• If the gasket is separate, install it onto the mirror base before mounting the mirror.

Step 9: Install the New Mirror

• Feed the mirror wiring through the door opening if equipped.
• Place the mirror studs through the mounting holes.
• Start all three mirror mounting nuts by hand to avoid cross-threading.
• Use a 10mm socket, 6-inch socket extension, and ratchet handle to snug the nuts evenly.
• Use a torque wrench inch-pound range with a 10mm socket to tighten the mirror nuts to Torque to 8 Nm (71 in-lbs).
• Do not overtighten. The mirror base and door mounting area can crack or distort.

Step 10: Reconnect the Mirror Wiring

• Plug the mirror connector into the door harness until it clicks.
• Use your fingers to lightly tug the connector body and confirm it is locked.
• Route the wiring the same way it was originally so it will not be pinched by the door panel.

Step 11: Reinstall the Door Panel

• Reconnect the window switch connector and any door lock connector by hand until each clicks.
• If handle cables were removed, reinstall them in their original positions by hand or with needle-nose pliers.
• Hang the top of the door panel over the window ledge.
• Line up the trim clips with the door holes.
• Press around the sides and bottom of the panel by hand until all clips snap in.
• If a clip is broken, replace it with a new door trim panel clip before snapping the panel in place.

Step 12: Reinstall Screws and Trim Covers

• Use a Phillips #2 screwdriver to reinstall the interior door handle screw.
• Use a Phillips #2 screwdriver to reinstall the armrest pull screw.
• Snap the screw covers back into place by hand.
• Snap the triangular inner mirror trim cover back into place by hand.

Step 13: Reconnect Battery and Test

• If you disconnected the battery, use a 10mm wrench to reconnect the negative battery cable.
• Tighten the negative battery terminal snugly. Do not overtighten.
• Turn the ignition on and test power mirror movement if equipped.
• Test the window switch and door lock switch before closing the door fully.

---

✅ After Repair

• ✅ Adjust the new mirror to your normal driving position.
• ✅ Check that the mirror sits flat against the door with no gap in the gasket.
• ✅ Open and close the door gently and listen for rattles.
• ✅ Spray a small amount of water around the mirror base and check inside the door area for leaks.
• ✅ If the window auto function acts odd after a battery disconnect, fully lower the window, then fully raise it and hold the switch up for about 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 per side (parts + labor)

DIY Cost: $60-$250 per side (parts only)

You Save: $120-$200 per side by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
