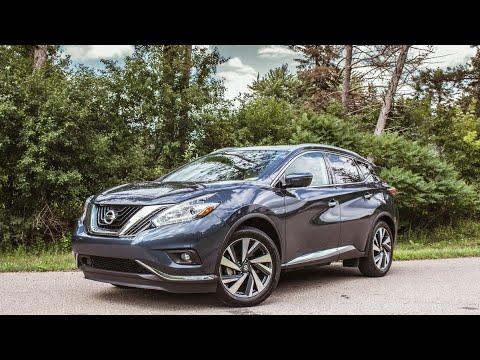

🔧 Murano - Side View Mirror Replacement

The side view mirrors on your Murano are mounted through the front door and connect to the door wiring harness for power adjustment, heat, turn signal, memory, and camera features if equipped. Replacement requires removing the front door trim panel, unplugging the mirror connector, removing the mirror mounting nuts, and transferring any required trim pieces.

Replace one mirror at a time so the opposite side can be used as a reference for routing and connector placement.

Difficulty Level: Intermediate | Estimated Time: 1.0-1.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging mirror or door wiring.
• ⚠️ Support the mirror with one hand before removing the last mounting nut so it does not fall and scratch the door.
• ⚠️ Do not pull hard on the mirror harness. The connector lock must be released first.
• ⚠️ If your mirror includes a side camera, handle the camera lens carefully and keep it clean.
• ⚠️ If your Murano has Around View Monitor, a camera-equipped mirror may require calibration if the camera image is distorted or alignment is incorrect after replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• Socket extension 6-inch
• Phillips #2 screwdriver
• Trim panel removal tool set
• Plastic wedge trim tool
• Small flat-blade screwdriver
• Torque wrench inch-pound range
• Painter's tape 2-inch
• Clean shop towels
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left side view mirror assembly - Qty: 1
• Right side view mirror assembly - Qty: 1
• Front door trim panel retaining clips - Qty: 6-10 per door
• Mirror mounting foam seal - Qty: 1 per mirror, if not included

---

📋 Before You Begin

• Park your Murano on level ground and turn the ignition OFF.
• Lower the front window on the door you are working on. This gives your hand more room to support the mirror.
• Protect the painted door edge and mirror area with 2-inch painter's tape.
• Unlock the doors before disconnecting the battery.
• Use a 10mm socket and ratchet handle to disconnect the negative battery cable.
• A trim panel removal tool is a plastic pry tool that helps release clips without damaging the door panel.
• A mirror mounting foam seal is the gasket between the mirror base and door. It helps prevent wind noise and water leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the Door and Mirror Area

• Use 2-inch painter's tape around the mirror base, upper door trim, window switch panel, and door pull trim.
• Place clean shop towels over the painted door skin below the mirror.
• Tape prevents accidental scratches.

Step 2: Remove the Front Window Switch Panel

• Use a plastic wedge trim tool to gently lift the front window switch panel from the armrest.
• Lift it only high enough to access the connectors underneath.
• Use a small flat-blade screwdriver to press each connector locking tab.
• Unplug the switch panel connectors and set the panel on clean shop towels.

Step 3: Remove Hidden Door Panel Screws

• Look inside the switch panel opening and door pull area for the door panel screws.
• Use a Phillips #2 screwdriver or 10mm socket with a ratchet handle to remove the screws.
• Set the screws aside in order so they return to the same locations.

Step 4: Release the Front Door Panel Clips

• Start at the lower rear corner of the front door panel.
• Use a trim panel removal tool between the trim panel and the metal door shell.
• Pop the clips loose one at a time along the lower and side edges.
• Lift the door panel straight upward off the window ledge.
• Do not pull the panel away quickly because wiring and the inside handle cable may still be connected.

Step 5: Disconnect Door Panel Wiring and Handle Cable

• Hold the door panel close to the door with one hand.
• Use a small flat-blade screwdriver to open the inside handle cable retainer.
• Lift the cable end out of the handle lever by hand.
• Use a small flat-blade screwdriver to release any remaining electrical connector lock tabs.
• Place the door panel safely on clean shop towels.

Step 6: Remove the Inner Mirror Corner Trim

• Use a plastic wedge trim tool to gently pry off the small triangular trim cover at the inside mirror corner.
• Pull straight outward to release the clips.
• Set the trim cover aside on clean shop towels.

Step 7: Locate and Unplug the Mirror Connector

• Follow the mirror wiring harness from the mirror area down to its connector inside the door.
• Use a small flat-blade screwdriver to press the connector locking tab.
• Unplug the mirror connector.
• If the harness is clipped to the door, release the clips carefully with the small flat-blade screwdriver.

Step 8: Remove the Mirror Mounting Nuts

• Support the outside mirror with one hand through the open window area.
• Use a 10mm socket, socket extension 6-inch, and ratchet handle to remove the mirror mounting nuts.
• Remove the lower nuts first and the upper nut last.
• Keep firm control of the mirror as the last nut comes off.

Step 9: Remove the Old Mirror

• Guide the mirror wiring harness through the door opening by hand.
• Pull the mirror straight away from the door.
• If the foam seal sticks, use a plastic wedge trim tool to gently separate it from the door.
• Clean the mounting area with clean shop towels.

Step 10: Prepare the New Mirror

• Compare the new side view mirror assembly to the old one before installation.
• Make sure the electrical connector, mounting studs, foam seal, and painted cap match.
• If your replacement mirror does not include the painted mirror cap, transfer the cap from the old mirror using a plastic wedge trim tool.
• If the foam seal is not installed, place the new mirror mounting foam seal on the mirror base.

Step 11: Install the New Mirror

• Feed the mirror wiring harness through the door opening by hand.
• Set the mirror against the door and align the mounting studs.
• Start all mirror mounting nuts by hand first.
• Use a 10mm socket, socket extension 6-inch, and torque wrench inch-pound range to tighten the mirror mounting nuts to Torque to 8 Nm (71 in-lbs).
• Do not overtighten. The mirror base and door mounting area can crack or deform.

Step 12: Connect and Route the Mirror Harness

• Plug the mirror connector into the door harness until it clicks.
• Route the harness exactly like the original path.
• Use your hands and the small flat-blade screwdriver to secure any harness clips back into the door.
• Make sure the harness cannot contact the window glass or regulator.

Step 13: Test the Mirror Before Reassembly

• Temporarily reconnect the front window switch panel by hand.
• Use a 10mm socket and ratchet handle to reconnect the negative battery cable.
• Turn the ignition ON without starting the engine.
• Use the mirror control switch to test up, down, left, and right adjustment.
• Turn on the rear defroster switch to verify mirror heat if equipped.
• Turn on the hazard lights to verify the mirror turn signal if equipped.
• If equipped, check the Around View Monitor image on the center display.

Step 14: Disconnect Battery Again for Final Reassembly

• Turn the ignition OFF.
• Use a 10mm socket and ratchet handle to disconnect the negative battery cable again.

Step 15: Reinstall the Inner Mirror Corner Trim

• Align the triangular trim cover with its clips.
• Press it straight into place by hand until the clips snap in.
• Do not hit the trim with tools.

Step 16: Reinstall the Door Panel

• Hold the front door panel close to the door.
• Reconnect the inside handle cable by hand.
• Reconnect all electrical connectors until they click.
• Hook the top of the panel over the window ledge.
• Align the clips with the holes in the metal door shell.
• Press around the edges by hand until all clips snap into place.

Step 17: Reinstall Screws and Switch Panel

• Use a Phillips #2 screwdriver or 10mm socket with a ratchet handle to reinstall the door panel screws.
• Tighten screws snug only because the mounts are plastic.
• Reconnect the window switch panel if still unplugged.
• Press the switch panel evenly into the armrest until it snaps in.

Step 18: Final Battery Connection and Feature Check

• Use a 10mm socket and ratchet handle to reconnect the negative battery cable.
• Tighten the battery terminal until it cannot twist by hand.
• Turn the ignition ON.
• Test mirror adjustment, mirror memory if equipped, heat, turn signal, and camera view if equipped.
• Repeat the same process on the opposite side if replacing both mirrors.

---

✅ After Repair

• ✅ Adjust both mirrors to your normal driving position.
• ✅ Save the position to the driver memory seat setting if equipped.
• ✅ Test the mirror heater by turning on the rear defroster for a few minutes.
• ✅ Check mirror turn signal operation with the hazard lights.
• ✅ If equipped with Around View Monitor, confirm the side camera image looks centered and clear.
• ✅ If the camera image is skewed or alignment lines are incorrect, professional camera calibration may be required.
• ✅ Road test at low speed and listen for wind noise around the mirror base.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$2,000 USD equivalent for both side mirrors (parts + labor)

DIY Cost: $400-$1,400 USD equivalent for both side mirrors (parts only)

You Save: $300-$600 USD equivalent by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours for both mirrors.

---
