🔧 Focus - Side View Mirror Replacement

Replacing the side view mirror on your Focus involves removing the inner door trim panel, unplugging the mirror connector, unbolting the mirror, and installing the new assembly. The mirror is mounted from inside the front door, so take your time with the trim clips to avoid breaking them.

Difficulty Level: Beginner | Estimated Time: 45-90 minutes per side

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and keep the key away from the vehicle before working on door wiring.
• ⚠️ Disconnect the negative battery cable if your replacement mirror has power adjustment wiring. This helps prevent short circuits.
• ⚠️ Use plastic trim tools, not screwdrivers, on painted or interior trim surfaces to avoid scratches.
• ⚠️ Support the mirror with one hand while removing the final nut so it does not fall and damage the door paint.
• ⚠️ The door panel uses plastic retaining clips. Pull straight outward to reduce the chance of breaking them.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 1/4-inch ratchet
• 1/4-inch extension, 6-inch
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Needle-nose pliers
• Torque wrench, inch-pound range
• Painter’s tape
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Side view mirror assembly - Qty: 1 per side
• Door trim panel retaining clips - Qty: As needed
• Mirror mounting foam gasket - Qty: 1 per side, if not included with mirror

---

📋 Before You Begin

• Park your Focus on level ground and set the parking brake.
• Lower the window on the door you are working on. This gives you a place to hold the door and helps if the panel needs repositioning.
• Protect the painted area below the mirror with painter’s tape.
• If the mirror is powered, use a 10mm socket to disconnect the negative battery cable. Wait at least 2 minutes before unplugging door wiring.
• A trim tool is a plastic pry tool designed to release panels without scratching them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Interior Mirror Trim Cover

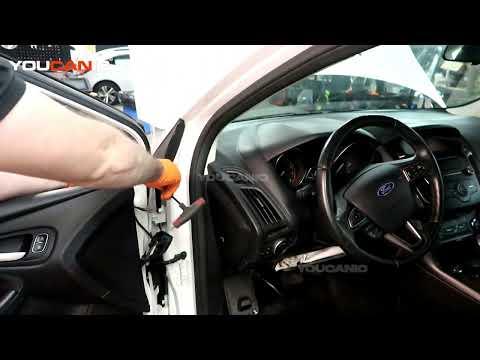

• Use a plastic trim removal tool to gently pry off the triangular trim cover at the inside front corner of the door.
• Pull the trim straight away from the door. It is held by clips.
• If a small tweeter speaker is built into the trim, use a small flat-blade screwdriver to release the connector lock, then unplug it.
• Pull evenly, not upward.

Step 2: Remove Door Panel Screw Covers

• Use a plastic trim removal tool to lift the small cover inside the door pull handle area.
• Use a plastic trim removal tool to remove any small trim cap hiding screws near the interior handle or armrest.
• Set the covers aside in a safe place.

Step 3: Remove the Door Panel Screws

• Use a 7mm socket, 1/4-inch ratchet, and 1/4-inch extension, 6-inch to remove the visible door panel screws.
• Common screw locations are the armrest pull pocket, behind small trim covers, and along the lower edge of the panel.
• Keep the screws grouped by location so reassembly is easier.

Step 4: Release the Door Panel Clips

• Slide a plastic trim removal tool between the lower edge of the door panel and the metal door shell.
• Pry outward near each clip until it pops loose.
• Work around the sides and bottom of the panel.
• Once the clips are loose, lift the panel upward to unhook it from the window ledge.
• Slow is smooth here.

Step 5: Disconnect Door Panel Wiring and Handle Cable

• Support the door panel with one hand.
• Use a small flat-blade screwdriver to release the locking tabs on the window switch connector and any other electrical connectors.
• If equipped with a door handle cable, use needle-nose pliers to rotate the cable end out of the handle lever, then lift the cable housing from its bracket.
• Place the door panel somewhere safe with the painted side facing up.

Step 6: Peel Back the Water Shield Enough to Access the Mirror

• Use your hands and a plastic trim removal tool to carefully peel back the foam or plastic water shield near the mirror mounting area.
• Do not tear it. This shield helps keep rainwater away from the door panel.
• If the adhesive stretches, press it back into place later during reassembly.

Step 7: Unplug the Mirror Connector

• Find the mirror wiring connector inside the upper front area of the door.
• Use a small flat-blade screwdriver to gently press the connector lock.
• Pull the connector straight apart by the plastic body, not by the wires.

Step 8: Remove the Mirror Mounting Nuts

• Hold the outside mirror with one hand so it cannot fall.
• Use a 10mm socket, 1/4-inch ratchet, and 1/4-inch extension, 6-inch to remove the mirror mounting nuts from inside the door.
• Remove the final nut slowly while still supporting the mirror.
• Carefully pull the mirror away from the outside of the door and guide the wiring through the opening.

Step 9: Install the New Mirror Assembly

• Check that the mirror mounting foam gasket is seated flat on the new mirror. The gasket seals out wind noise and water.
• Feed the mirror wiring through the door opening.
• Position the mirror on the door and start the mounting nuts by hand to avoid cross-threading.
• Use a 10mm socket and torque wrench, inch-pound range to tighten the mirror mounting nuts evenly.
• Torque to 8 Nm (71 in-lbs).
• Do not overtighten. The mirror base and door mounting area can crack or distort.

Step 10: Reconnect the Mirror Wiring

• Push the mirror connector together until it clicks.
• Use a small flat-blade screwdriver only if needed to guide the connector lock gently.
• Route the wiring the same way it was originally clipped so it will not rub the window glass.

Step 11: Reinstall the Water Shield

• Press the water shield back into place by hand.
• Use a plastic trim removal tool to smooth the adhesive edge if needed.
• Make sure the shield seals around the front upper door area.

Step 12: Reinstall the Door Panel

• Reconnect the door handle cable by hand. Use needle-nose pliers only if the cable end is difficult to seat.
• Reconnect the electrical connectors until each one clicks.
• Hook the top of the door panel over the window ledge.
• Line up the panel clips with the holes in the door.
• Press around the edges by hand until each clip snaps in.

Step 13: Reinstall Door Panel Screws and Trim Covers

• Use a 7mm socket, 1/4-inch ratchet, and 1/4-inch extension, 6-inch to reinstall the door panel screws.
• Tighten the screws snug only.
• Torque to 2 Nm (18 in-lbs) if using a torque wrench.
• Snap the screw covers back into place by hand.

Step 14: Reinstall the Interior Mirror Trim Cover

• If equipped with a tweeter connector, plug it back in until it clicks.
• Line up the triangular trim cover clips.
• Press the trim cover into place by hand until fully seated.

Step 15: Reconnect the Battery

• If you disconnected the battery, use a 10mm socket to reinstall the negative battery cable.
• Tighten the clamp snugly.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Turn the ignition on and test mirror adjustment in all directions if equipped with power mirrors.
• ✅ Test the window switch, door lock switch, speaker, and inside door handle.
• ✅ Open and close the door to confirm the panel is fully clipped in and does not rattle.
• ✅ Check the mirror base from outside. It should sit flush against the door with no gap in the gasket.
• ✅ If the battery was disconnected, reset the clock and any radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 per side parts + labor

DIY Cost: $70-$220 per side parts only

You Save: $150-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
