🔧 Expedition - Shock Absorber Replacement

This repair replaces the worn shock absorbers on your Expedition to restore ride control, reduce bouncing, and improve handling. On the Platinum trim, the rear shocks may be electronically controlled CCD dampers, so handle the electrical connectors carefully and do not twist the wiring.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never work under your Expedition supported only by a jack.
• ⚠️ Use jack stands rated for the vehicle weight. A jack stand is a fixed support that safely holds the vehicle after lifting.
• ⚠️ Keep the suspension supported before removing shock bolts so parts do not drop suddenly.
• ⚠️ If equipped with electronic CCD shocks, disconnect the shock electrical connector before removal and do not pull on the wires.
• ⚠️ Do not loosen or remove coil spring mounting parts. Shock absorber replacement does not require compressing the spring.
• ⚠️ Battery disconnect is not normally required for shock absorber replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• Torque wrench (30-250 ft-lbs)
• 21mm socket
• 18mm socket
• 15mm socket
• 21mm wrench
• 18mm wrench
• 15mm wrench
• Trim clip removal tool
• Flathead screwdriver
• Penetrating oil
• Paint marker
• Rubber mallet
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front shock absorbers - Qty: 2
• Rear shock absorbers - Qty: 2
• Shock mounting hardware kit - Qty: 1
• Shock upper nuts - Qty: 4
• Shock lower bolts and nuts - Qty: 4

Replace in pairs: Replace both front shocks together, both rear shocks together, or all four for the best ride balance.

---

📋 Before You Begin

• 🅿️ Park your Expedition on level ground and shift to Park.
• 🧱 Place wheel chocks at the wheels staying on the ground.
• 🔩 Slightly loosen the wheel lug nuts with a 21mm socket before lifting.
• 🖊️ Use a paint marker to mark shock orientation before removal. This helps the new shock line up the same way.
• 🧪 Spray shock mounting bolts with penetrating oil and let it soak for 5-10 minutes.
• 📌 Torque specs can vary by OE shock type and mounting position. Use the specs supplied with your replacement parts if they differ.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Wheel Lug Nuts

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen each lug nut about half a turn.
• Do not remove the lug nuts yet.
• Loosen before lifting.

Step 2: Lift and Support the Vehicle

• Use a floor jack under the approved frame lifting point near the corner you are working on.
• Place a jack stand under the frame rail and slowly lower your Expedition onto it.
• Keep the floor jack lightly supporting the lower control arm or rear axle area. This prevents the suspension from dropping suddenly.

Step 3: Remove the Wheel

• Use a 21mm socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove the wheel and set it flat under the vehicle as a backup safety cushion.

Step 4: Disconnect the Electronic Shock Connector if Equipped

• Look at the top or side of the shock for an electrical connector.
• Use a flathead screwdriver or trim clip removal tool to release the connector lock gently.
• Unplug the connector by pulling on the plastic plug, not the wires.
• A connector is the plastic plug that carries electrical signals to the shock.

Step 5: Support the Suspension at the Shock

• Use the floor jack to gently lift the lower control arm or rear axle until the shock is not stretched tight.
• The shock should look relaxed, not pulling down on the suspension.
• Small jack movements help.

Step 6: Remove the Lower Shock Bolt

• Use an 18mm socket and 18mm wrench to remove the lower shock bolt and nut.
• If the bolt sticks, tap it gently with a rubber mallet.
• Do not hammer on the threaded end unless the nut is loosely installed to protect the threads.

Step 7: Remove the Upper Shock Mount Fasteners

• Use a 15mm socket or 18mm socket, depending on the mount fastener size, to remove the upper shock fasteners.
• Hold the shock with one hand while removing the last fastener so it does not fall.
• Remove the shock absorber from the vehicle.

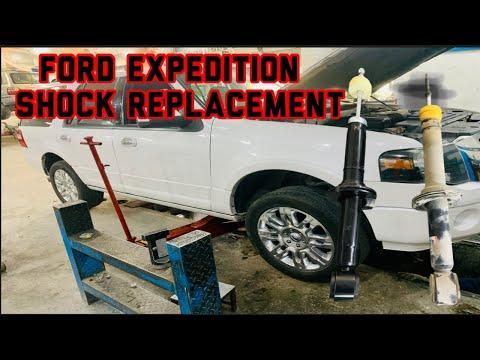

Step 8: Compare the Old and New Shock

• Set the old and new shock side by side.
• Confirm the length, mounting eyes, studs, bushings, and electrical connector match.
• If the new shock has a shipping strap, do not cut it until you are ready to line up the mounts.

Step 9: Install the New Upper Shock Mount

• Position the new shock in the upper mount by hand.
• Install the upper fasteners finger-tight first. Finger-tight means threaded in by hand without fully tightening.
• Use a 15mm socket or 18mm socket to snug the upper fasteners.
• Final tighten the upper shock fasteners with a torque wrench: Torque to 35 Nm (26 ft-lbs), unless your replacement hardware specifies otherwise.

Step 10: Install the Lower Shock Bolt

• Use the floor jack to raise or lower the suspension slightly until the lower shock hole lines up.
• Slide the lower bolt through by hand. Do not force it with an impact tool.
• Install the nut and snug it with an 18mm socket and 18mm wrench.
• Final tighten the lower shock bolt with a torque wrench: Torque to 115 Nm (85 ft-lbs), unless your replacement hardware specifies otherwise.

Step 11: Reconnect the Electronic Shock Connector if Equipped

• Push the connector together until it clicks.
• Use a trim clip removal tool to secure any wiring clips back into their original locations.
• Make sure the wire cannot rub the tire, spring, or moving suspension parts.

Step 12: Repeat on the Other Side

• Repeat the same process on the matching shock on the opposite side.
• Use the 18mm socket, 18mm wrench, 15mm socket, and torque wrench the same way.
• Always replace shocks in left/right pairs.

Step 13: Reinstall the Wheels

• Place the wheel back on the hub.
• Install lug nuts by hand first to avoid cross-threading.
• Use a 21mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift slightly, remove the jack stands, then lower your Expedition to the ground.
• Use a torque wrench and 21mm socket to tighten the lug nuts in a star pattern.
• Torque to 204 Nm (150 ft-lbs).

---

✅ After Repair

• ✅ Bounce each corner of your Expedition by hand. It should settle quickly without repeated bouncing.
• ✅ Start the vehicle and check the instrument cluster for suspension warnings.
• ✅ If a suspension warning appears after replacing electronic shocks, scan for chassis/suspension codes and verify each connector is fully seated.
• ✅ Test drive slowly first. Listen for clunks, rubbing, or rattles.
• ✅ Recheck lug nut torque after 25-50 miles: Torque to 204 Nm (150 ft-lbs).
• ✅ A wheel alignment is usually not required for shock-only replacement, but get one if tire wear or pulling was present before the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800+ (parts + labor)

DIY Cost: $350-$1,200 (parts only)

You Save: $550-$600+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
