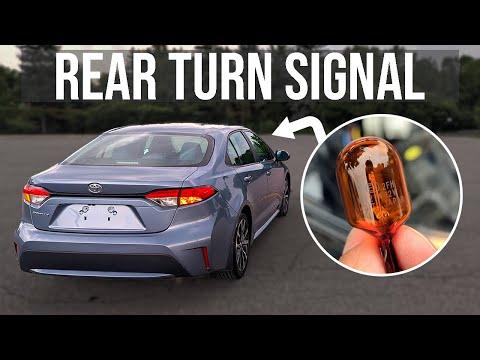

🔧 Corolla - Rear Turn Signal Bulb Replacement

Replacing the rear turn signal bulbs on your Corolla is a beginner-friendly repair. The bulbs are accessed from inside the trunk by moving the side trunk trim and removing the rear combination lamp bulb socket.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF before working on the rear lamps.
• ⚠️ Make sure the hazard lights and turn signal stalk are OFF.
• ⚠️ Battery disconnect is not required for this repair.
• ⚠️ Do not pull on the lamp wiring; pull only on the bulb socket body.
• ⚠️ Rear bulbs can be hot if the lights were recently used, so let them cool first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Clean microfiber cloth
• Plastic trim removal tool
• Small flathead screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear turn signal bulbs - Replace in pairs - Qty: 2

---

📋 Before You Begin

• Park your Corolla on level ground.
• Set the parking brake.
• Turn the ignition OFF.
• Make sure the turn signal stalk and hazard light switch are OFF.
• Open the trunk fully.
• Remove loose items from the trunk so you have room to work.
• Put on nitrile gloves to keep the new bulbs clean.
• A trim removal tool is a plastic pry tool that helps remove clips without scratching panels.
• A socket is the plastic holder that twists into the lamp housing and holds the bulb.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Trunk and Locate the Access Area

• Use your hand to open the trunk.
• Use a flashlight to look at the trunk side trim behind the driver-side tail lamp.
• The rear turn signal bulb is behind the rear combination lamp assembly, accessible from inside the trunk.
• Take a photo before removing clips.

Step 2: Move the Driver-Side Trunk Trim

• Use a plastic trim removal tool to gently lift the trunk trim fastener near the tail lamp area.
• If the fastener has a center pin, use a small flathead screwdriver to lift the center pin first, then remove the fastener.
• Pull the side trunk trim back just enough to reach the bulb sockets.
• Do not crease or sharply bend the trunk trim panel.

Step 3: Locate the Driver-Side Rear Turn Signal Socket

• Use a flashlight to identify the rear turn signal bulb socket on the back of the tail lamp housing.
• The socket is a twist-lock holder with wires attached.
• Compare the position to the outside amber/red turn signal lens area so you choose the correct socket.

Step 4: Remove the Driver-Side Rear Turn Signal Socket

• Use your gloved hand to grip the turn signal socket body.
• Turn the socket counterclockwise about a quarter turn.
• Pull the socket straight out of the lamp housing.
• Use a clean microfiber cloth for extra grip if the socket is tight.
• No torque spec applies; this is a hand-operated twist-lock socket.

Step 5: Remove the Driver-Side Bulb

• Use your gloved hand to remove the old bulb from the socket.
• Most Corolla rear turn signal bulbs pull straight out of the socket.
• If your bulb has small locking pins, gently push in and turn counterclockwise to release it.
• Use a clean microfiber cloth if the bulb is slippery.
• Do not squeeze the glass hard.

Step 6: Install the New Driver-Side Bulb

• Use nitrile gloves and handle the new bulb by the base.
• Install the new rear turn signal bulb into the socket.
• If it is a push-in style, push it straight in until fully seated.
• If it is a pin-lock style, push in and turn clockwise until it locks.
• Do not force the bulb.

Step 7: Reinstall the Driver-Side Socket

• Use your gloved hand to insert the socket into the tail lamp housing.
• Align the socket tabs with the slots in the lamp housing.
• Turn the socket clockwise about a quarter turn until it locks.
• Use a flashlight to make sure the socket sits flat and sealed.

Step 8: Refit the Driver-Side Trunk Trim

• Use your hand to move the trunk trim back into position.
• Use your hand to reinstall the trim fastener.
• If the fastener has a center pin, push the outer body in first, then push the center pin flush.
• Use a plastic trim removal tool only if you need help lining up the trim edge.

Step 9: Move the Passenger-Side Trunk Trim

• Use a flashlight to look behind the passenger-side tail lamp area.
• Use a plastic trim removal tool to gently remove the trunk trim fastener.
• If needed, use a small flathead screwdriver to lift the center pin of the fastener.
• Pull the side trunk trim back just enough to access the bulb sockets.

Step 10: Remove the Passenger-Side Rear Turn Signal Socket

• Use your gloved hand to grip the passenger-side rear turn signal socket body.
• Turn the socket counterclockwise about a quarter turn.
• Pull the socket straight out of the tail lamp housing.
• Use a clean microfiber cloth if extra grip is needed.
• No torque spec applies; this is a hand-operated twist-lock socket.

Step 11: Replace the Passenger-Side Bulb

• Use your gloved hand to remove the old bulb from the socket.
• If it is a push-in style, pull it straight out.
• If it is a pin-lock style, push in and turn counterclockwise to remove it.
• Use nitrile gloves to install the new bulb by its base.
• Push the new bulb in fully, or push and turn clockwise if it uses locking pins.

Step 12: Reinstall the Passenger-Side Socket and Trim

• Use your gloved hand to insert the socket into the tail lamp housing.
• Turn the socket clockwise about a quarter turn until it locks.
• Use a flashlight to confirm the socket is seated flat.
• Use your hand to reposition the trunk trim.
• Use your hand to reinstall the trim fastener.

Step 13: Test the Rear Turn Signals

• Use your hand to turn the ignition ON without starting the engine.
• Use the turn signal stalk to test the left rear turn signal.
• Use the turn signal stalk to test the right rear turn signal.
• Use your hand to press the hazard light switch and confirm both rear bulbs flash.
• If one side flashes fast, use a flashlight and recheck that bulb and socket.

---

✅ After Repair

• ✅ Confirm both rear turn signals flash at the normal speed.
• ✅ Confirm both hazard lights flash at the rear.
• ✅ Make sure the trunk trim is back in place and the clips are secure.
• ✅ Close the trunk and check that no tools are left inside.
• ✅ Dispose of old bulbs safely to avoid broken glass.

---

💰 DIY vs Shop Cost

Shop Cost: $70-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $60-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
