🔧 Mustang - Rear Shock Absorber Replacement

This guide covers replacing the rear shock absorbers on your Mustang. The rear shocks help control bouncing and keep the rear tires planted, especially over bumps and during braking.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

Assumption: “Shock absorbers” refers to the rear shocks; the front uses struts, which are a different procedure.

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only.
• ⚠️ Never rely on a jack alone. Use jack stands to safely support your Mustang.
• ⚠️ Chock the front wheels so the car cannot roll.
• ⚠️ Keep your hands clear when lowering or raising the rear suspension.
• ⚠️ Do not disconnect brake hoses, parking brake cables, or ABS wiring.
• ⚠️ Battery disconnect is not required for rear shock replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 1/2-inch drive ratchet
• 1/2-inch drive breaker bar
• Torque wrench (10-150 ft-lbs)
• 21mm socket
• 18mm socket
• 15mm socket
• 13mm socket
• 6-inch socket extension
• Flat trim tool
• Needle-nose pliers
• Penetrating oil
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear shock absorbers - Qty: 2
• Rear shock upper mount hardware kit - Qty: 2
• Rear shock lower bolt and nut kit - Qty: 2

Replace in pairs: Always replace both rear shocks together so the suspension reacts evenly side to side.

---

📋 Before You Begin

• Park your Mustang on level ground.
• Put the transmission in Park or 1st gear.
• Set the parking brake before lifting.
• Place wheel chocks in front of both front tires.
• Open the trunk and remove anything loose from the cargo area.
• A torque wrench tightens bolts to an exact force, which prevents loose or over-tightened suspension parts.
• Penetrating oil helps loosen rusty fasteners; spray it on stuck bolts and let it soak for a few minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Rear Wheel Lug Nuts

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen the rear wheel lug nuts about 1/2 turn.
• Do this while the tires are still touching the ground.
• Loosen only, do not remove yet.

Step 2: Lift and Support the Rear of the Car

• Use a floor jack under the rear differential area or approved rear jacking point to raise the rear of your Mustang.
• Place jack stands under the proper rear support points on both sides.
• Slowly lower the car onto the jack stands.
• Gently shake the car by hand to confirm it is stable before working underneath.

Step 3: Remove the Rear Wheels

• Use the 21mm socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove both rear wheels and set them flat on the ground.

Step 4: Support the Rear Lower Control Arm

• Place the floor jack lightly under the rear lower control arm near the shock.
• Raise the jack just enough to support the suspension, not enough to lift the car off the jack stand.
• The lower control arm is the suspension arm that holds the bottom of the shock area and wheel hub assembly.

Step 5: Remove the Lower Shock Bolt

• Spray the lower shock bolt and nut with penetrating oil.
• Use an 18mm socket, 1/2-inch drive ratchet, and 1/2-inch drive breaker bar if needed to remove the lower shock bolt and nut.
• If the bolt is tight, slightly raise or lower the floor jack under the control arm to remove pressure from the bolt.
• Small jack movements help align the bolt.

Step 6: Access the Upper Shock Mount

• Open the trunk.
• Use a flat trim tool to carefully lift or move the side trunk trim panel near the shock tower.
• Use needle-nose pliers if any small trim retainers need to be released.

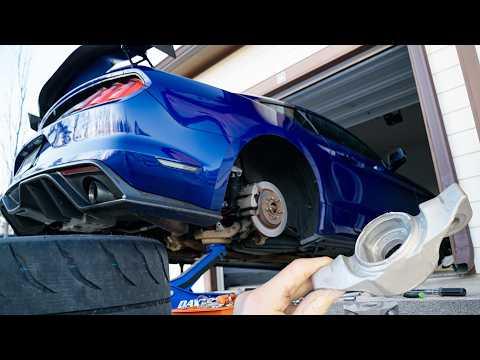

• The upper shock mount is where the top of the shock attaches to the body of your Mustang.

Step 7: Remove the Upper Shock Mount Nuts

• Use a 13mm socket, 6-inch socket extension, and 1/2-inch drive ratchet to remove the upper shock mount nuts.
• Hold the shock from below with one hand while removing the last nut so it does not drop.
• Remove the shock absorber from the car.

Step 8: Compare the Old and New Shock

• Set the old and new rear shock absorbers next to each other.
• Confirm the upper mount shape, lower mounting eye, and overall length match.
• If the new shock has a shipping strap, do not cut it until you are ready to install it.

Step 9: Install the New Shock Upper Mount

• Position the new shock into the upper mounting area by hand.
• Install the upper mount nuts by hand first to avoid cross-threading.
• Use a 13mm socket, 6-inch socket extension, and torque wrench to tighten the upper shock mount nuts to Torque to 35 Nm (26 ft-lbs).

Step 10: Install the Lower Shock Bolt

• Use the floor jack to raise or lower the lower control arm until the lower shock eye lines up with the mounting hole.
• Install the lower shock bolt and nut by hand first.
• Use an 18mm socket and torque wrench to tighten the lower shock bolt to Torque to 115 Nm (85 ft-lbs).
• Start bolts by hand every time.

Step 11: Repeat on the Other Side

• Use the same tools and steps to replace the rear shock absorber on the opposite side.
• Keep the floor jack under the lower control arm on the side you are working on.

Step 12: Reinstall the Trunk Trim

• Use your hands and the flat trim tool to reposition the trunk side trim panels.
• Use needle-nose pliers if needed to reinstall trim retainers.

Step 13: Reinstall the Rear Wheels

• Lift each rear wheel onto the hub.
• Start all lug nuts by hand.
• Use the 21mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Car and Torque the Lug Nuts

• Use the floor jack to raise the rear slightly off the jack stands.
• Remove the jack stands.
• Lower your Mustang until the tires touch the ground.
• Use the 21mm socket and torque wrench to tighten the lug nuts in a star pattern to Torque to 204 Nm (150 ft-lbs).

---

✅ After Repair

• ✅ Bounce the rear of your Mustang by hand. It should settle quickly without repeated bouncing.
• ✅ Test drive slowly first over a smooth road, then over small bumps.
• ✅ Listen for clunks, rattles, or knocking from the rear.
• ✅ Recheck the rear lug nut torque after 25-50 miles using a 21mm socket and torque wrench.
• ✅ A wheel alignment is not normally required for rear shock replacement only, but get one if tire wear or pulling was already present.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $230-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
