🔧 Sienna - Rear Brake Pad Replacement

Replacing the rear brake pads requires lifting the rear of your Sienna, removing both rear wheels, compressing each caliper piston, and installing new pads and hardware. Replace the pads on both sides so braking remains balanced.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

Assumption: This procedure applies to the factory rear disc brakes; drivetrain does not change the basic pad-replacement process.

---

⚠️ Safety & Precautions

• ⚠️ Work on level, solid pavement and support your Sienna with jack stands. Never rely on the floor jack alone.
• ⚠️ Leave the parking brake released because it operates inside the rear brake rotors.
• ⚠️ Place the transmission in Park and firmly chock both front wheels.
• ⚠️ Do not press the brake pedal while either rear caliper is removed.
• ⚠️ Brake fluid damages paint. Wipe spills immediately and rinse with plenty of water.
• ⚠️ Do not use compressed air around brake dust. Clean components with brake cleaner.
• ⚠️ Never let a caliper hang from its flexible brake hose.
• 🔋 Battery disconnection is not required. Your Sienna uses a mechanical parking brake, so no electronic service mode is needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm deep socket
• 14mm socket
• 17mm combination wrench
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 3/8-inch drive torque wrench rated 10-80 ft-lbs
• 1/2-inch drive torque wrench rated 30-150 ft-lbs
• Brake caliper piston compression tool (specialty)
• Small nylon detailing brush
• Brake fluid suction syringe (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Rubber wheel chocks
• Caliper support hook (specialty)
• Nitrile mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear brake pad set - Qty: 1 set for both sides
• Rear brake pad hardware kit - Qty: 1 set
• Rear brake pad anti-squeal shims - Qty: 1 set if not supplied with pads
• High-temperature silicone brake grease - Qty: 1 tube
• Non-chlorinated brake cleaner - Qty: 1 can
• DOT 3 brake fluid - Qty: 1 small sealed bottle if fluid correction is needed

Replace the rear brake pads in pairs on both sides.

---

📋 Before You Begin

• 🅿️ Park your Sienna on level pavement. Place the transmission in Park, switch off the engine, and release the parking brake completely.
• 🧱 Place rubber wheel chocks firmly against the front and rear of both front tires.
• 🌡️ Allow the brakes to cool before touching them.
• 🧴 Open the hood and check the brake-fluid reservoir. If the fluid is already at the MAX line, use a brake fluid suction syringe to remove a small amount before compressing the pistons.
• 📱 No infotainment menu, scan tool, electronic parking-brake mode, battery registration, or coding is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Rear Wheel Nuts

• Use a 21mm deep socket and 1/2-inch breaker bar to loosen each rear wheel nut about one-half turn.
• Do not remove the wheel nuts while your Sienna is still on the ground.

Step 2: Raise and Support the Rear

• Use the 3-ton floor jack at the designated rear-center lifting point, then position 3-ton jack stands beneath the reinforced rear side support points.
• Lower your Sienna slowly onto the stands. Give the body a gentle push to verify that it is stable.
• Keep the floor jack nearby as secondary support.

Step 3: Remove Both Rear Wheels

• Use the 21mm deep socket and 1/2-inch breaker bar to remove the rear wheel nuts.
• Remove both rear wheels and slide them underneath the side of the vehicle as an additional safety measure.

Step 4: Inspect the Brakes

• Use the safety glasses and inspect both rear rotors for deep grooves, blue heat spots, cracks, or heavy rust.
• Check the calipers, hoses, and piston boots for wet brake-fluid leakage or torn rubber.
• Stop the repair if a caliper leaks, a piston boot is damaged, or one old pad is much thinner than its partner. These conditions can indicate a seized caliper or guide pin.

Step 5: Remove the First Caliper

• Work on one side at a time so the assembled opposite side remains available as a reference.
• Use a 14mm socket and 3/8-inch ratchet to remove the upper and lower caliper guide-pin bolts.
• If a guide pin turns with its bolt, hold the pin with a 17mm combination wrench while using the 14mm socket.
• Lift the caliper away from the pads and support it with the caliper support hook.
• Do not disconnect the brake hose.

Step 6: Remove the Old Pads and Hardware

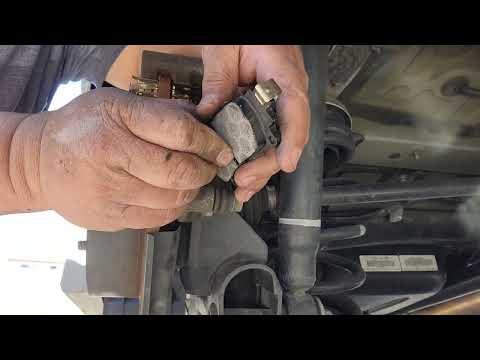

• Remove the inner and outer pads by hand, noting the position of the wear indicator and anti-squeal shims.
• Remove the stainless pad-support hardware by hand.
• Use a small nylon detailing brush and non-chlorinated brake cleaner to clean the caliper-bracket areas where the hardware sits.
• Do not apply grease to the rotor or pad friction material.

Step 7: Check the Guide Pins

• Pull each guide pin outward by hand and confirm that it moves smoothly.
• Inspect the rubber boots for tears and corrosion beneath the boots.
• Apply a thin coat of high-temperature silicone brake grease to a dry guide pin, then reinstall it by hand without trapping air in the boot.
• Do not use petroleum-based grease because it can damage the rubber components.

Step 8: Compress the Caliper Piston

• Place one old brake pad against the piston face.
• Use the brake caliper piston compression tool to push the piston slowly and straight into the caliper bore.
• The piston presses straight inward; it does not need to be rotated.
• Watch the brake-fluid reservoir while compressing the piston. Use the brake fluid suction syringe if the fluid approaches the reservoir opening.
• Stop if the piston binds or requires excessive force. A seized piston requires caliper repair or replacement.

Step 9: Install the New Hardware and Pads

• Install the new rear brake pad hardware into the clean caliper bracket by hand.
• Apply a very thin film of high-temperature silicone brake grease only where the pad ears contact the hardware.
• Transfer or install the correct anti-squeal shims according to the pad set’s supplied positions.
• Install the new inner and outer pads by hand, matching the original wear-indicator position.
• Keep grease off the friction surfaces and rotor.

Step 10: Reinstall the Caliper

• Remove the caliper support hook and lower the caliper over the new pads without twisting the brake hose.
• Start both guide-pin bolts by hand to prevent cross-threading.
• Use a 14mm socket and 3/8-inch torque wrench to tighten both guide-pin bolts to 34 Nm (25 ft-lbs).
• If a pin rotates, hold it with the 17mm combination wrench while tightening its bolt.

Step 11: Repeat on the Opposite Side

• Use the same 14mm socket, 17mm combination wrench, brake caliper piston compression tool, and cleaning supplies to replace the pads on the other rear wheel.
• Compare both completed sides before reinstalling the wheels.

Step 12: Reinstall the Rear Wheels

• Position each wheel on its hub and install the wheel nuts by hand.
• Use the 21mm deep socket and 1/2-inch breaker bar to snug the nuts in a crisscross pattern.
• Use the 3-ton floor jack to raise your Sienna slightly, remove the jack stands, and lower it completely.
• Use the 21mm deep socket and 1/2-inch torque wrench to tighten the wheel nuts in a crisscross pattern to 103 Nm (76 ft-lbs).

Step 13: Seat the Brake Pads

• Before starting the engine, press the brake pedal slowly several times until it becomes firm.
• Do not move your Sienna until the pedal feels firm and consistent.
• Check the brake-fluid level. Add fresh DOT 3 brake fluid only if it is below the specified range.
• Close the reservoir cap securely.

---

✅ After Repair

• ✅ Start the engine and hold firm pressure on the brake pedal for 30 seconds. The pedal should not continue sinking.
• 🔍 Check around both rear calipers and the brake-fluid reservoir for leakage.
• 🛑 Test the brakes at walking speed in a traffic-free area before normal driving.
• 🚗 Unless the pad manufacturer specifies another method, make 6-8 moderate stops from approximately 30 mph to 5 mph. Allow about 30 seconds between stops and avoid coming to a complete stop with hot brakes.
• 🌡️ Drive for several minutes afterward to let the brakes cool. Avoid hard braking for the first 150-200 miles when practical.
• 🔧 Recheck wheel-nut torque to 103 Nm (76 ft-lbs) after approximately 25-50 miles.
• ⚠️ Stop driving if the pedal remains soft, the vehicle pulls while braking, a wheel becomes unusually hot, or grinding continues.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $130-$405 by doing it yourself!

Regional prices vary. Typical U.S. shop labor is $100-$150/hour, and this repair takes a shop approximately 1-1.5 hours.

---
